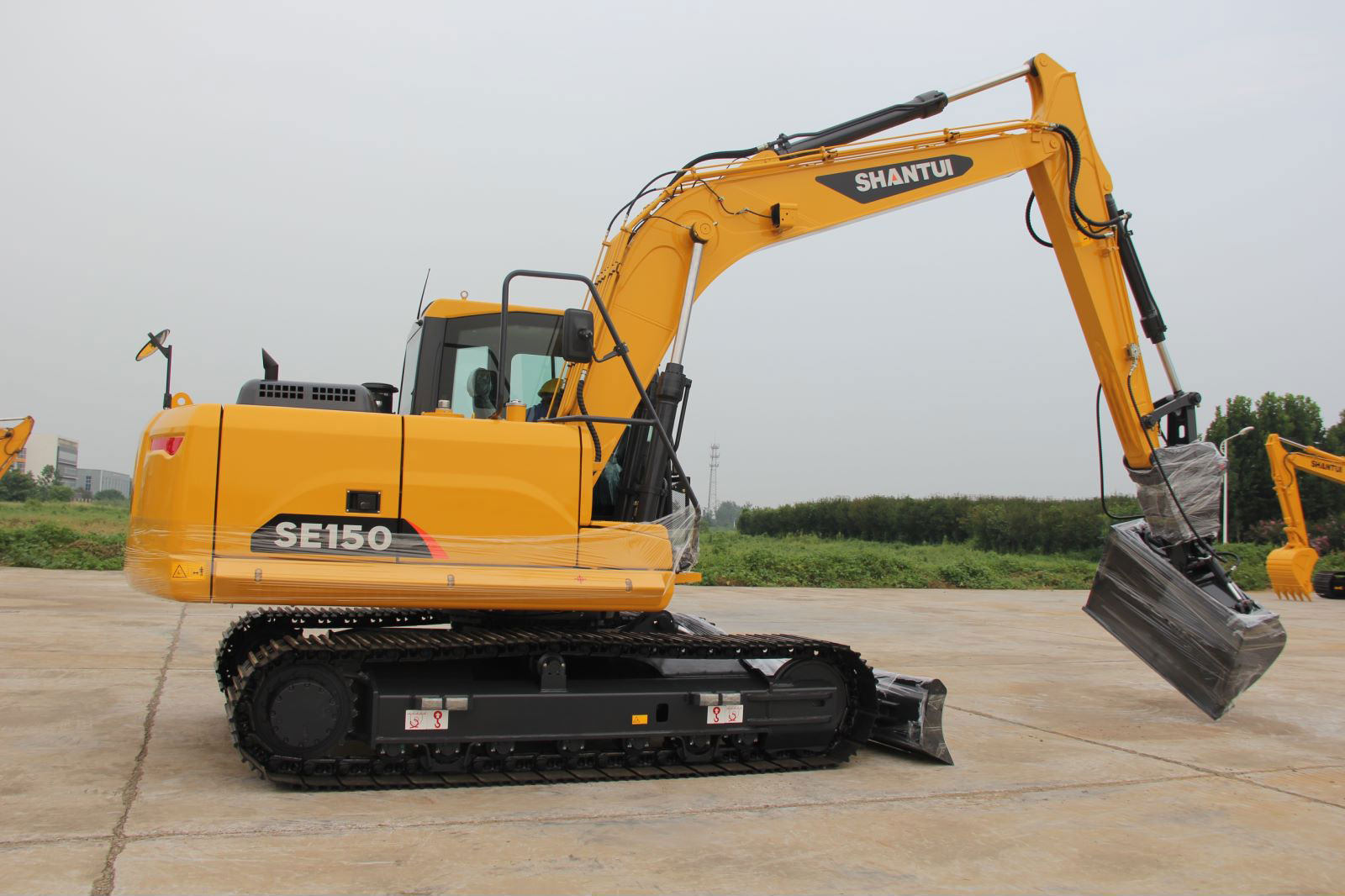

SE150 EXCAVATOR

$14,500.00

Overall Weight

14,500 Kg

Engine Model

Cummins QSF3.8T

Engine Power

86 kW/2200 rpm

DOWNLOAD PRODUCT PDF
Category:

Product Info
Product Description
Videos

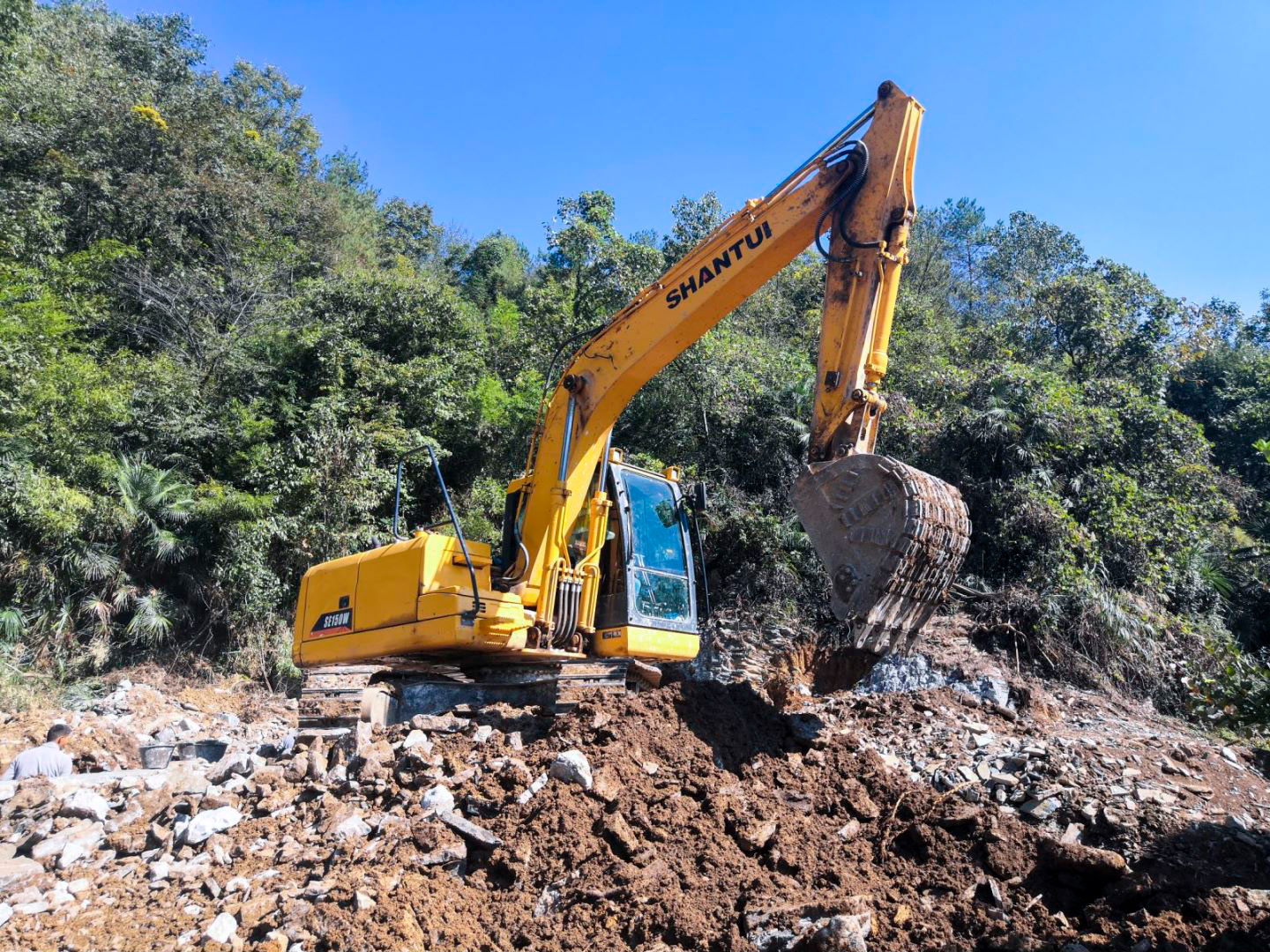

The Shantui SE150 Excavator is a compact and efficient machine, perfect for a variety of mid-sized construction, landscaping, and utility tasks. Equipped with a Cummins QSF3.8T engine delivering 86 kW/2200 rpm, the SE150 offers a blend of power and agility, making it ideal for projects where precision and efficiency are paramount. Its reinforced boom and arm are designed for durability, ensuring the SE150 can handle demanding jobs while maintaining reliable performance. The advanced hydraulic system allows for smooth, precise control, enabling detailed excavation, trenching, and material handling.

The operator’s experience is enhanced by the SE150’s ergonomically designed cab, which provides excellent visibility and reduced noise levels, promoting comfort during long work hours. The user-friendly control interface, along with a multifunctional display, improves operational efficiency and reduces fatigue. The SE150 meets stringent emission standards, reflecting Shantui’s commitment to sustainability. With its impressive fuel efficiency and ease of maintenance, the SE150 is a cost-effective choice for contractors who need a dependable and versatile excavator. Whether in construction, utilities, or landscaping, the Shantui SE150 delivers the performance and reliability required for successful project completion.

ENGINE
Model Cummins QSF3.8T
Type High pressure common rail, turbocharged
No. of cylinder 4
Emission Tier 3 / Stage III
Displacement 3.76L
Power output 86kW /2200rpm
HYDRAULIC SYSTEM
Type Twin axial variable plunger pump
Max. discharge flow 2x130L/min
DIGGING FORCE (ISO6015)
Bucket 105kN
Arm 70kN
BUCKET
Type Backhoe bucket
Capacity 0.45~0.65m3
Width 1068mm
TRAVEL SYSTEM
Type Variable double-piston pump
Track roller 2×7
Carrier roller 2×1
Track shoe 2×44
Travel speed 3.25/5.20km/h
Max. Drawbar pull 118kN
Gradeability 70% (35°)
SWING SYSTEM
Swing motor type Swash plate plunger motor
Swing speed 0~11.3r/min
Brake type Wet double disc, pressure release
REFILL CAPACITIES & LUBRICATIONS
Fuel tank 245L
Cooling system 20L
Engine oil 12L
Hydraulic oil tank 177L
System Capacity 205L
OPERATING WEIGHT AND GROUND PRESSURE
Shoe width 500mm
Ground pressure 43.8kPa
Operating weight 14500kg
SCOPE OF WORK (mm) (BOOM: 4600 mm ARM: 2500 mm)
Max. digging height 8670
Max. dumping height 6210
Max. digging depth 5490
Max. vertical digging depth 4625
Max. depth cut for 2500mm level bottom 5275
Max. digging distance 8325
Max. digging radius at ground level 8195
Min. swing radius of work equipment 2395
DIMENSIONS (mm)
Overall length 7860
Ground contact length (Transportation) 4390
Overall height (to top of boom) 2860
Overall width 2645
Overall height (to top of cab) 2855
Counter weight ground clearance 915
Ground clearance 425
Tail swing radius 2380
Tread 2925
Track length 3645
Track gauge 2000
Track width 2500
Shoe width 500
Bonnet height 2120
Revolving frame width 2645
Distance from swivel center to tail 2375
