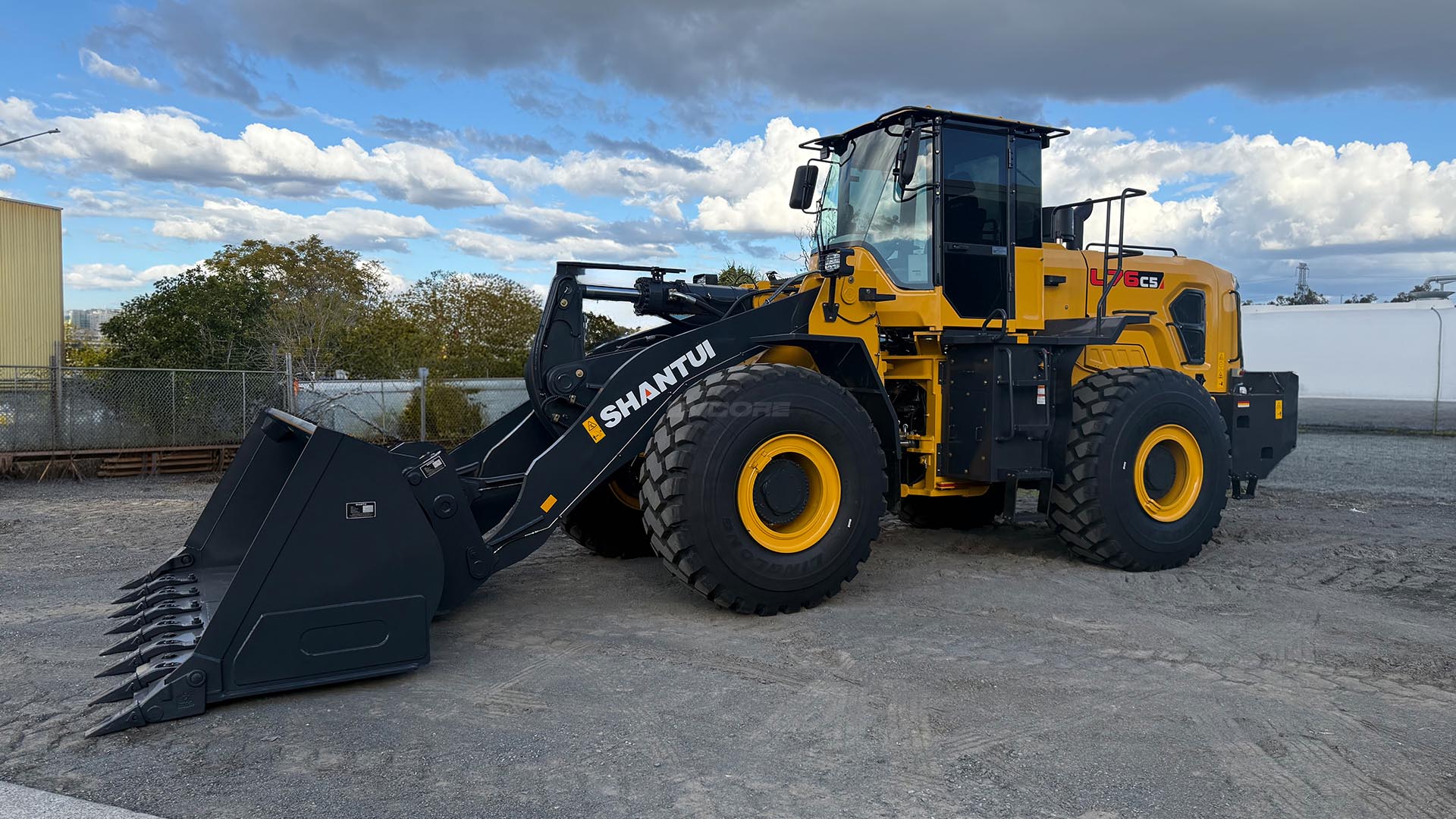

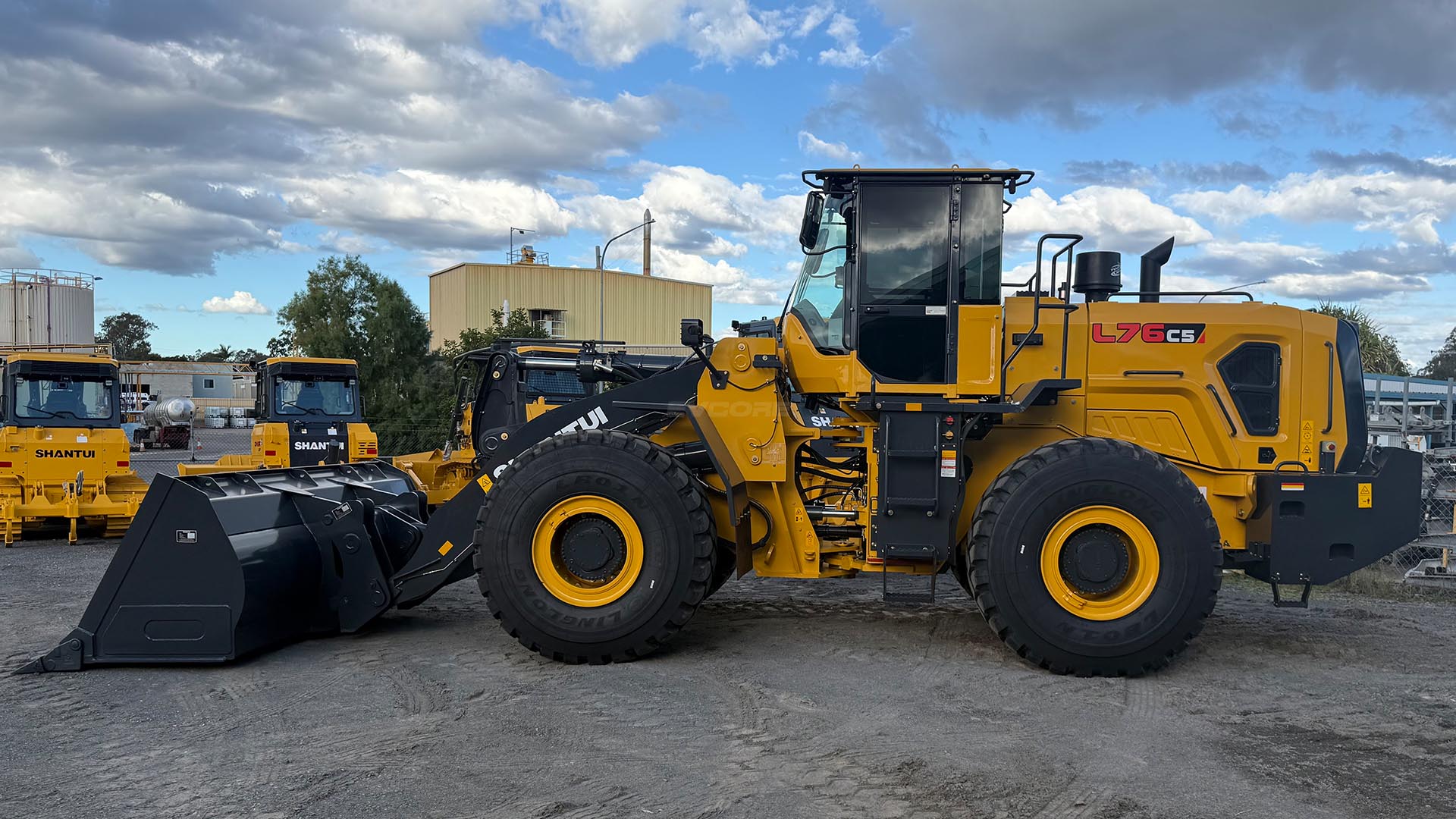

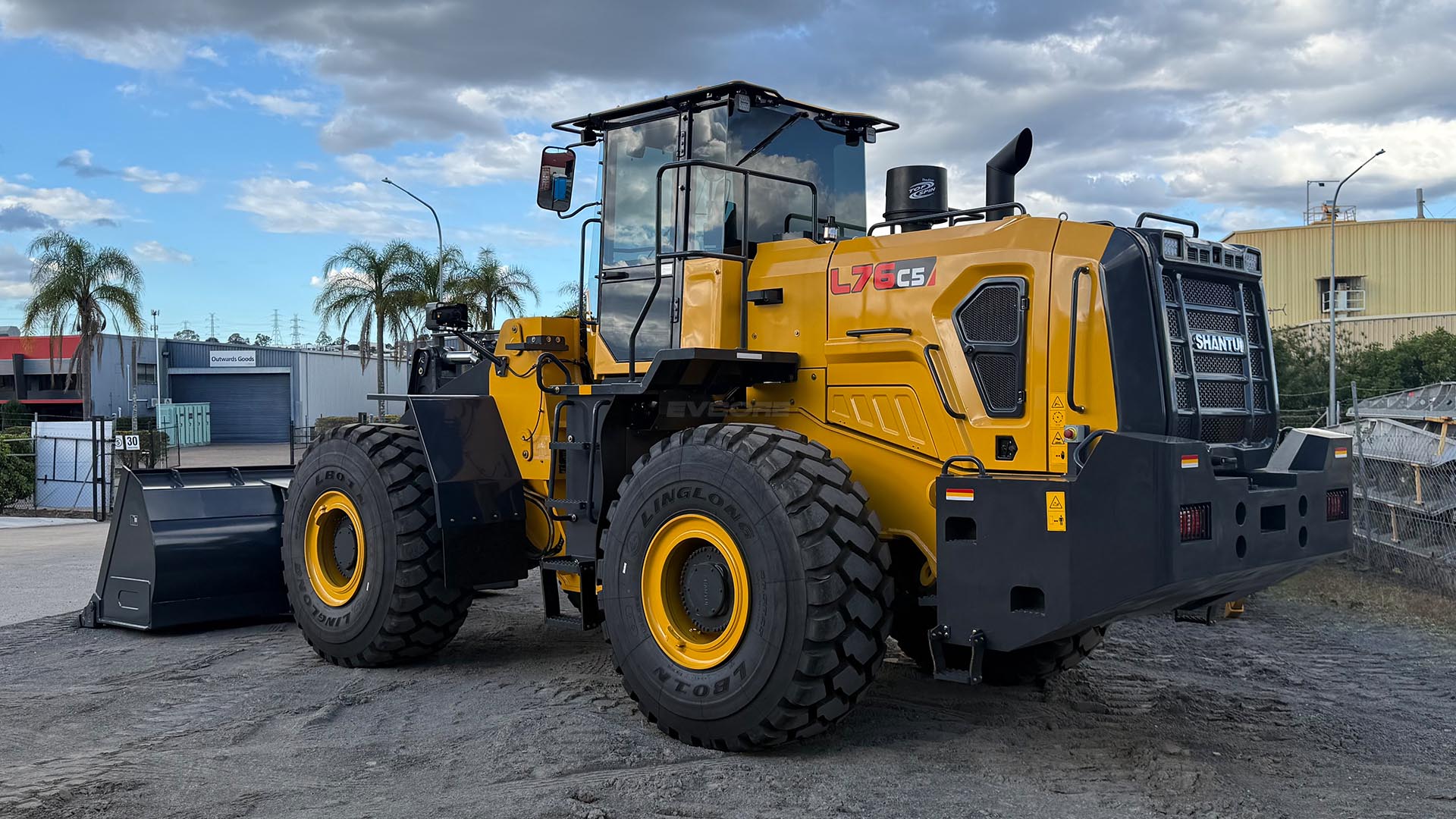

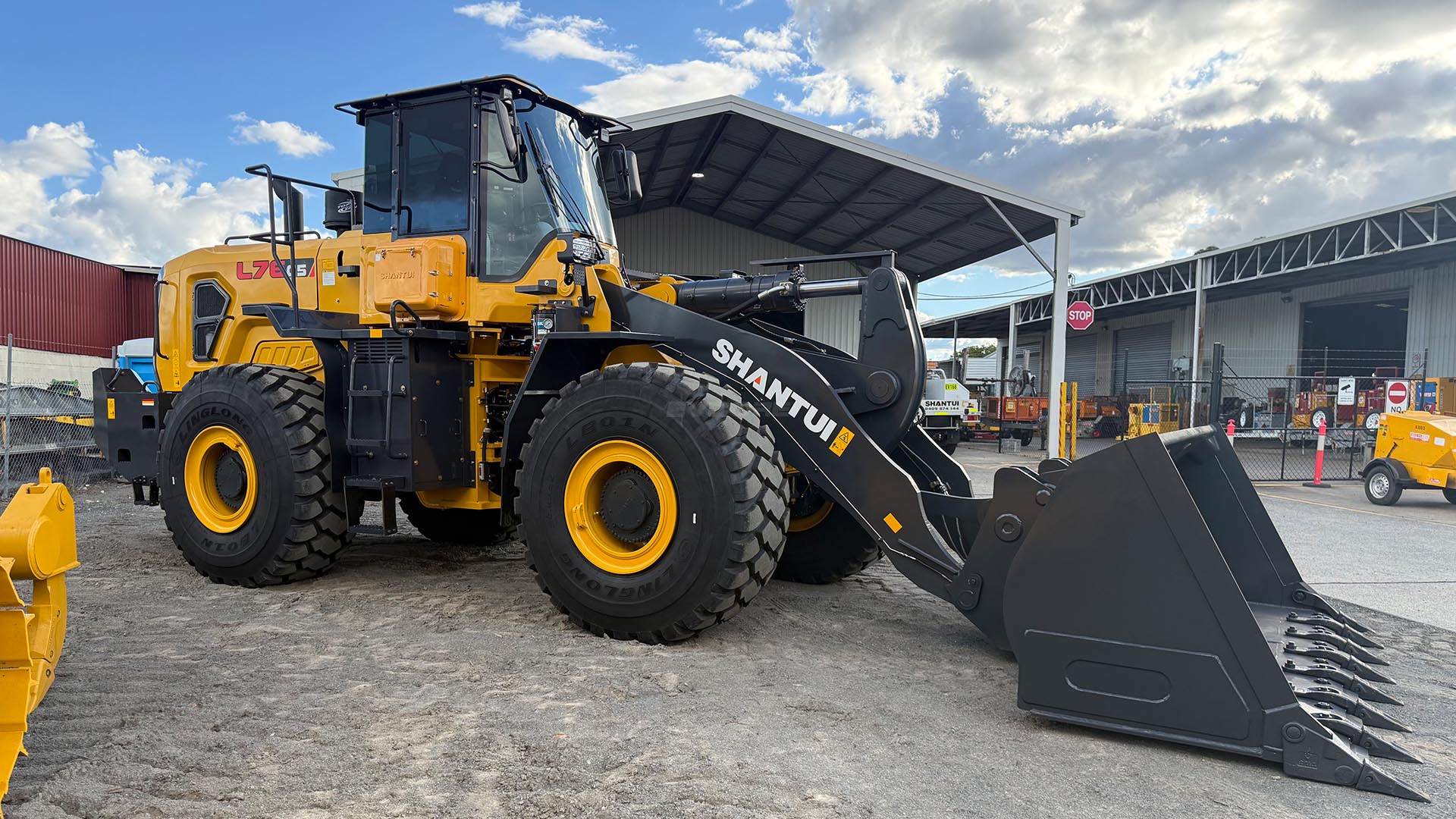

wheel loader

Type your paragraph here

Type your paragraph here


Operating Weight

Type your paragraph here

Bucket capacity

Type your paragraph here

FULL SPECIFICATIONS


Verified Australian-model data shown.

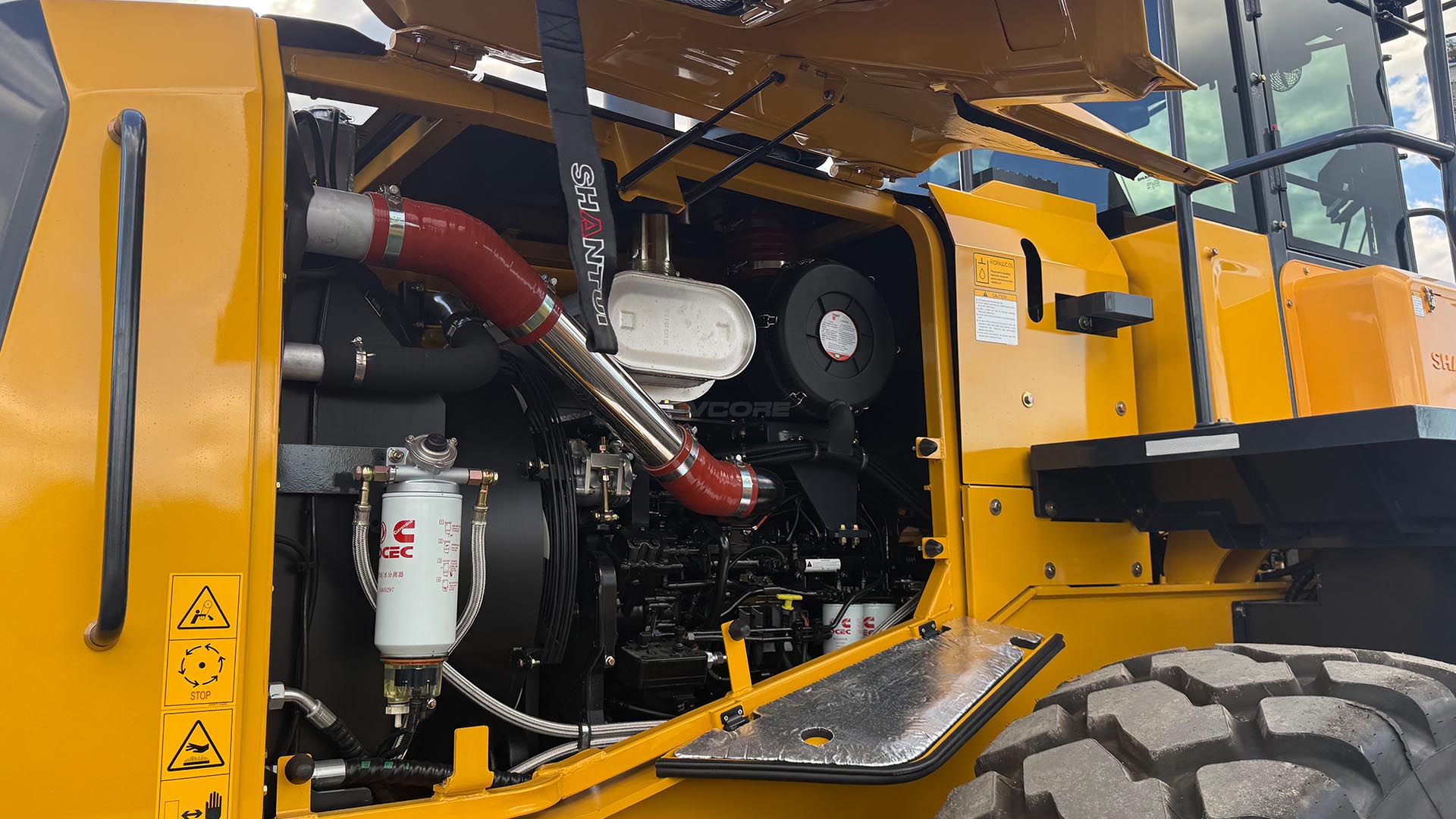

ENGINE
Emission
Tier 3 / Stage III
Model
Cummins QSL8.9-C280-30
Rated Power
209 kW @ 2,200 rpm
Maximum Torque
1,250 N·m
Displacement
8.9 L
Number of Cylinders
6
LOADER ARM PERFORMANCE
Tipping Load – Full Turn
160 KN
Bucket Breakout Force
215 kN
Maximum Dump Angle
45°
Dump Clearance
3,540 mm
Dump Reach
1,220 mm
Maximum Hinge Pin Height
4,800 mm
Maximum Digging Depth
100 mm

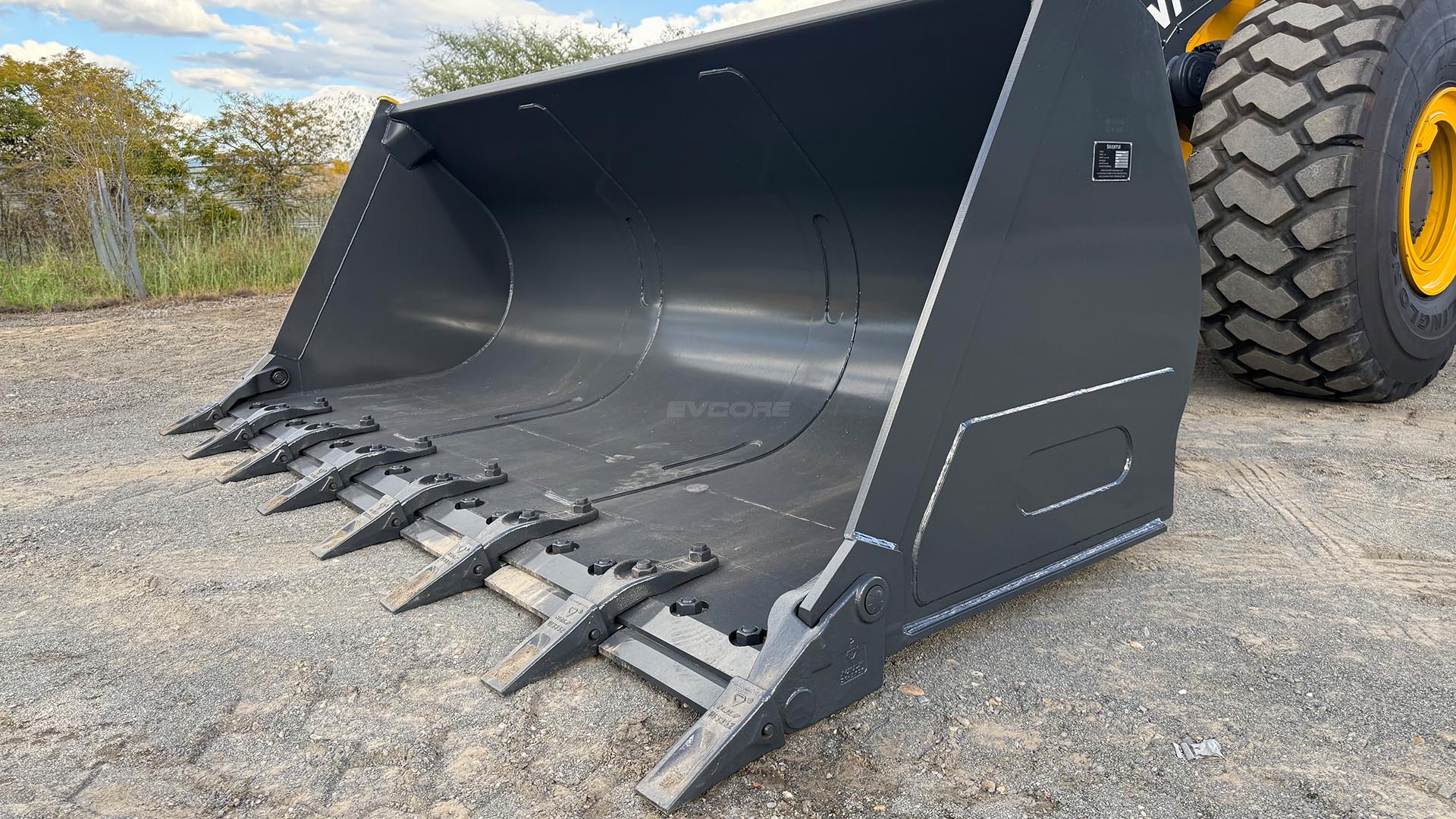

Bucket Capacity
4 m³
Operating Weight
25,600 kg
HYDRAULIC SYSTEM
Main Pump Type
Constant variable dual pump confluence
Main Relief Pressure
25 MPa
Raise Time
5.5 S
Total Cycle Time
10.1 S
BRAKES & TYRES
Service Brake Type
Service Brake Actuation
Air over hydraulic
Parking Brake Type
Parking Brake Actuation
Air brake
Tyre Size
26.5-25
TRANSMISSION
Transmission Type
Electronically controlled fixed shaft
Torque Converter
Single stage, three elements
Maximum Travel Speed – Forward
39.4 km/h
Maximum Travel Speed – Reverse
25.8 km/h
Number of Speeds – Forward
4
Number of Speeds – Reverse
3
AXLES & STEERING
Differential – Front Type
-
Differential – Rear Type
-
Axle Oscillation
±12°
Steering Configuration
Articulated
Steering System Pressure
20 MPa
SERVICE CAPACITIES
Fuel Tank
365 L
Hydraulic Oil Tank
185 L
Engine Oil
21 L
Axles – Each
Transmission
46 L
Antifreeze
80 L
DIMENSIONS
Length
9,445 mm
Width
3,236 mm
Height
3,670 mm
Wheelbase
3,550 mm
Wheel Tread
2,380
Ground Clearance
480 mm
Turn Angle – Either Side
38°
Turning Radius – Outside of Tyre
6,345 mm
Turning Radius – Centre of Tyre
6,170 mm
Turning Radius – Bucket Carry
7,560 mm

DOWNLOAD PRODUCT BROCHURE

Keep the current specification sheet available as a direct PDF download.

Built for high-volume material handling


Type your paragraph here

HIGH PERFORMANCE BACKED BY EVCORE SUPPORT

Add Your Heading Text Here

Add Your Heading Text Here

Add Your Heading Text Here

Add Your Heading Text Here

Add Your Heading Text Here

Add Your Heading Text Here

Videos & Walkarounds


Backed by EVCORE’s Australia-wide team of expert technicians, keeping your machines working wherever the job takes you..

What our customers are saying


The L76 has been a good addition to our operation. It is comfortable to run, has plenty of power and handles the heavier loading work without any fuss. We have put it to work shifting plenty of material and it has performed well from day one. Evcore have also been easy to deal with and always happy to help when we need them.

- Adam Taylor

Support that keeps you moving


Every Shantui machine is supported by EVCORE's national service network, with trained technicians and locally stocked parts to get your machines working as quickly as possible.

National-Service

NATIONAL
SERVICE

Trained-Technicians

TRAINED
TECHNICIANS

Local-Parts

LOCAL
PARTS

On-Site-Support

ON-SITE
SUPPORT

Attachments


Get more from your machine with robust, versatile attachments designed to expand capability across construction, agriculture and material-handling applications. Hydraulic quick-hitch compatibility enables fast changeovers and helps keep your machine productive. Selected attachments can also be modified to suit other machinery brands.

Enquire about the L76 Wheel Loader


For pricing and more information contact the EVCORE team.

Enquire about the L76 Wheel Loader


For pricing and more information contact the EVCORE team.
