FULL SPECIFICATIONS


Verified Australian-model data shown.

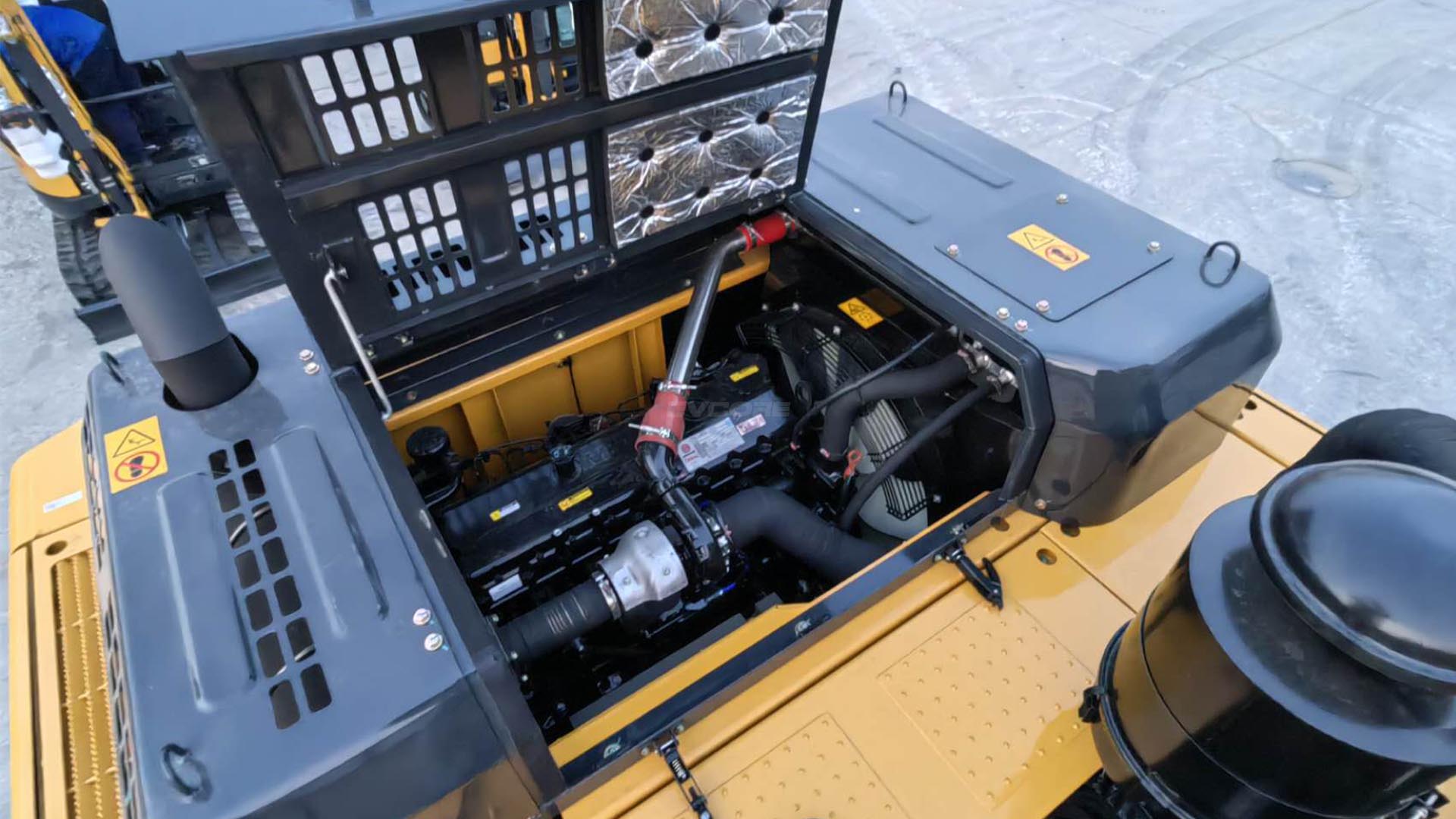

ENGINE
Engine Model
Weichai WP10H
Engine Type
High-pressure common rail, water-cooled, six-cylinder inline, turbocharged
Number of Cylinders / Bore x Stroke
6 / 116 x 139 mm
Emission Standard
Tier 3 / Stage III
Displacement
9.5 L
Power Output
247 kW @ 2,000 rpm

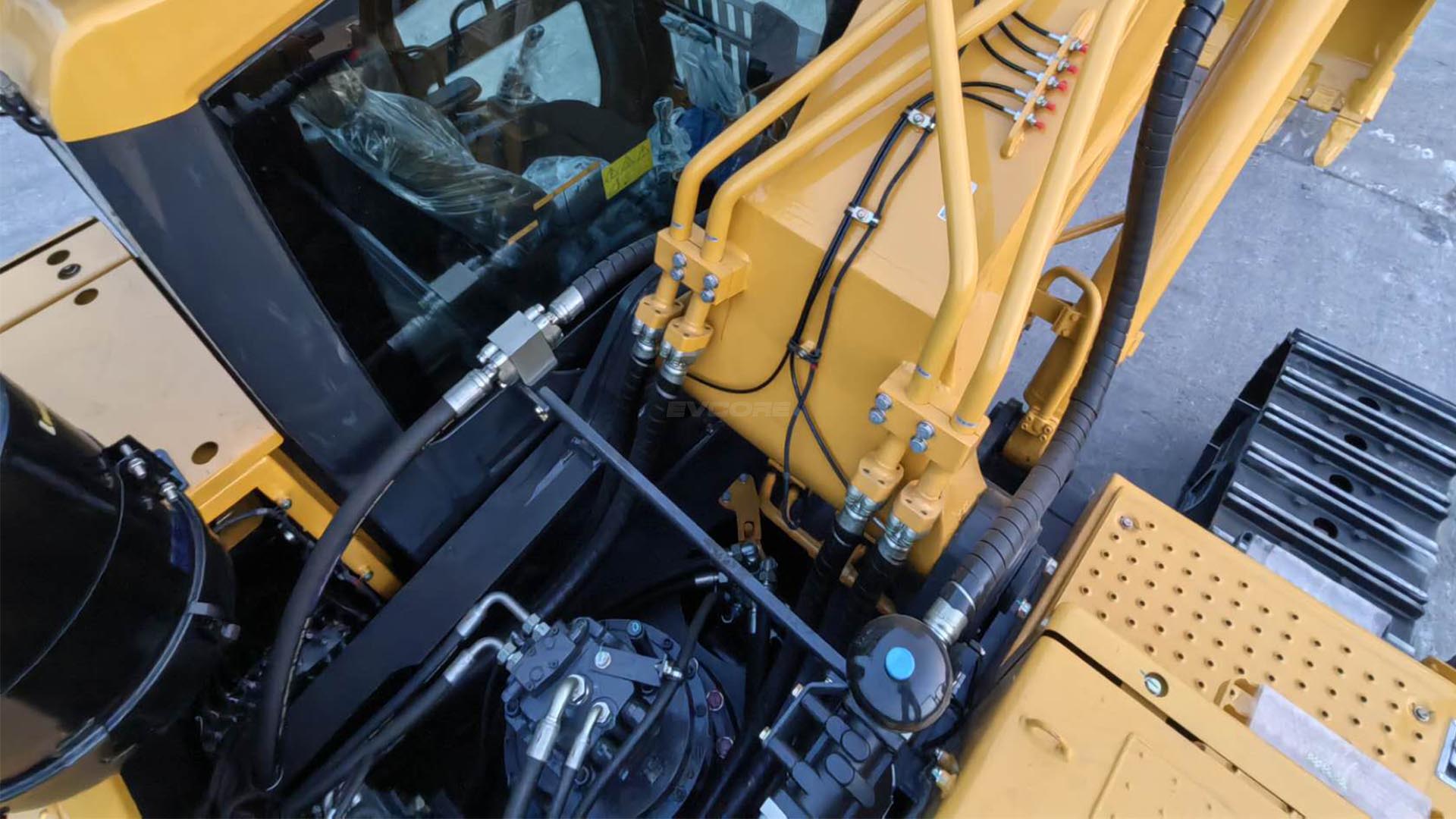

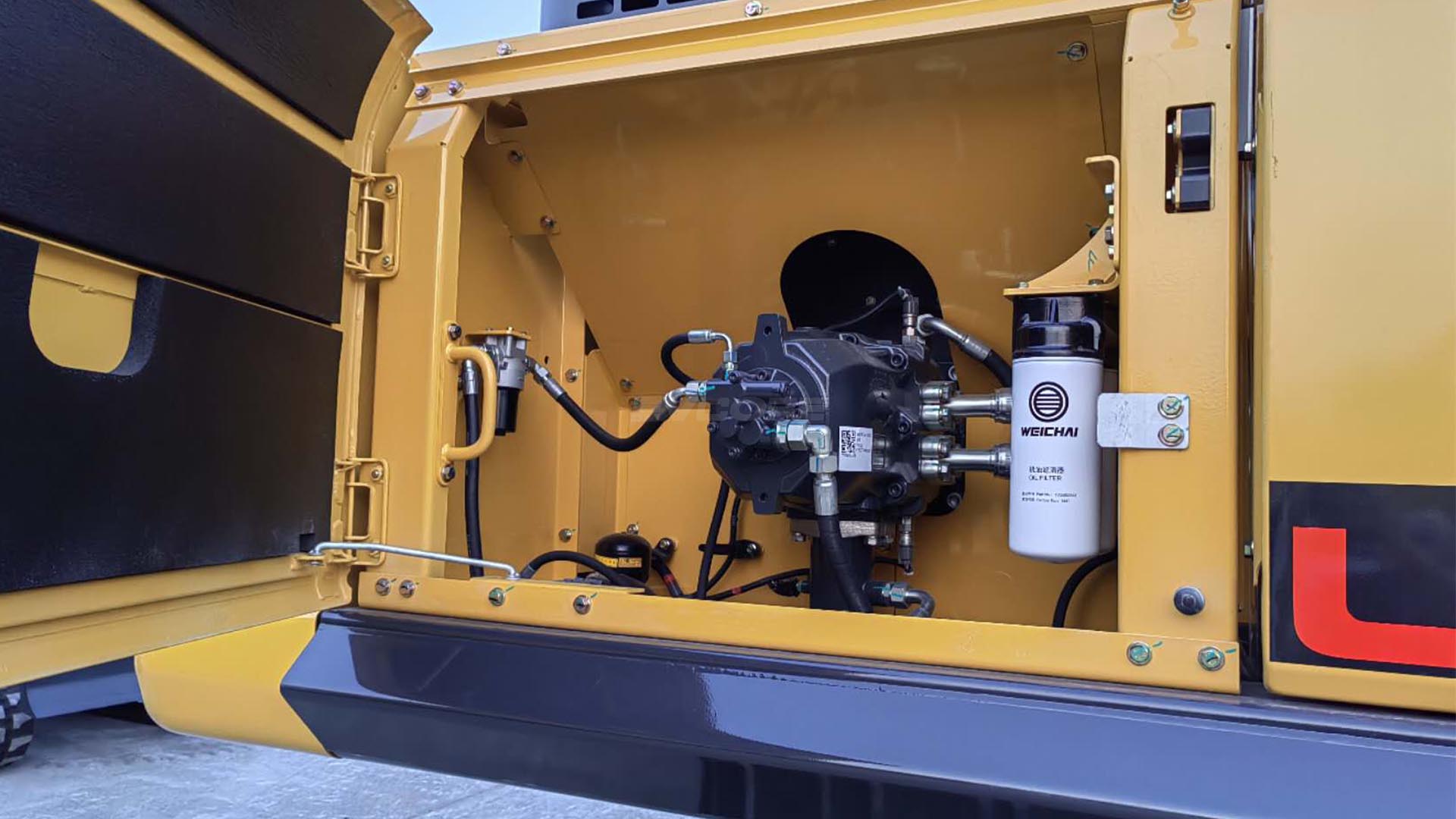

HYDRAULIC SYSTEM
Hydraulic System Type
Variable double piston pump plus gear pump
Maximum Hydraulic Flow / Discharge Flow
2 x 340 L/min
DIGGING FORCE
Bucket Digging Force
254 kN
Arm Digging Force
210 kN
BUCKET
Bucket Type
Backhoe bucket
Bucket Capacity
1.93 m³
Bucket Width
1,671 mm
TRAVEL SYSTEM
Travel System Type
Axial variable plunger motor
Track Rollers
9 x 2
Carrier Rollers
2 x 2
Track Shoes
49 x 2
Travel Speed
Maximum Drawbar Pull / Traction Force
315 kN
Gradeability
70% (35°)
REFILL CAPACITY
Fuel Tank Capacity
620 L
Cooling System Capacity
30 L
Engine Oil Capacity
30 L
Hydraulic Oil Tank Capacity
300 L
Hydraulic System Capacity
420 L
OPERATING WEIGHT
Shoe Width
600 mm
Ground Pressure
68.3 kPa
Operating Weight
39,000 kg
DIMENSIONS
Transport Length (Arm Lowered)
Overall Length
11,265 mm
Ground Contact Length (Transport)
6,930 mm
Overall Height (Top of Canopy)
Overall Height (Top of Boom)
3,800 mm
Overall Width
3,200 mm
Overall Height (Top of Cab)
3,305 mm
Undercarriage Width (Retracted)
Undercarriage Width (Extended)
Undercarriage Length
Upper Body Width (Zero Tail)
Counterweight Ground Clearance
1,350 mm
Minimum Ground Clearance
580 mm
Tail Swing Radius
3,520 mm
Tread
4,112 mm
Track Length
5,095 mm
Track Gauge
2,600 mm
Track Width
3,200 mm
Bonnet Height
2,920 mm
Revolving Frame Width
3,190 mm
Swivel Centre to Tail Distance
3,465 mm
WORKING RANGE
Maximum Digging Height
10,160 mm
Maximum Dumping Height
6,925 mm
Maximum Digging Depth
7,100 mm
Maximum Vertical Digging Depth
6,480 mm
Maximum Depth Cut at 2,500 mm Level Bottom
6,855 mm
Maximum Digging Distance
10,855 mm
Maximum Digging Radius at Ground Level
10,855 mm
Minimum Swing Radius of Work Equipment
4,430 mm
Maximum Dozer Lift Height
Maximum Dozer Digging Depth
Maximum Boom Offset (LH)
Maximum Boom Offset (RH)
Boom Swing Angle (LH / RH)
SWING SYSTEM
Swing Motor Type
Swash plate plunger motor
Swing Speed
0-10.5 r/min
Brake Type
Pressure release mechanical braking
