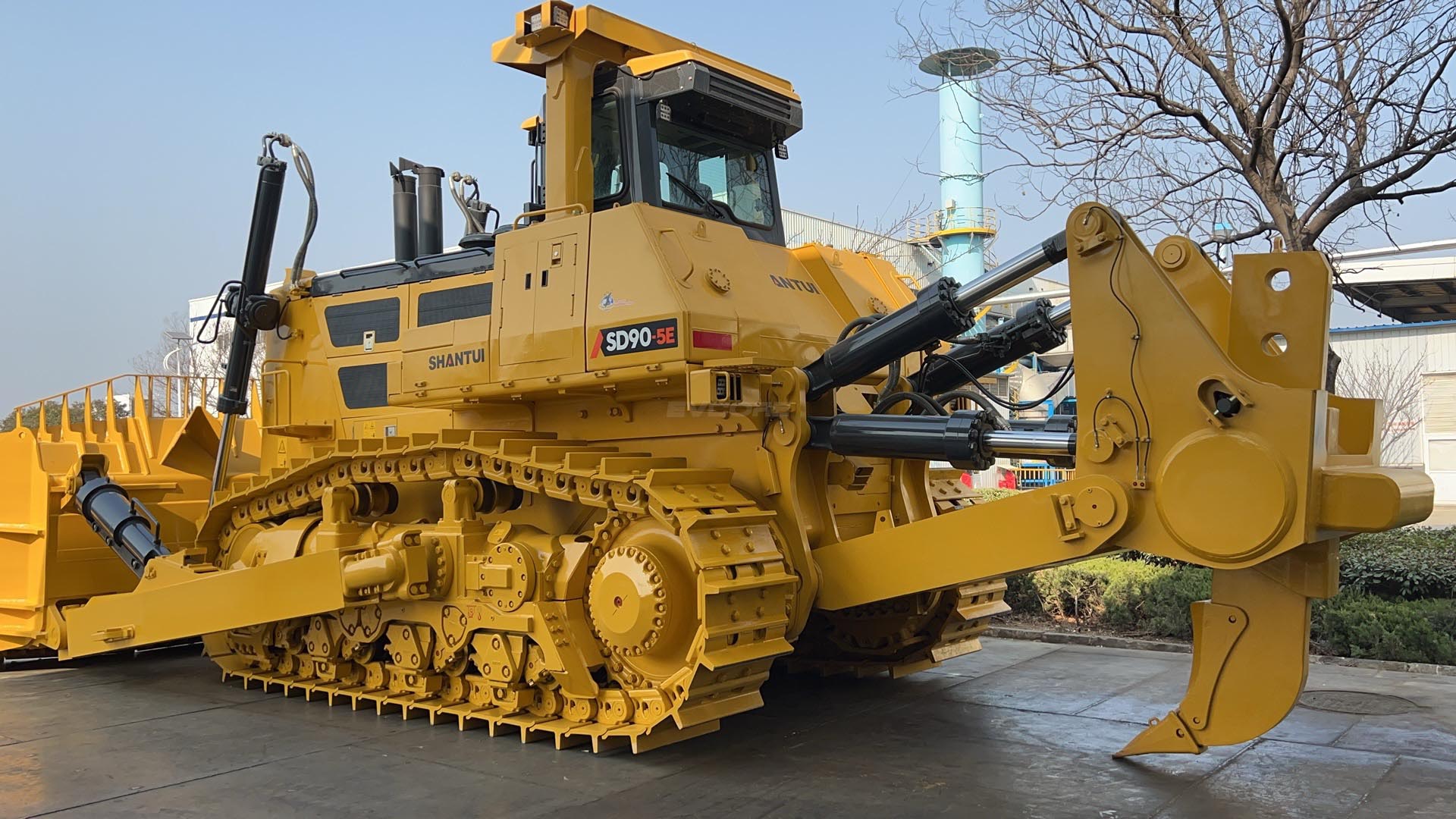

Bulldozer

Type your paragraph here

Type your paragraph here


Operating Weight

Type your paragraph here

Blade capacity

Type your paragraph here

FULL SPECIFICATIONS


Verified Australian-model data shown.
ENGINE
Engine
Cummins QST30
Emission
China III
Rated Revolution
2,100 rpm
Horse Power
950 HP
Gross Power
708 kW @ 2,100 rpm
Net Power
900 hp (671 kW) @ 2,100 rpm
Number of Cylinders
12 / 140 mm × 165 mm
Displacement
30.5 L
Maximum Torque
4,191 Nm @ 1,300 rpm
Minimum Fuel Consumption
Cooling System
Smart hydraulic control fan
DRIVE SYSTEM
Drive Type
powershift
Drive System
Torqflow transmission
System Overflow Pressure
Travel Speed Forward
0–3.5 / 0–6.3 / 0–10.9 km/h
Travel Speed Reverse
0–4.7 / 0–8.4 / 0–14.3 km/h
Maximum Theoretical Traction Force
Torque Converter
3-element, 1-stage, 1-phase with lock-up clutch
Transmission
Planetary gear, multiple-disc clutch, hydraulically actuated and force lubricated
Central / Bevel Gear Drive
Steering
Steering Clutch
Wet multiple-disc steering clutches, spring actuated and hydraulically released
Braking System
Brake Clutch
Wet multiple-disc steering clutches, spring actuated and hydraulically released
Final Drive
Primary spur gear plus primary planetary reduction
CHASSIS SYSTEM
Chassis Type
Oscillation with equaliser bar and forward-mounted pivot shafts with K-type bogies
Track Shoe Type
Oscillation with equaliser bar and forward-mounted pivot shafts with K-type bogies
Track Gauge
2,770 mm
Width of Track Shoe
710 mm
Track Grounding Length
Track Grounding Area
64,184 cm²
Number of Track Shoes
41 per side
Grounding Pressure
143.7 kPa
Number of Carrier Rollers
2 per side
Number of Track Rollers
7 per side
Track Pitch
317.5 mm
REFILL CAPACITY
Fuel Capacity
1,638 L
Coolant Capacity
270 L
Engine Oil Capacity
132 L
Hydraulic Oil Tank Capacity
Hydraulic Work Oil Capacity
Transmission Oil Capacity
Drive Axle Oil Capacity
Final Drive Oil Capacity
75 L per side
Transfer Case Oil Capacity
OPERATING WEIGHT
Operating Weight Standard
106,260 kg
Operating Weight Traction Frame
Operating Weight Ripper
Operating Weight Winch
Operating Weight Cabin and Traction Frame
Operating Weight Cabin and Draw Bar
Operating Weight Cabin and Ripper
112,103 Kg
Operating Weight ROPS Canopy and Traction Frame
Operating Weight ROPS Canopy and Ripper
Operating Weight ROPS Shed and Traction Frame
Operating Weight ROPS Shed and Ripper
BLADE
Blade Type
Semi-U blade, heavy duty
Blade Capacity
39 m³
Maximum Lifting Height of Blade
1,620 mm
Maximum Digging Depth of Blade
1,010 mm
Blade Digging Angle
52°
Blade Width
5,265 mm
Blade Height
2,690 mm
Maximum Blade Turning Angle on Ground
Maximum Blade Tilt Height
DIMENSIONS
Machine Height
4,590 mm
Track Grouser Height
102 mm
Ground Clearance
655 mm
Machine Length With Air Conditioning
Machine Length With Draw Bar
Machine Length Without Draw Bar
11,500 mm
Machine Length With Ripper
Machine Length Without Ripper
Overall Machine Length
Machine Width at Maximum Blade Angle
Track Shoes Outside Width
3,480 mm
Left Track Shoe to Blade Clearance
Right Track Shoe to Blade Clearance
Minimum Turning Radius
RIPPER
Ripper Type
Single shank ripper
Ripper Weight
5,843 kg
Maximum Ripping Depth
1,672 mm
Maximum Ripper Lifting Height
1,301 mm
Ripper Length at Deepest Ripping
3,121 mm
Ripper Length at Highest Position
Ripper Width
1,770 mm
Ripper Tilt Angle at Highest Position
Ripping Width
Ripper Tooth Width
Distance Between Ripper Teeth
Ripper Departure Angle
