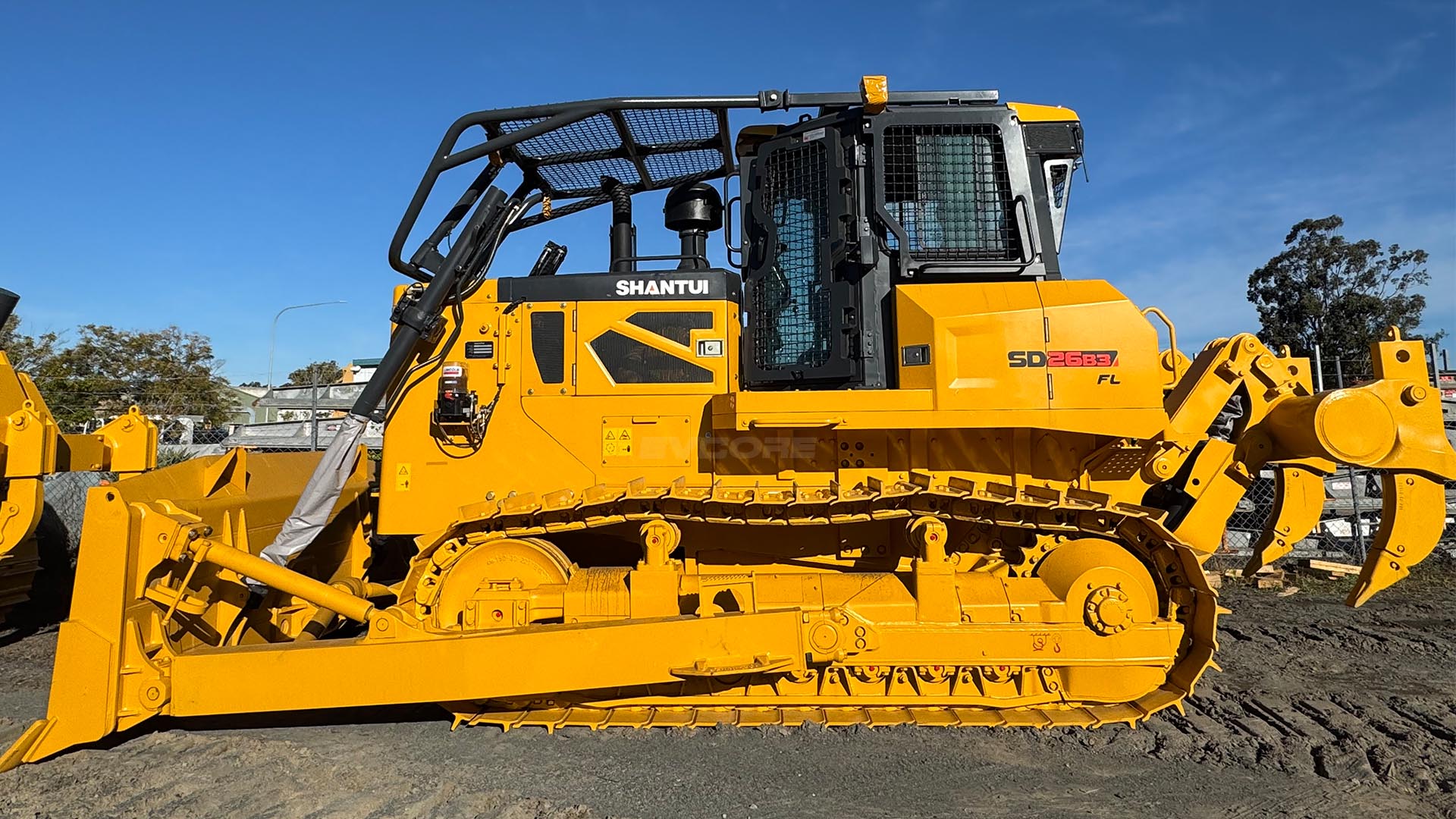

Bulldozer

Type your paragraph here

Type your paragraph here


Operating Weight

Type your paragraph here

Blade capacity

Type your paragraph here

FULL SPECIFICATIONS


Verified Australian-model data shown.
ENGINE
Engine
Cummins NT855-C280
Emission
China I
Rated Revolution
1,850 rpm
Horse Power
251 HP
Gross Power
187 kW
Net Power
175 kW
Number of Cylinders
6 cylinders, 140 mm × 152 mm
Displacement
14.0 L
Maximum Torque
1,085 Nm @ 1,300 rpm
Minimum Fuel Consumption
Cooling System
Mechanical fan
DRIVE SYSTEM
Drive Type
powershift
Drive System
Torqflow transmission, 3 forward and 3 reverse gears
System Overflow Pressure
Travel Speed Forward
3.7 / 6.7 / 11.5 km/h
Travel Speed Reverse
4.4 / 7.9 / 13.6 km/h
Maximum Theoretical Traction Force
497 kN
Torque Converter
3-element, single stage, 1-phase
Transmission
3 forward and 3 reverse gears
Central / Bevel Gear Drive
Spiral bevel gear, single-stage speed reduction, splash lubrication
Steering
Steering Clutch
Wet multiple disc, disc spring loaded, hydraulically actuated and hand operated
Braking System
Brake Clutch
Wet contracting band, foot operated
Final Drive
Spur gear double reduction, splash lubrication
CHASSIS SYSTEM
Chassis Type
Swing-type sprayed beam with equalizer-bar suspended structure
Track Shoe Type
Single grouser
Track Gauge
2,000 mm
Width of Track Shoe
560 / 610 / 660 mm
Track Grounding Length
3,050 mm
Track Grounding Area
38,317 cm²
Number of Track Shoes
41 pcs per side
Grounding Pressure
62 kPa
Number of Carrier Rollers
2 pcs per side
Number of Track Rollers
7 pcs per side
Track Pitch
216 mm
REFILL CAPACITY
Fuel Capacity
480 L
Coolant Capacity
79 L
Engine Oil Capacity
45 L
Hydraulic Oil Tank Capacity
110 L
Hydraulic Work Oil Capacity
Transmission Oil Capacity
122 L
Drive Axle Oil Capacity
Final Drive Oil Capacity
82 L
Transfer Case Oil Capacity
OPERATING WEIGHT
Operating Weight Standard
24,200 kg
Operating Weight Traction Frame
Operating Weight Ripper
Operating Weight Winch
Operating Weight Cabin and Traction Frame
Operating Weight Cabin and Draw Bar
Operating Weight Cabin and Ripper
26,824 Kg
Operating Weight ROPS Canopy and Traction Frame
Operating Weight ROPS Canopy and Ripper
Operating Weight ROPS Shed and Traction Frame
Operating Weight ROPS Shed and Ripper
BLADE
Blade Type
Semi-U
Blade Capacity
7 m³
Maximum Lifting Height of Blade
1,210 mm
Maximum Digging Depth of Blade
540 mm
Blade Digging Angle
55° ±3°
Blade Width
3,642 mm
Blade Height
1,580 mm
Maximum Blade Turning Angle on Ground
Maximum Blade Tilt Height
DIMENSIONS
Machine Height
Track Grouser Height
Ground Clearance
Machine Length With Air Conditioning
Machine Length With Draw Bar
5,980 mm
Machine Length Without Draw Bar
Machine Length With Ripper
Machine Length Without Ripper
Overall Machine Length
Machine Width at Maximum Blade Angle
Track Shoes Outside Width
2,560 mm
Left Track Shoe to Blade Clearance
Right Track Shoe to Blade Clearance
Minimum Turning Radius

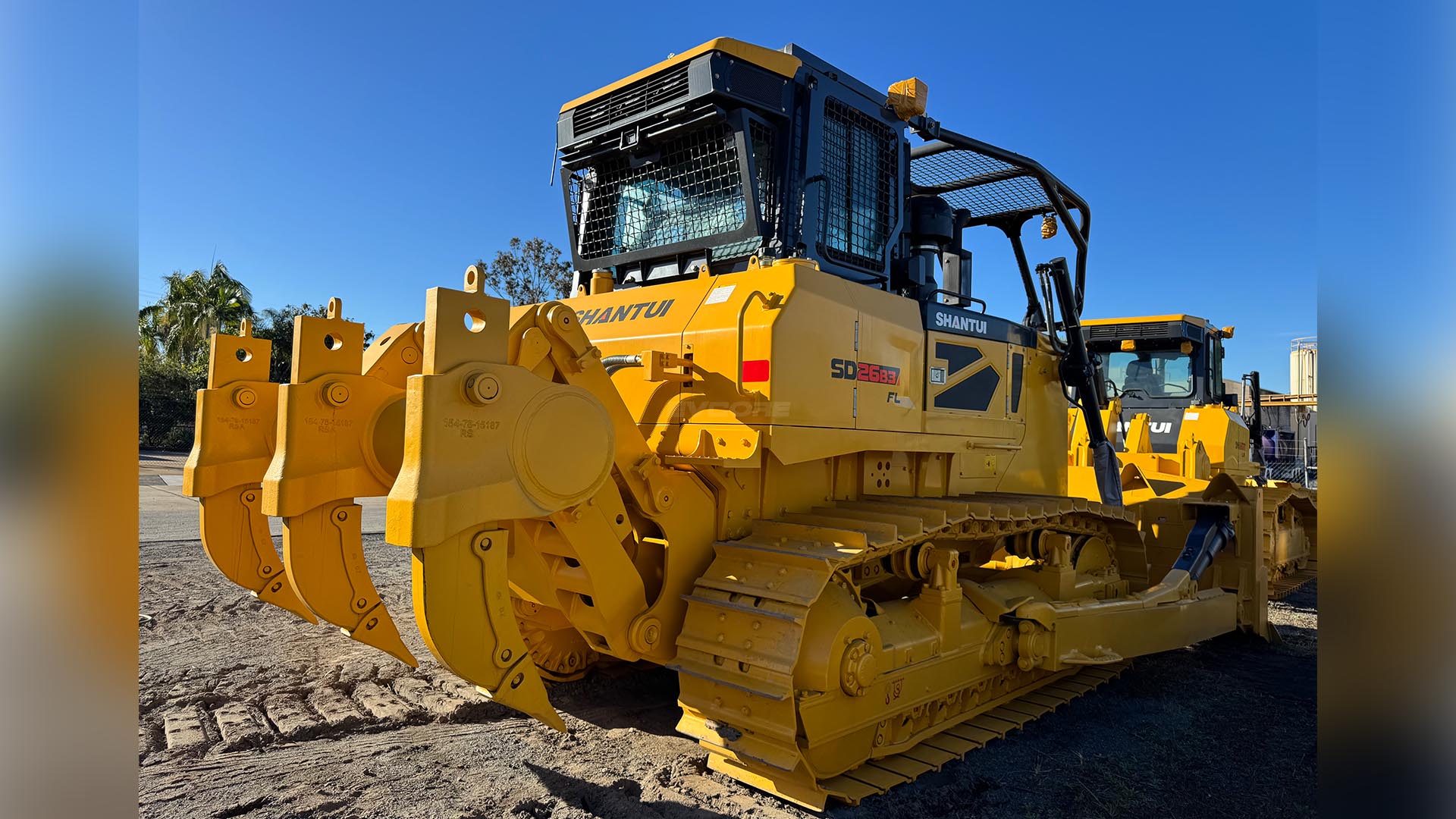

RIPPER
Ripper Type
Three-shank ripper | Single ripper
Ripper Weight
Three shank: 2,624 kg | Single: 2,560 kg
Maximum Ripping Depth
Three shank: 666 mm | Single: 695 mm
Maximum Ripper Lifting Height
Three shank: 555 mm | Single: 515 mm
Ripper Length at Deepest Ripping
Three shank: 1,781 mm | Single: 2,194 mm
Ripper Length at Highest Position
Ripper Width
Three shank: 2,158 mm | Single: 1,380 mm
Ripper Tilt Angle at Highest Position
Ripping Width
2,000 mm
Ripper Tooth Width
Distance Between Ripper Teeth
930 mm
Ripper Departure Angle
25.5°
