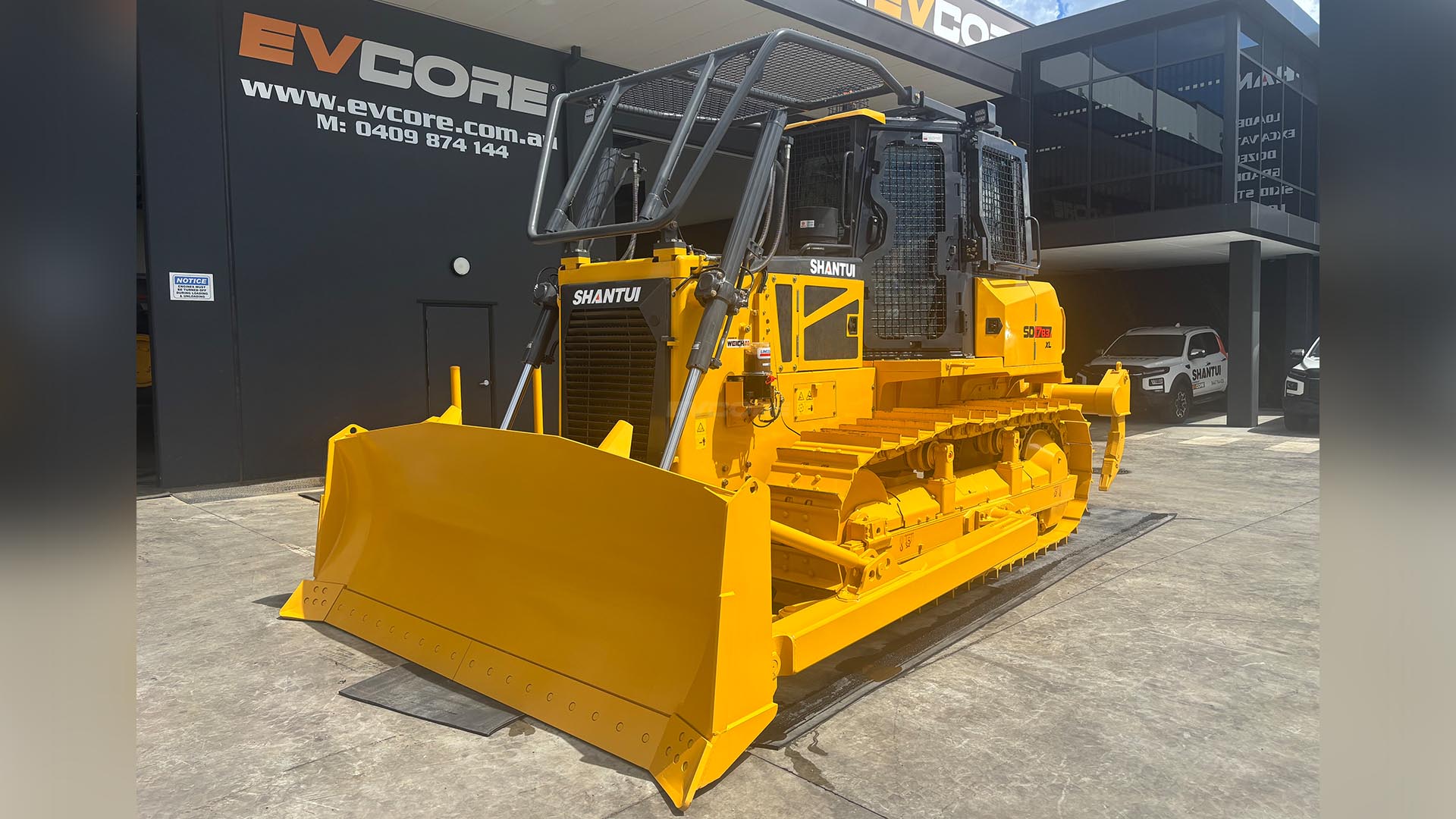

Bulldozer

Type your paragraph here

Type your paragraph here


Operating Weight

Type your paragraph here

Blade capacity

Type your paragraph here

FULL SPECIFICATIONS


Verified Australian-model data shown.
ENGINE
Engine
Weichai WD10G190E214
Emission
China-III
Rated Revolution
1,900 rpm
Horse Power
188 HP
Gross Power
140 kW @ 1,900 rpm
Net Power
127 kW
Number of Cylinders
Displacement
9.726 L
Maximum Torque
900 Nm @ 1,400-1,600 rpm
Minimum Fuel Consumption
Cooling System
Mechanical fan
DRIVE SYSTEM
Drive Type
powershift
Drive System
Torqflow transmission, 3 forward and 3 reverse gears
System Overflow Pressure
Travel Speed Forward
0-3.5 km/h, 0-6.2 km/h, 0-10.6 km/h
Travel Speed Reverse
0-4.5 km/h, 0-8 km/h, 0-13.1 km/h
Maximum Theoretical Traction Force
257 kN
Torque Converter
3-element, single stage, 1-phase
Transmission
Torqflow transmission, 3 forward and 3 reverse gears
Central / Bevel Gear Drive
Spiral bevel gear, single-stage speed reduction, splash lubrication
Steering
Steering Clutch
Independent track drive for pivot steering and steering under load
Braking System
Regular closed multi-disk brake
Brake Clutch
Final Drive
Primary spur gear and primary planetary reduction
CHASSIS SYSTEM
Chassis Type
Swing-type sprayed beam with equalizer-bar suspended structure
Track Shoe Type
XL: Single grouser | LGP: Wetland type
Track Gauge
XL: 1,880 mm | LGP: 2,430 mm
Width of Track Shoe
XL: 510 / 560 / 610 mm | LGP: 1,100 / 950 mm
Track Grounding Length
XL: 2,635 mm | LGP: 2,935 mm
Track Grounding Area
29,512 cm² | 64,570 cm²
Number of Track Shoes
XL: 39 pcs per side | LGP: 42 pcs per side
Grounding Pressure
XL: 59 kPa | LGP: 27 kPa
Number of Carrier Rollers
2 pcs per side
Number of Track Rollers
7 pcs per side
Track Pitch
203 mm
REFILL CAPACITY
Fuel Capacity
338 L
Coolant Capacity
56 L
Engine Oil Capacity
24 L
Hydraulic Oil Tank Capacity
70 L
Hydraulic Work Oil Capacity
Transmission Oil Capacity
52 L
Drive Axle Oil Capacity
70 L
Final Drive Oil Capacity
XL: 21 L per side | LGP: 25 L per side
Transfer Case Oil Capacity
OPERATING WEIGHT
Operating Weight Standard
XL: 17,500 kg | LGP: 19,200 kg
Operating Weight Traction Frame
Operating Weight Ripper
Operating Weight Winch
Operating Weight Cabin and Traction Frame
Operating Weight Cabin and Draw Bar
Operating Weight Cabin and Ripper
XL: 19,131 kg | LGP: 20,831 kg
Operating Weight ROPS Canopy and Traction Frame
Operating Weight ROPS Canopy and Ripper
Operating Weight ROPS Shed and Traction Frame
Operating Weight ROPS Shed and Ripper

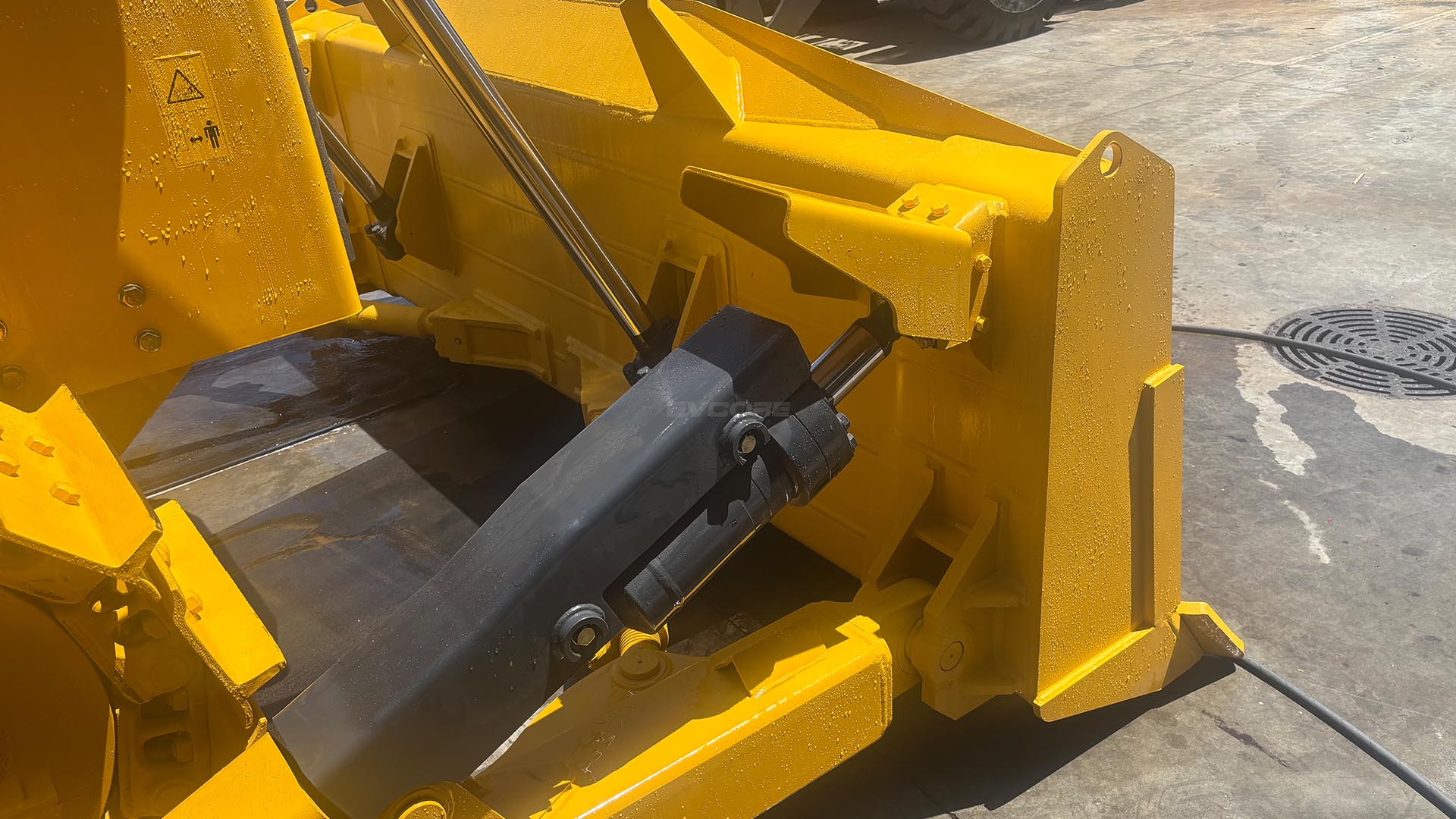

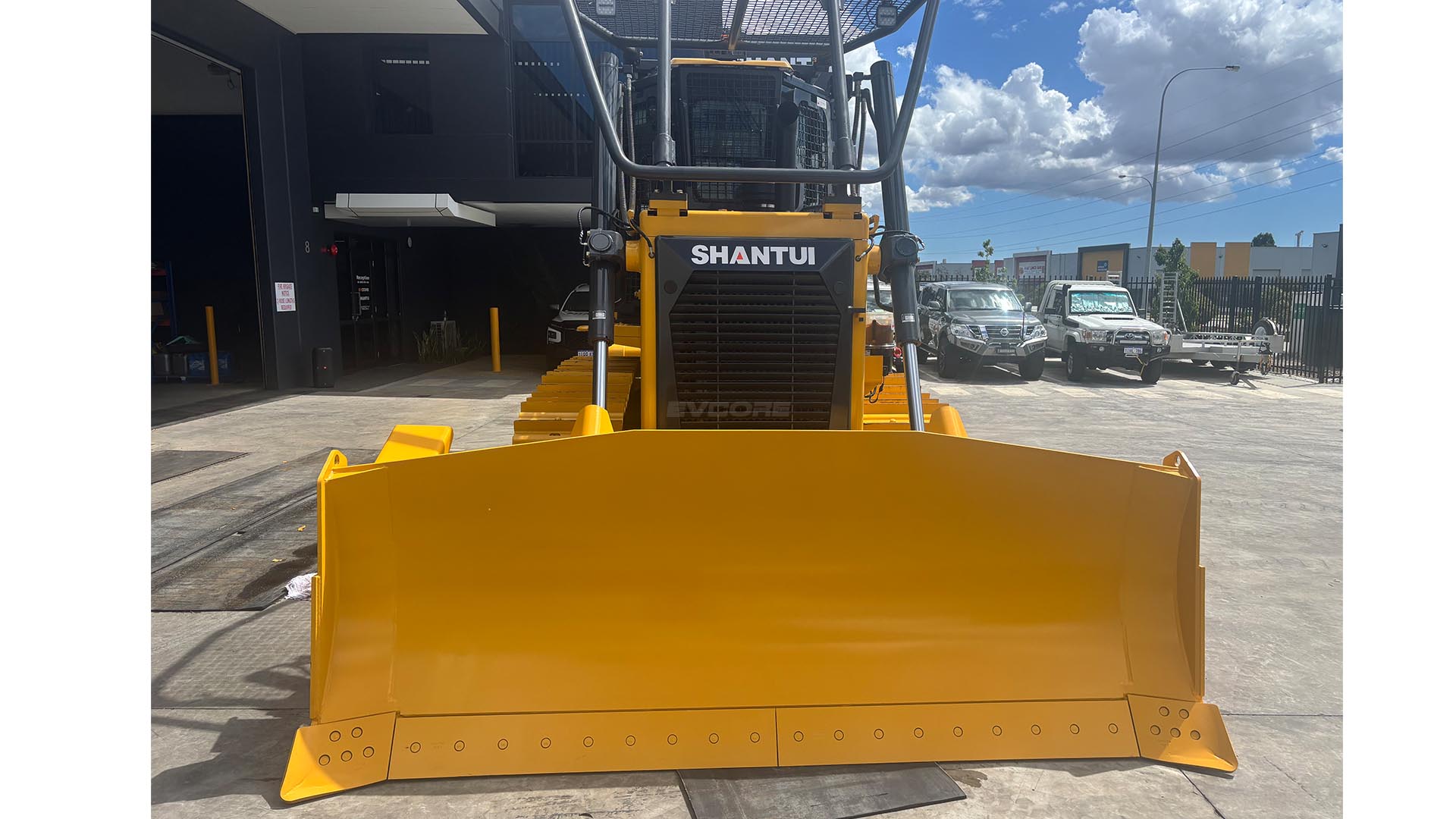

BLADE
Blade Type
Straight tilt blade
Blade Capacity
4.5 m³ | 3.8 m³
Maximum Lifting Height of Blade
XL: 1,010 mm | LGP: 1,005 mm
Maximum Digging Depth of Blade
XL: 540 mm | LGP: 485 mm
Blade Digging Angle
XL: 55° ±3° | LGP: 55° ±3°
Blade Width
3,455 mm | 4,150 mm
Blade Height
1,149 mm | 960 mm
Maximum Blade Turning Angle on Ground
Maximum Blade Tilt Height
DIMENSIONS
Machine Height
XL: 3,128 mm | LGP: 3,128 mm
Track Grouser Height
XL: 65 mm | LGP: 101.5 mm
Ground Clearance
XL: 400 mm | LGP: 400 mm
Machine Length With Air Conditioning
Machine Length With Draw Bar
Machine Length Without Draw Bar
XL: 5,345 mm | LGP: 5,262 mm
Machine Length With Ripper
Machine Length Without Ripper
Overall Machine Length
Machine Width at Maximum Blade Angle
Track Shoes Outside Width
XL: 2,440 mm | LGP: 3,450 mm
Left Track Shoe to Blade Clearance
Right Track Shoe to Blade Clearance
Minimum Turning Radius

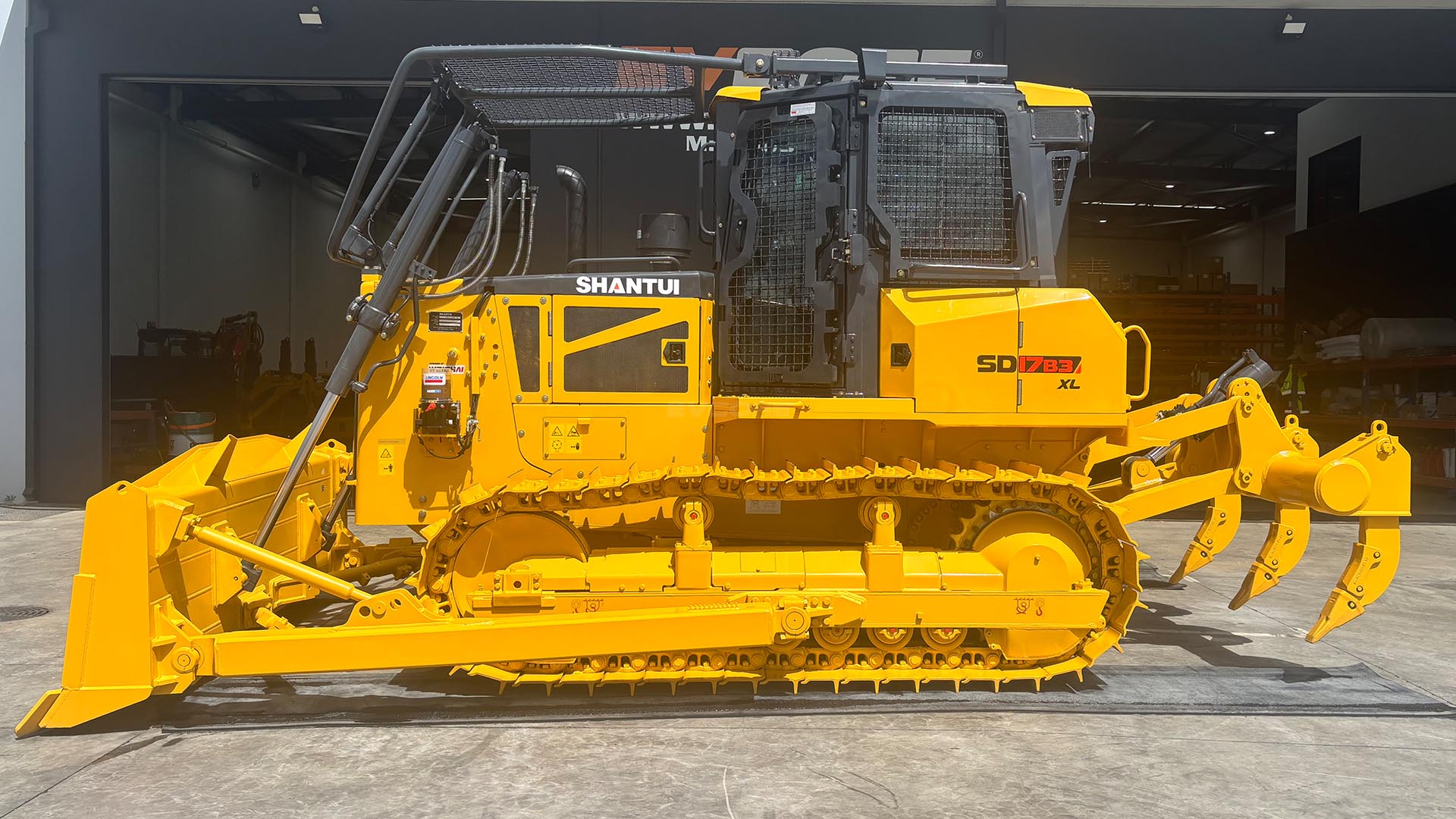

RIPPER
Ripper Type
Three-shank ripper
Ripper Weight
1,631 kg
Maximum Ripping Depth
572 mm
Maximum Ripper Lifting Height
592 mm
Ripper Length at Deepest Ripping
1,580 mm
Ripper Length at Highest Position
Ripper Width
2,080 mm
Ripper Tilt Angle at Highest Position
Ripping Width
1,900 mm
Ripper Tooth Width
Distance Between Ripper Teeth
950 mm
Ripper Departure Angle
32.1°

DOWNLOAD PRODUCT BROCHURE
