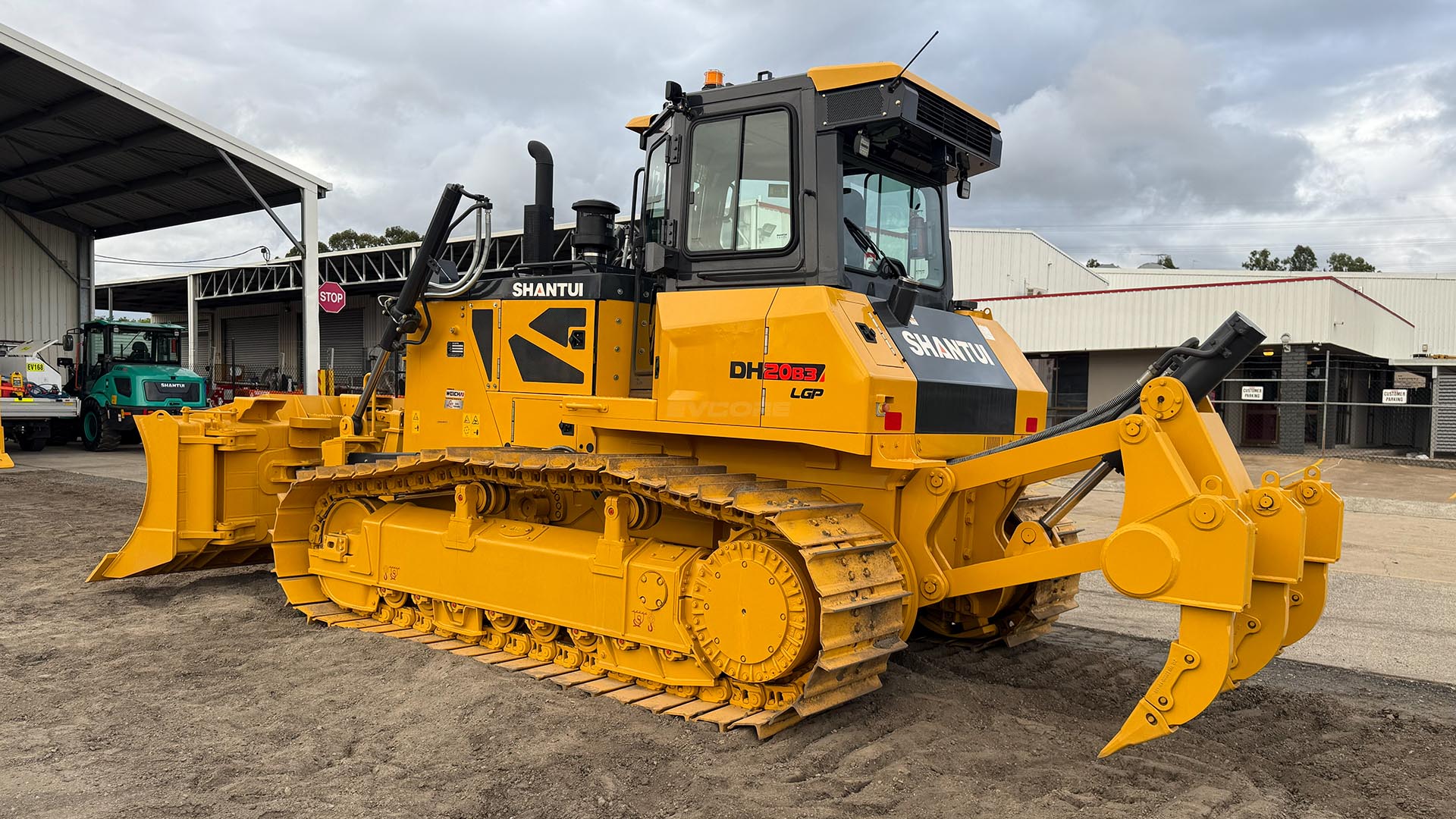

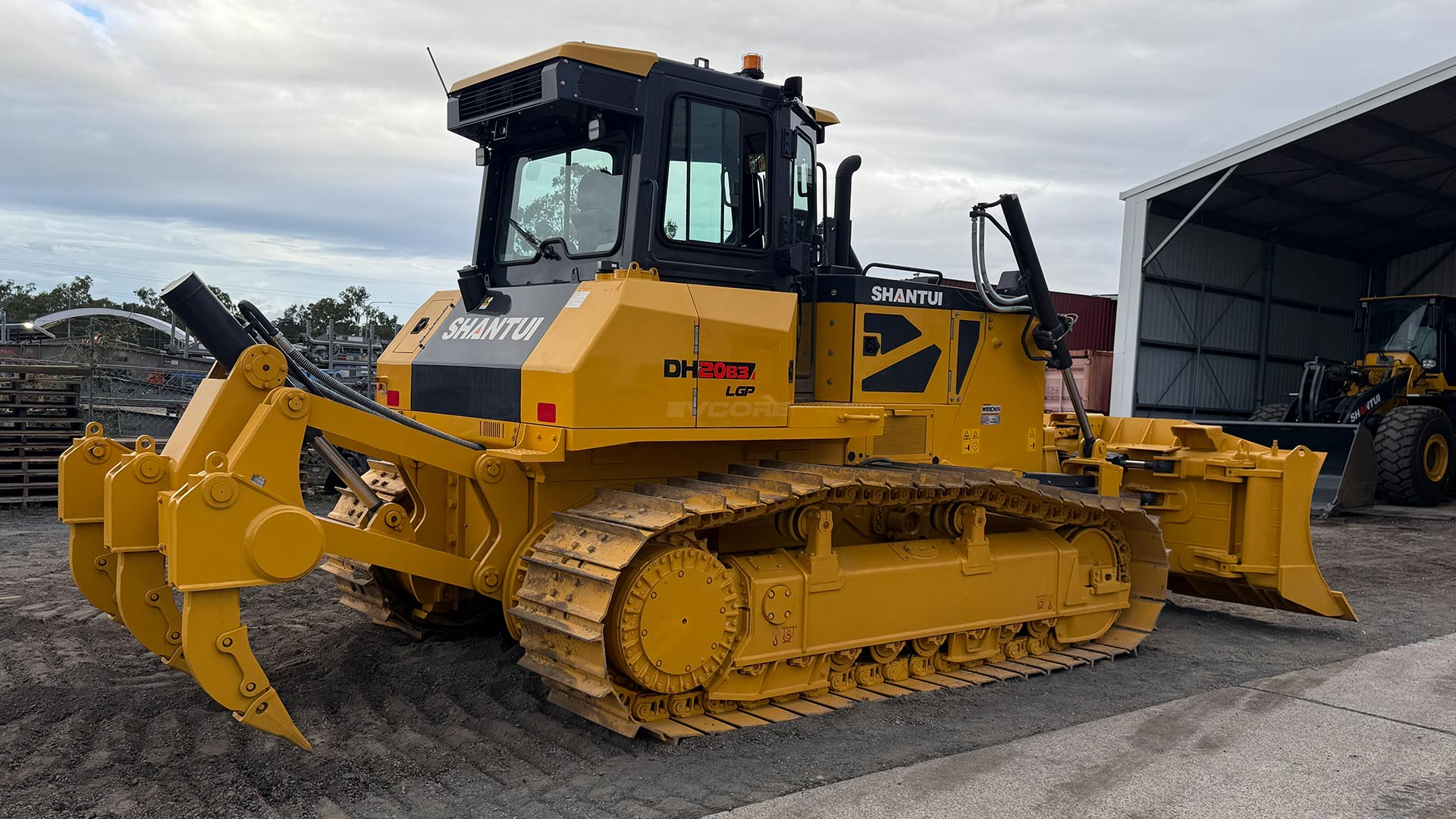

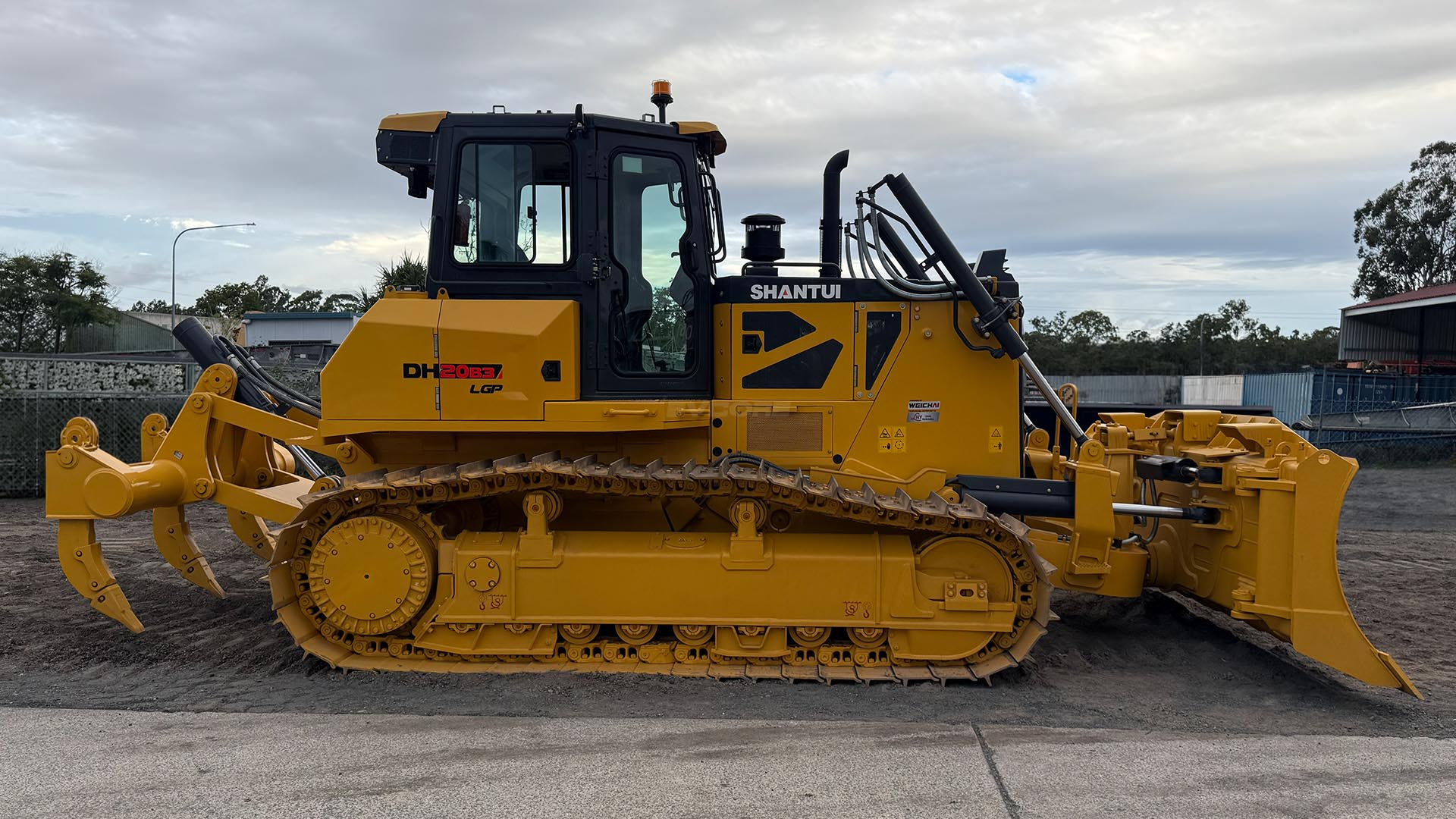

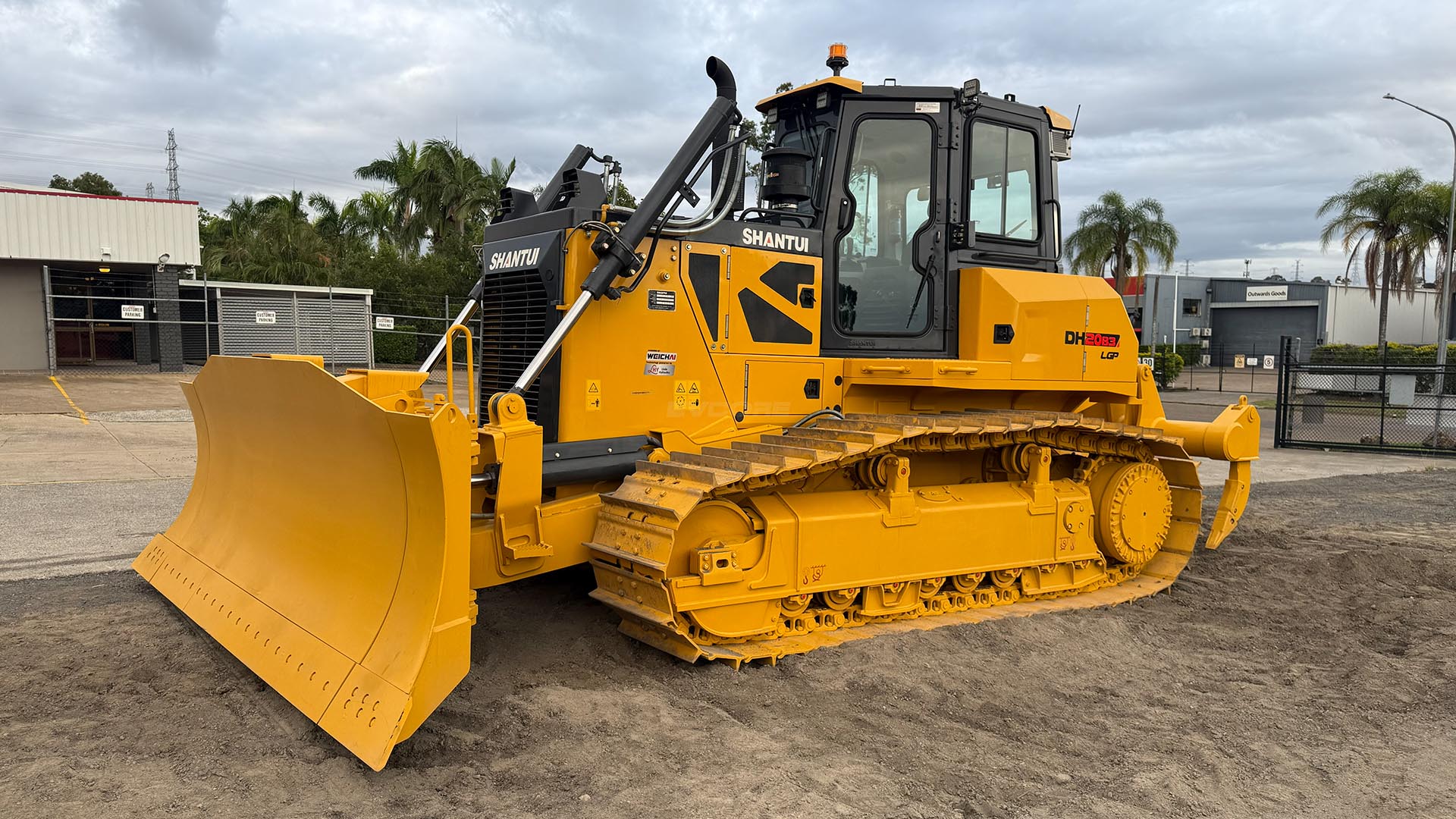

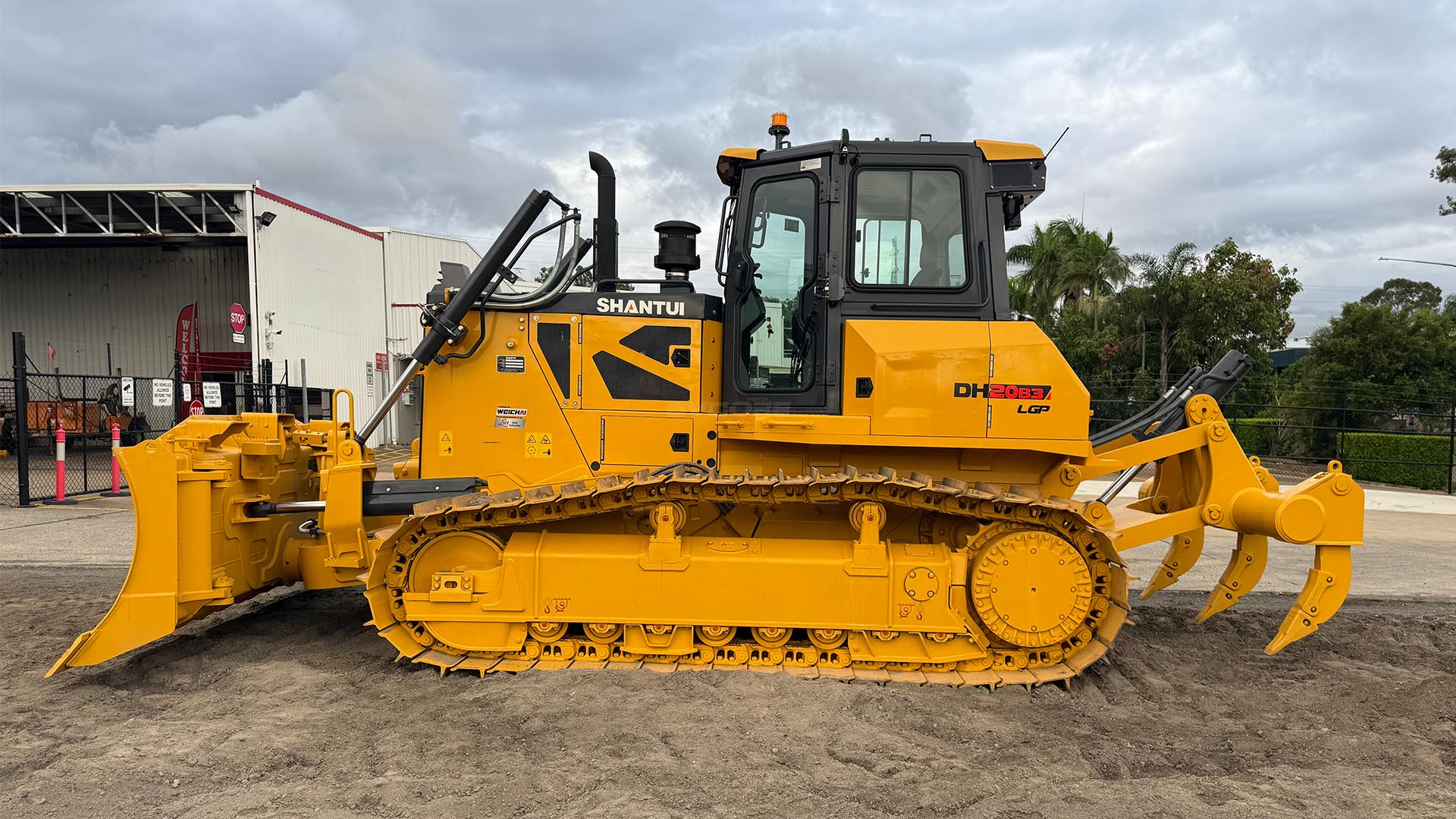

Bulldozer

Type your paragraph here

Type your paragraph here


Operating Weight

Type your paragraph here

Blade capacity

Type your paragraph here

FULL SPECIFICATIONS


Verified Australian-model data shown.
ENGINE
Engine
Weichai WD12G250E202
Emission
China-II
Rated Revolution
2,100 rpm
Horse Power
248 hp
Gross Power
185 kW
Net Power
162 kW
Number of Cylinders
Displacement
11.596 L
Maximum Torque
1,200 Nm @ 1,300-1,400 rpm
Minimum Fuel Consumption
Cooling System
DRIVE SYSTEM
Drive Type
hydrostatic
Drive System
Dual-circuit electronically controlled hydrostatic drive with intelligent load matching
System Overflow Pressure
45,000 kPa
Travel Speed Forward
0-11 km/h
Travel Speed Reverse
0-11 km/h
Maximum Theoretical Traction Force
356 kN
Torque Converter
Transmission
Central / Bevel Gear Drive
Steering
Hydraulic motor differential steering with pivot and load steering
Steering Clutch
Braking System
Normally closed brake
Brake Clutch
Final Drive
Single spur gear and single planetary reduction
CHASSIS SYSTEM
Chassis Type
XL: Semi-rigid suspension structure | LGP: Semi-rigid suspension structure
Track Shoe Type
XL: Single-tooth dry type | LGP: Wet type
Track Gauge
XL: 2,050 mm | LGP: 2,430 mm
Width of Track Shoe
XL: 560 / 610 mm | LGP: 710 mm
Track Grounding Length
XL: 2,980 mm | LGP: 3,285 mm
Track Grounding Area
XL: 38,724 cm² | LGP: 60,709 cm²
Number of Track Shoes
XL: 43 pcs per side | LGP: 46 pcs per side
Grounding Pressure
Number of Carrier Rollers
XL: 2 per side | LGP: 2 per side
Number of Track Rollers
XL: 8 per side | LGP: 8 per side
Track Pitch
XL: 203 mm | LGP: 203 mm
REFILL CAPACITY
Fuel Capacity
XL: 444 L | LGP: 444 L
Coolant Capacity
XL: 40 L | LGP: 40 L
Engine Oil Capacity
XL: 25 L | LGP: 25 L
Hydraulic Oil Tank Capacity
Hydraulic Work Oil Capacity
Transmission Oil Capacity
Drive Axle Oil Capacity
Final Drive Oil Capacity
XL: 46 L per side | LGP: 46 L per side
Transfer Case Oil Capacity
OPERATING WEIGHT
Operating Weight Standard
XL: 20,500 kg | LGP: 22,200 kg
Operating Weight Traction Frame
Operating Weight Ripper
Operating Weight Winch
Operating Weight Cabin and Traction Frame
Operating Weight Cabin and Draw Bar
Operating Weight Cabin and Ripper
22,365 kg | 24,065 kg
Operating Weight ROPS Canopy and Traction Frame
Operating Weight ROPS Canopy and Ripper
Operating Weight ROPS Shed and Traction Frame
Operating Weight ROPS Shed and Ripper
BLADE
Blade Type
XL: Semi-U / Straight Tilt | LGP: PAT
Blade Capacity
Maximum Lifting Height of Blade
XL: 1,070 mm | LGP: 1,060 mm
Maximum Digging Depth of Blade
XL: 600 mm | LGP: 700 mm
Blade Digging Angle
XL: 55° ±3° | LGP: 55° ±3°
Blade Width
XL: 3,709 mm | LGP: 4,080 mm
Blade Height
XL: 1,307 / 1,517 mm | LGP: 1,330 mm
Maximum Blade Turning Angle on Ground
Maximum Blade Tilt Height
DIMENSIONS
Machine Height
XL: 3,312 mm | LGP: 3,246 mm
Track Grouser Height
XL: 65 mm | LGP: 65 mm
Ground Clearance
XL: 410 mm | LGP: 410 mm
Machine Length With Air Conditioning
Machine Length With Draw Bar
Machine Length Without Draw Bar
Machine Length With Ripper
XL: 5,465 mm | LGP: 5,909 mm
Machine Length Without Ripper
Overall Machine Length
XL: 5,583 mm | LGP: 5,909 mm
Machine Width at Maximum Blade Angle
Track Shoes Outside Width
XL: 2,660 mm | LGP: 3,040 mm
Left Track Shoe to Blade Clearance
Right Track Shoe to Blade Clearance
Minimum Turning Radius
XL: 3,910 mm | LGP: 4,192 mm

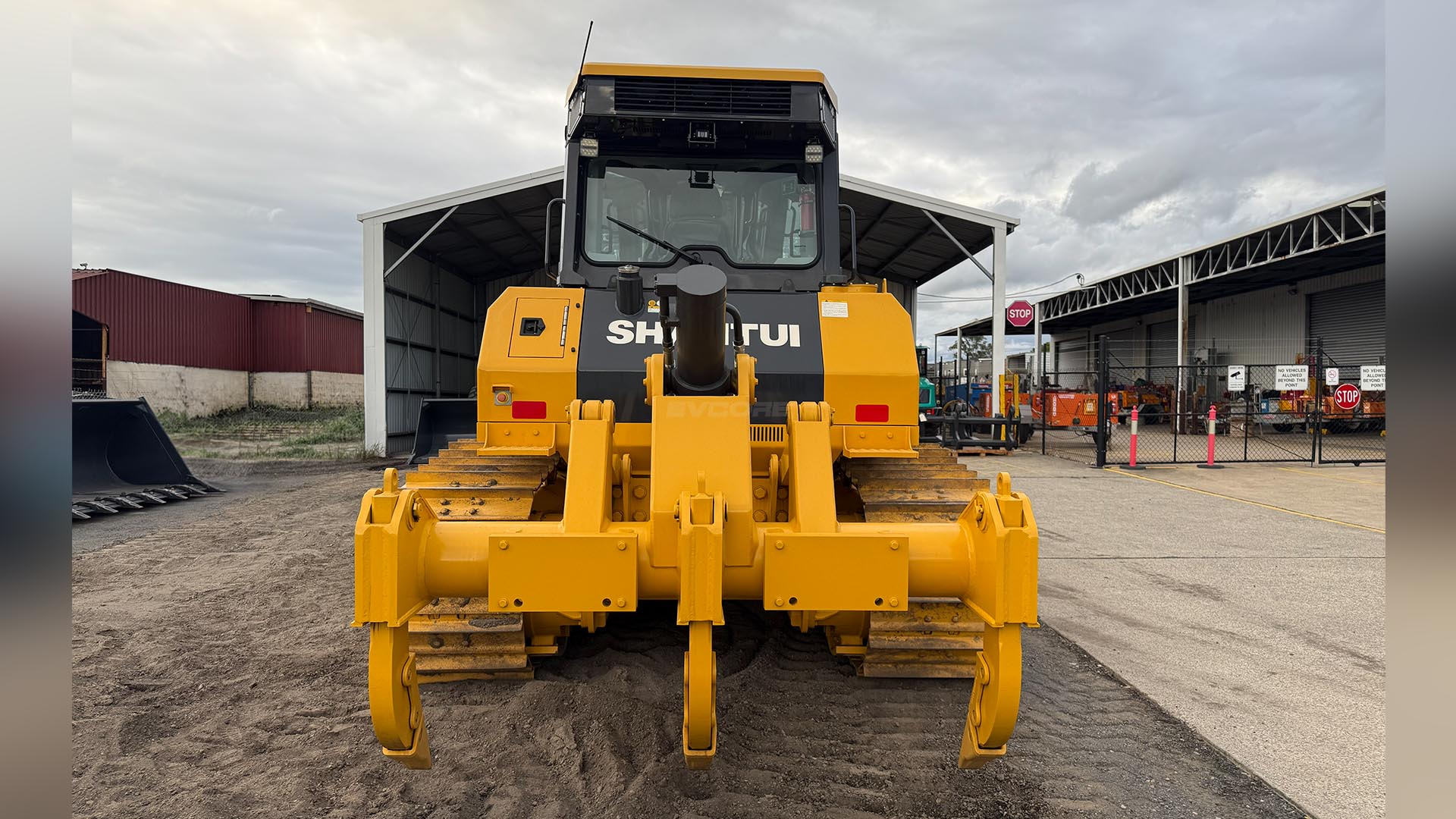

RIPPER
Ripper Type
Three-shank ripper
Ripper Weight
Maximum Ripping Depth
XL: 650 mm | LGP: 650 mm
Maximum Ripper Lifting Height
XL: 620 mm | LGP: 620 mm
Ripper Length at Deepest Ripping
XL: 1,718 mm | LGP: 1,718 mm
Ripper Length at Highest Position
XL: 1,454 mm | LGP: 1,454 mm
Ripper Width
XL: 2,288 mm | LGP: 2,288 mm
Ripper Tilt Angle at Highest Position
Ripping Width
XL: 2,100 mm | LGP: 2,100 mm
Ripper Tooth Width
Distance Between Ripper Teeth
XL: 1,050 mm | LGP: 1,050 mm
Ripper Departure Angle
