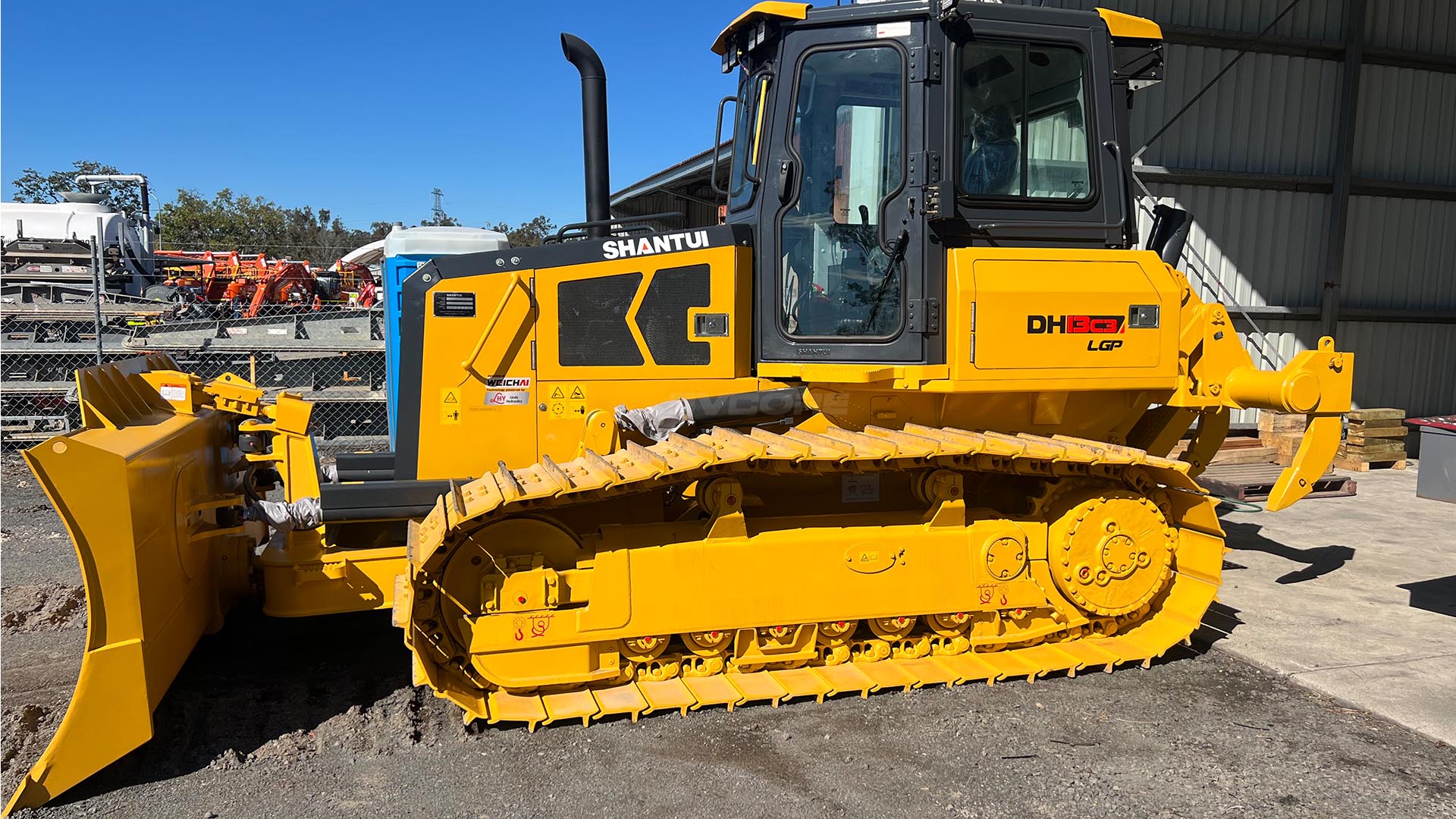

Bulldozer

Type your paragraph here

Type your paragraph here

Operating Weight

Type your paragraph here

Blade capacity

Type your paragraph here

enquire about this model
Download product brochure

FULL SPECIFICATIONS

Verified Australian-model data shown.
ENGINE
Engine
Cummins QSB6.7
Emission
Stage III
Rated Revolution
2,000 rpm
Horse Power
155 HP
Gross Power
116 kW
Net Power
103 kW
Number of Cylinders
Displacement
6.7 L
Maximum Torque
622 Nm @ 1,500 rpm
Minimum Fuel Consumption
195 g/kW·h
Cooling System
DRIVE SYSTEM
Drive Type
hydrostatic
Drive System
Independent dual-circuit electric control hydrostatic drive with intelligent speed-load matching
System Overflow Pressure
43,500 kPa
Travel Speed Forward
0–10 km/h
Travel Speed Reverse
0–10 km/h
Maximum Theoretical Traction Force
200 kN
Torque Converter
Transmission
Central / Bevel Gear Drive
Steering
Independent drive on both tracks for pivot steering and steering under load
Steering Clutch
Braking System
Normally closed multi-disc brake
Brake Clutch
Final Drive
Primary spur gear + primary planetary reduction
CHASSIS SYSTEM
Chassis Type
Semi-rigid suspension
Track Shoe Type
Single grouser
Track Gauge
1,780 mm XL | 2,000 mm LGP
Width of Track Shoe
560 mm XL | 760 mm LGP
Track Grounding Length
XL: 2,360 mm | LGP: 2,360 mm
Track Grounding Area
29,568 cm² XL | 40,128 cm² LGP
Number of Track Shoes
40 pcs per side
Grounding Pressure
45.3 kPa XL | 34.9 kPa LGP
Number of Carrier Rollers
2 pcs per side
Number of Track Rollers
7 pcs per side
Track Pitch
190 mm
REFILL CAPACITY
Fuel Capacity
275 L
Coolant Capacity
26 L
Engine Oil Capacity
16.5 L
Hydraulic Oil Tank Capacity
19 L per side
Hydraulic Work Oil Capacity
Transmission Oil Capacity
Drive Axle Oil Capacity
Final Drive Oil Capacity
5 L
Transfer Case Oil Capacity
OPERATING WEIGHT
Operating Weight Standard
XL:14,600 kg | LGP: 15,035 kg
Operating Weight Traction Frame
13,400 kg XL | 14,000 kg LGP
Operating Weight Ripper
Operating Weight Winch
15,000 kg LGP
Operating Weight Cabin and Traction Frame
Operating Weight Cabin and Draw Bar
XL: 9,200 kg | LGP: 9,500 kg
Operating Weight Cabin and Ripper
14,600 kg XL
Operating Weight ROPS Canopy and Traction Frame
Operating Weight ROPS Canopy and Ripper
Operating Weight ROPS Shed and Traction Frame
Operating Weight ROPS Shed and Ripper

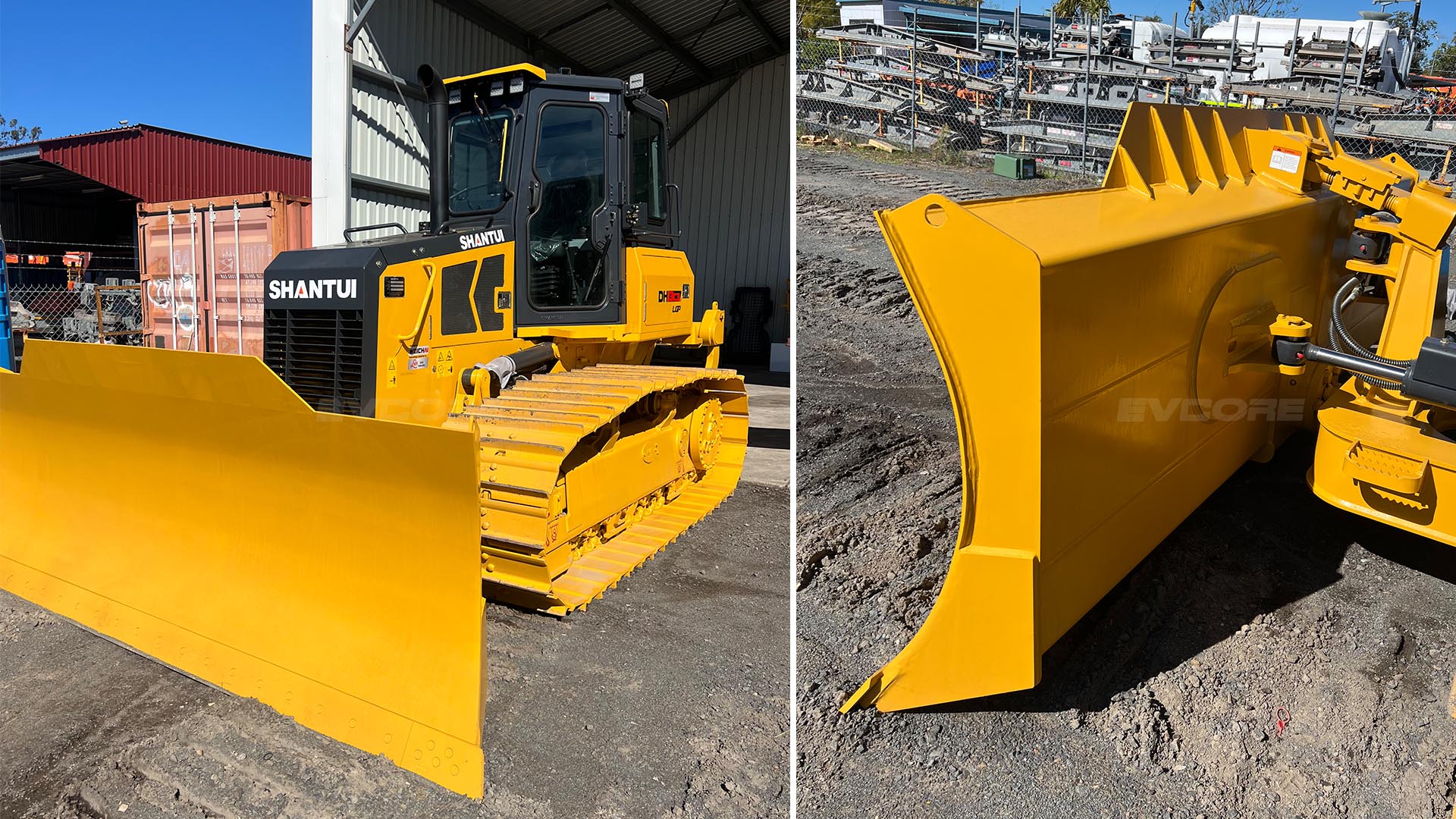

BLADE
Blade Type
PAT
Blade Capacity
3.07 m³ XL | 3.39 m³ LGP
Maximum Lifting Height of Blade
950 mm
Maximum Digging Depth of Blade
460 mm
Blade Digging Angle
55° ± 3°
Blade Width
3,060 mm XL | 3,530 mm LGP
Blade Height
1,300 mm
Maximum Blade Turning Angle on Ground
25°
Maximum Blade Tilt Height
460 mm XL | 510 mm LGP
DIMENSIONS
Machine Height
2,988 mm
Track Grouser Height
50 mm
Ground Clearance
360 mm
Machine Length With Air Conditioning
Machine Length With Draw Bar
5,190 mm
Machine Length Without Draw Bar
Machine Length With Ripper
Machine Length Without Ripper
Overall Machine Length
Machine Width at Maximum Blade Angle
2,783 mm XL | 3,200 mm LGP
Track Shoes Outside Width
2,340 mm XL | 2,760 mm LGP
Left Track Shoe to Blade Clearance
Right Track Shoe to Blade Clearance
Minimum Turning Radius
3,324 mm XL | 3,400 mm LGP

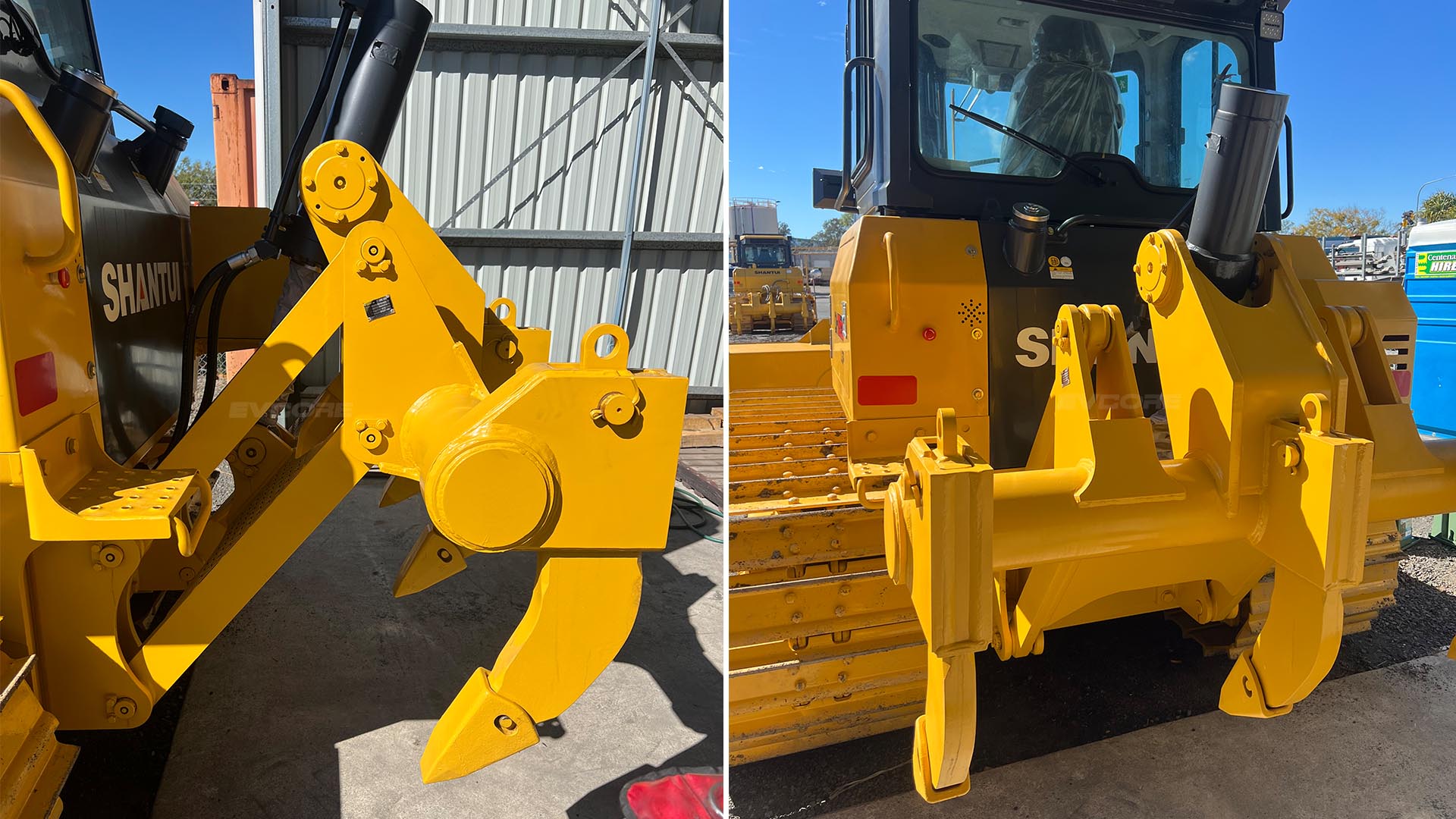

RIPPER
Ripper Type
Three-shank ripper
Ripper Weight
1,035 kg
Maximum Ripping Depth
500 mm
Maximum Ripper Lifting Height
600 mm
Ripper Length at Deepest Ripping
1,600 mm
Ripper Length at Highest Position
1,230 mm
Ripper Width
1,759 mm
Ripper Tilt Angle at Highest Position
28°
Ripping Width
1,696 mm
Ripper Tooth Width
Distance Between Ripper Teeth
800 mm
Ripper Departure Angle
