FULL SPECIFICATIONS


Verified Australian-model data shown.
ENGINE
Engine
Weichai WP4G95E221
Emission
China-II
Rated Revolution
2,200 rpm
Horse Power
94 hp
Gross Power
70 kW
Net Power
63 kW
Number of Cylinders
Displacement
4.5 L
Maximum Torque
380 Nm @ 1,400-1,600 rpm
Minimum Fuel Consumption
Cooling System
DRIVE SYSTEM
Drive Type
hydrostatic
Drive System
Independent dual-circuit electric control hydrostatic drive
System Overflow Pressure
42,500 kPa
Travel Speed Forward
0-9 km/h
Travel Speed Reverse
0-9 km/h
Maximum Theoretical Traction Force
160.4 kN
Torque Converter
Transmission
Central / Bevel Gear Drive
Steering
Independent track drive for pivot steering and steering under load
Steering Clutch
Braking System
Regular closed multi-disk brake
Brake Clutch
Final Drive
Double planetary reduction
CHASSIS SYSTEM
Chassis Type
XL: Rigid type suspension | LGP: Rigid type suspension
Track Shoe Type
XL: Single grouser | LGP: Single grouser
Track Gauge
XL: 1,650 mm | LGP: 1,790 mm
Width of Track Shoe
XL: 460 mm | LGP: 610 mm
Track Grounding Length
XL: 2,225 mm | LGP: 2,225 mm
Track Grounding Area
XL: 20,470 cm² | LGP: 27,145 cm²
Number of Track Shoes
XL: 42 pcs per side | LGP: 42 pcs per side
Grounding Pressure
XL: 42.4 kPa | LGP: 33.5 kPa
Number of Carrier Rollers
XL: 1 per side | LGP: 1 per side
Number of Track Rollers
XL: 6 per side | LGP: 6 per side
Track Pitch
XL: 154.1 mm | LGP: 154.1 mm
REFILL CAPACITY
Fuel Capacity
197 L
Coolant Capacity
19 L
Engine Oil Capacity
10 L
Hydraulic Oil Tank Capacity
53 L
Hydraulic Work Oil Capacity
Transmission Oil Capacity
Drive Axle Oil Capacity
Final Drive Oil Capacity
5.8 L per side
Transfer Case Oil Capacity
OPERATING WEIGHT
Operating Weight Standard
XL: 9,600 kg | LGP: 10,020 kg
Operating Weight Traction Frame
Operating Weight Ripper
Operating Weight Winch
Operating Weight Cabin and Traction Frame
XL: 8,950 kg | LGP: 9,360 kg
Operating Weight Cabin and Draw Bar
Operating Weight Cabin and Ripper
XL: 9,600 kg | LGP: 10,020 kg
Operating Weight ROPS Canopy and Traction Frame
XL: 8,950 kg | LGP: 9,360 kg
Operating Weight ROPS Canopy and Ripper
XL: 9,350 kg | LGP: 9,750 kg
Operating Weight ROPS Shed and Traction Frame
Operating Weight ROPS Shed and Ripper

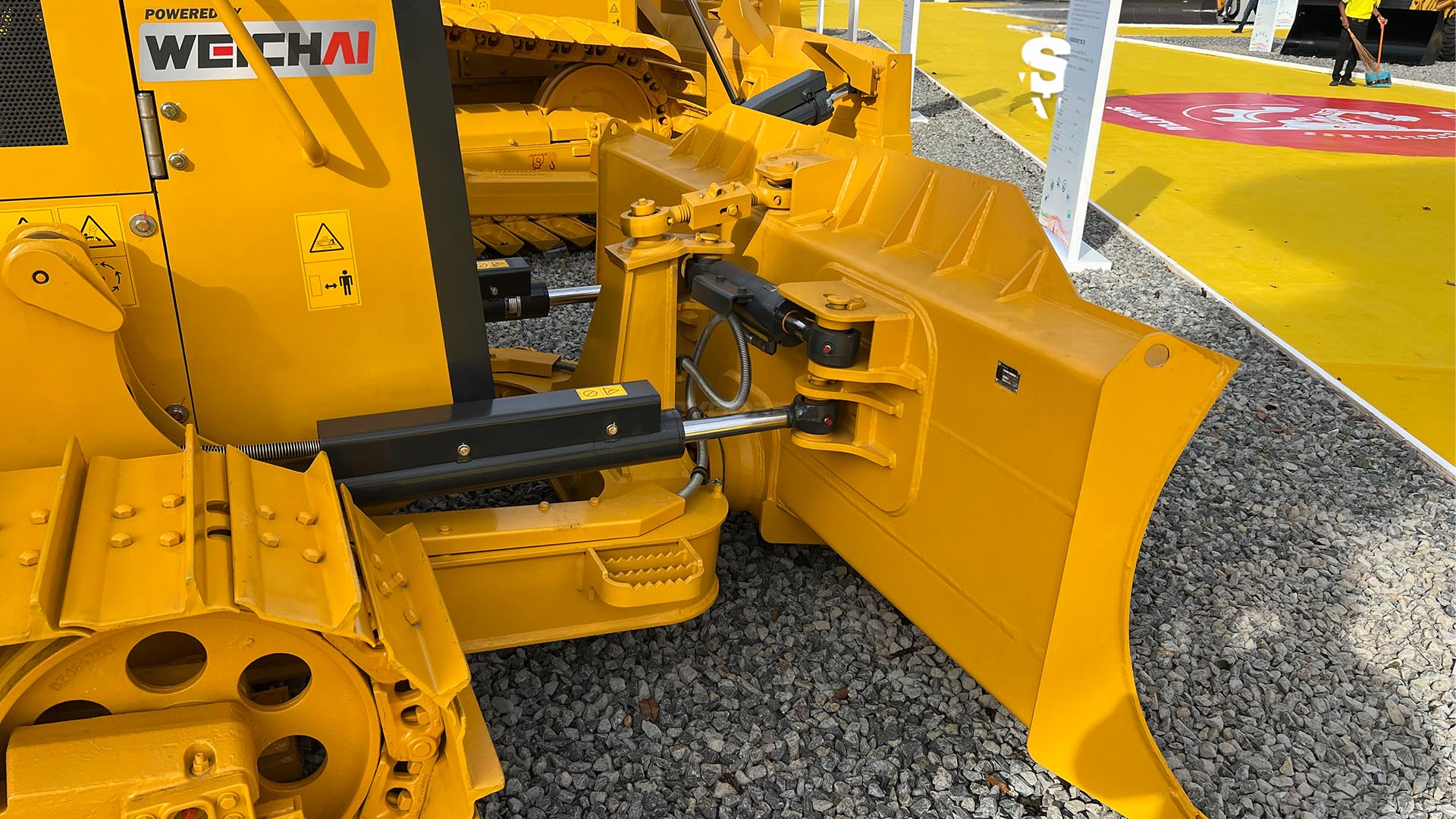

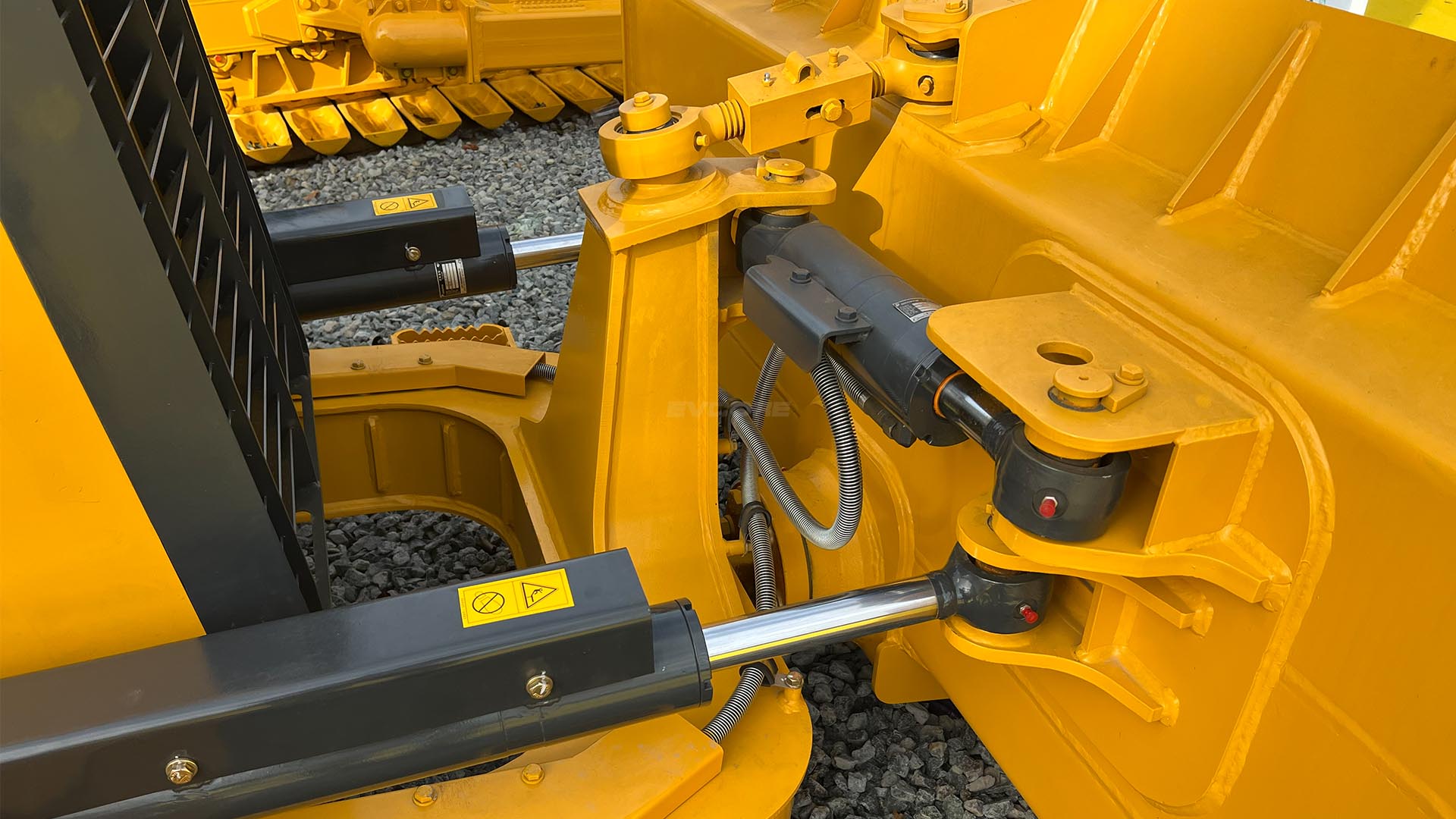

BLADE
Blade Type
XL: PAT | LGP: PAT
Blade Capacity
XL: 1.93 m³ | LGP: 2.04 m³
Maximum Lifting Height of Blade
XL: 900 mm | LGP: 900 mm
Maximum Digging Depth of Blade
XL: 450 mm | LGP: 450 mm
Blade Digging Angle
XL: 55° ±3° | LGP: 55° ±3°
Blade Width
XL: 2,680 mm | LGP: 3,150 mm
Blade Height
XL: 1,090 mm | LGP: 1,090 mm
Maximum Blade Turning Angle on Ground
XL: 25° | LGP: 25°
Maximum Blade Tilt Height
XL: 389 mm | LGP: 457 mm
DIMENSIONS
Machine Height
XL: 2,950 mm | LGP: 2,950 mm
Track Grouser Height
XL: 47 mm | LGP: 47 mm
Ground Clearance
XL: 320 mm | LGP: 320 mm
Machine Length With Air Conditioning
XL: 4,568 mm | LGP: 4,568 mm
Machine Length With Draw Bar
XL: 4,468 mm | LGP: 4,468 mm
Machine Length Without Draw Bar
XL: 4,373 mm | LGP: 4,373 mm
Machine Length With Ripper
Machine Length Without Ripper
Overall Machine Length
Machine Width at Maximum Blade Angle
XL: 2,474 mm | LGP: 2,896 mm
Track Shoes Outside Width
XL: 2,110 mm | LGP: 2,400 mm
Left Track Shoe to Blade Clearance
XL: 4 mm | LGP: 64 mm
Right Track Shoe to Blade Clearance
XL: 364 mm | LGP: 432 mm
Minimum Turning Radius
XL: 2,790 mm | LGP: 2,800 mm
RIPPER
Ripper Type
Ripper Weight
Maximum Ripping Depth
XL: 340 mm | LGP: 340 mm
Maximum Ripper Lifting Height
XL: 440 mm | LGP: 440 mm
Ripper Length at Deepest Ripping
1,366 mm
Ripper Length at Highest Position
972 mm
Ripper Width
1,766 mm
Ripper Tilt Angle at Highest Position
Ripping Width
XL: 1,696 mm | LGP: 1,696 mm
Ripper Tooth Width
Distance Between Ripper Teeth
XL: 800 mm | LGP: 800 mm
Ripper Departure Angle
