SG27 GRADER
$18,500.00
Overall Weight
18,500 Kg
Engine Model
Weichai WP7G270E301
Engine Power
199kW @ 2200rpm
DOWNLOAD PRODUCT PDF
CLOSE
SG27 GRADER
Overall Weight
18,500 Kg
Engine Model
Weichai WP7G270E301
Engine Power
199kW @ 2200rpm
CLOSE
REQUEST QUOTE
SG27 GRADER
Overall Weight
18,500 Kg
Engine Model
Weichai WP7G270E301
Engine Power
199kW @ 2200rpm
Overview of the Shantui SG27 Grader
The Shantui SG27 Grader is built for high-performance grading in the toughest environments. Powered by a robust Weichai WP7G270E301 engine, this grader delivers 270 hp with a maximum torque of 1,100 N·m, ensuring power and efficiency for heavy-duty applications. Featuring a 3,965 mm moldboard width, 500 mm cutting depth, and advanced hydraulic controls, the SG27 is designed for precision and reliability across construction, road maintenance, and mining projects.
Purpose-engineered for Australian conditions, the SG27 boasts cutting-edge features for optimal operator comfort and machine durability.
Key Features
- High-Power Weichai Engine: 270 hp, 7.47L engine designed for consistent performance and fuel efficiency.
- Large Moldboard: 3,965 mm moldboard with 500 mm cutting depth for precise grading.
- Powerful Traction: 99 kN max traction for efficient operation in demanding conditions.
- Versatile Transmission: Fixed-axis electro-hydraulic control transmission with six forward and three reverse speeds.
- Precision Steering: Front wheel steering angle of ±45° and articulation angle of ±25° for superior maneuverability.

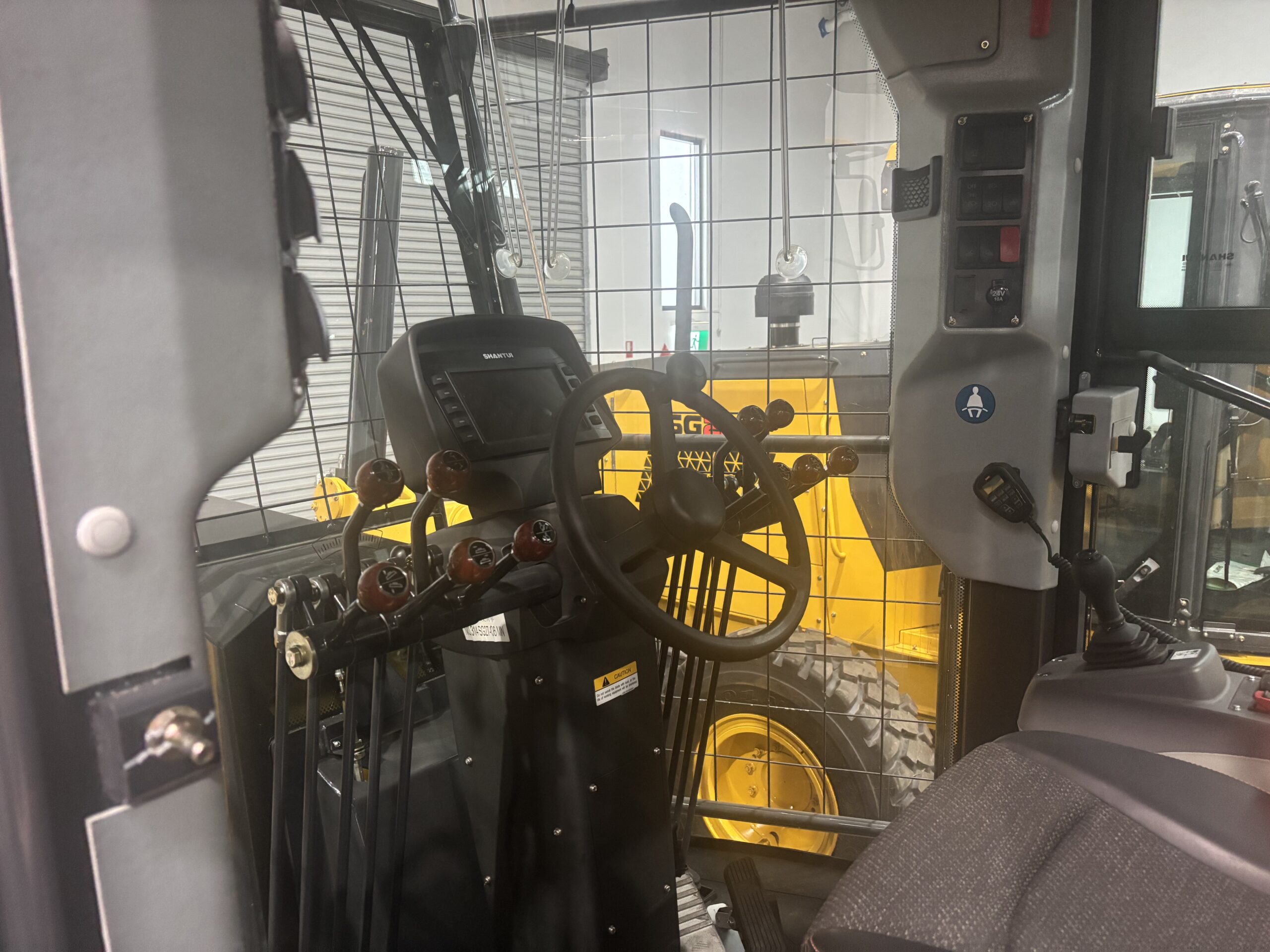

- Operator Comfort: Ergonomic cab design, with adjustable seating and enhanced visibility.
- Durability and Reliability: Operating weight of up to 19,400 kg ensures stability and long-term durability.
Technical Specifications
Engine: Weichai WP7G270E301, 270 hp @ 2200 rpm
Torque: 1,100 N·m @ 1300-1500 rpm
Transmission: 6 forward, 3 reverse speeds
Moldboard: 3,965 mm wide, 500 mm max cutting depth
Hydraulic System: 18 MPa relief pressure
Fuel Tank Capacity: 340 L
Operating Weight: 18,500 – 19,400 kg (depending on configuration)
Why Choose the Shantui SG27 Grader?
The SG27 Grader is ideal for large-scale projects that demand precision, power, and versatility. Its high-performance engine and advanced hydraulic system enable it to tackle the most challenging tasks with ease. With an impressive moldboard and cutting capabilities, the SG27 is a must-have for operators seeking reliable, heavy-duty performance.
About Evcore
Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we prioritise our customers by providing top-notch service, a full range of spare parts, and mobile service vehicles ready to ensure your machine keeps moving 24/7.
For more information or to arrange a demonstration of the Shantui SG27 Grader, contact us today:
Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
Email: sales@evcore.com.au
Website: shantuiaustralia.com.au

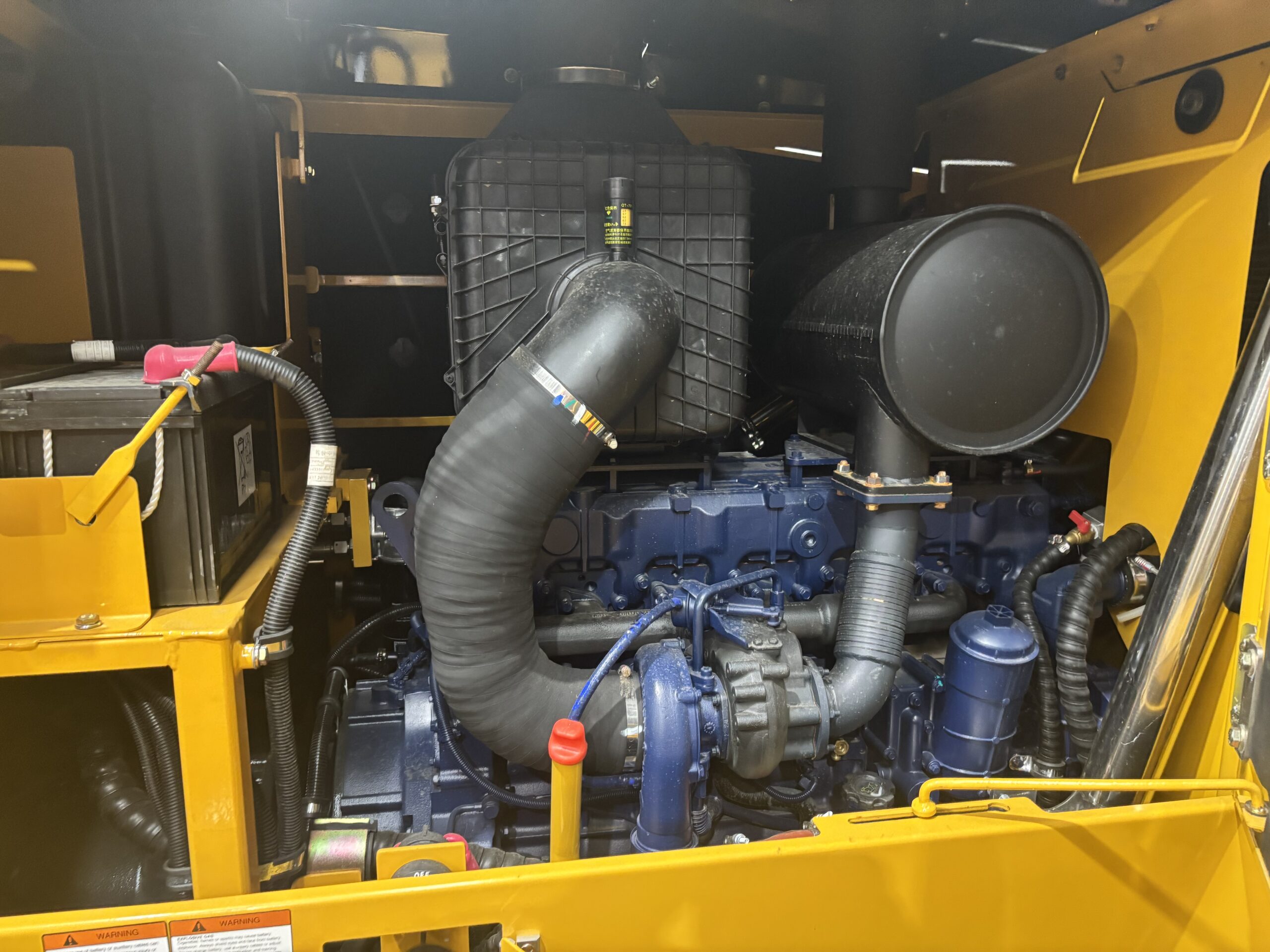

ENGINE
| Model | Weichai WP7G270E301 |
| Number of cylinders | 6 |
| Type | 4-cycle, Electronic Injection, Water-cooled |
| Bore x stroke | 108*136mm |
| Displacement | 7.47L |
| Gross power | 199kW @ 2200rpm |
| Max. traction | 99kN |
| Max. torque | 1100N.m @ 1300-1500rpm |
| Rated fuel consumption | 220g/kW.h |
| Emission | China-III |
POWER TRAIN
| Transmission | Fixed-axis type, electro-hydraulic control |
| Torque converter | Single-stage, single-phase, three basic elements |
| Rear axle | Modular, planetary reduction, “no-Spin” antiskid differential |
| Tandem drive | Roller chain. Oscillating angle:±15° |
| Tire | 20.5-25PR16 |
| Front axle | Oscillating angle:±15° Tilting angle:±17° |
STEERING
| Front wheel steering angle | ±45° |
| Articulation angle | ±25° |
| Min. turning radius | 8600mm |
BRAKES
| Service brake | Drum type , foot operated, single circuit, hydraulically actuated on four tandem wheels |
| Parking brake | Drum type, manually actuated |
MOLDBOARD
| Rotation | 360° |
| Moldboard width | 3965mm |
| Moldboard height | 635mm |
| Moldboard thickness | 20mm |
| Moldboard tip angle | 27~73° |
| Max. cutting depth | 500mm |
| Max. lifting height | 510mm |
| Max. shoulder reach (left/right) | 2355/2410mm |
| Max. tilting angle (left/right) | ±90° |
SPEED
| Forward,1-6 | 5.8\10.0\13.2\22.7\28.5\46.9km/h |
| Reverse,1-3 | 5.8\13.2\28.5km/h |
HYDRAULICS
| Tandem pump | Gear pump.28ml/r |
| Overflow pressure for working | 18MPa |
CAPACITIES
| Fuel tank | 340L |
| Hydraulic oil tank | 110L |
| Engine crank case | 19L |
| Engine coolant | 33L |
ELECTRICAL SYSTEM
| Battery | 2x12V,105Ah |
| Alternator | 28V,70A |
| Starter motor | 24V,6kW |
OPERATING WEIGHT
| Standard | 18500kg |
| With rear ripper | 18800kg |
| With front blade | 19100kg |
| With front blade & rear ripper | 19400kg |
