SG21 GRADER

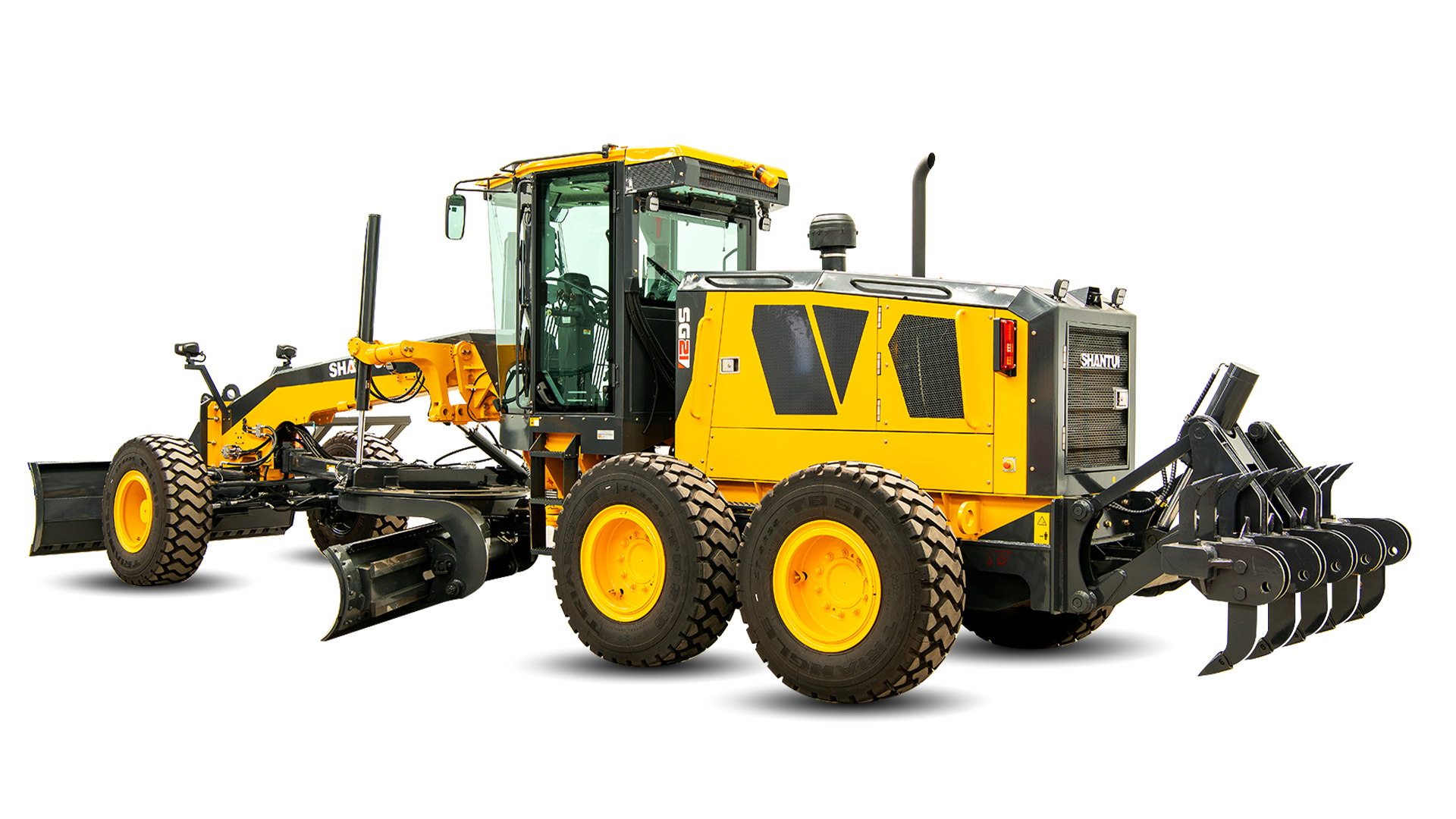

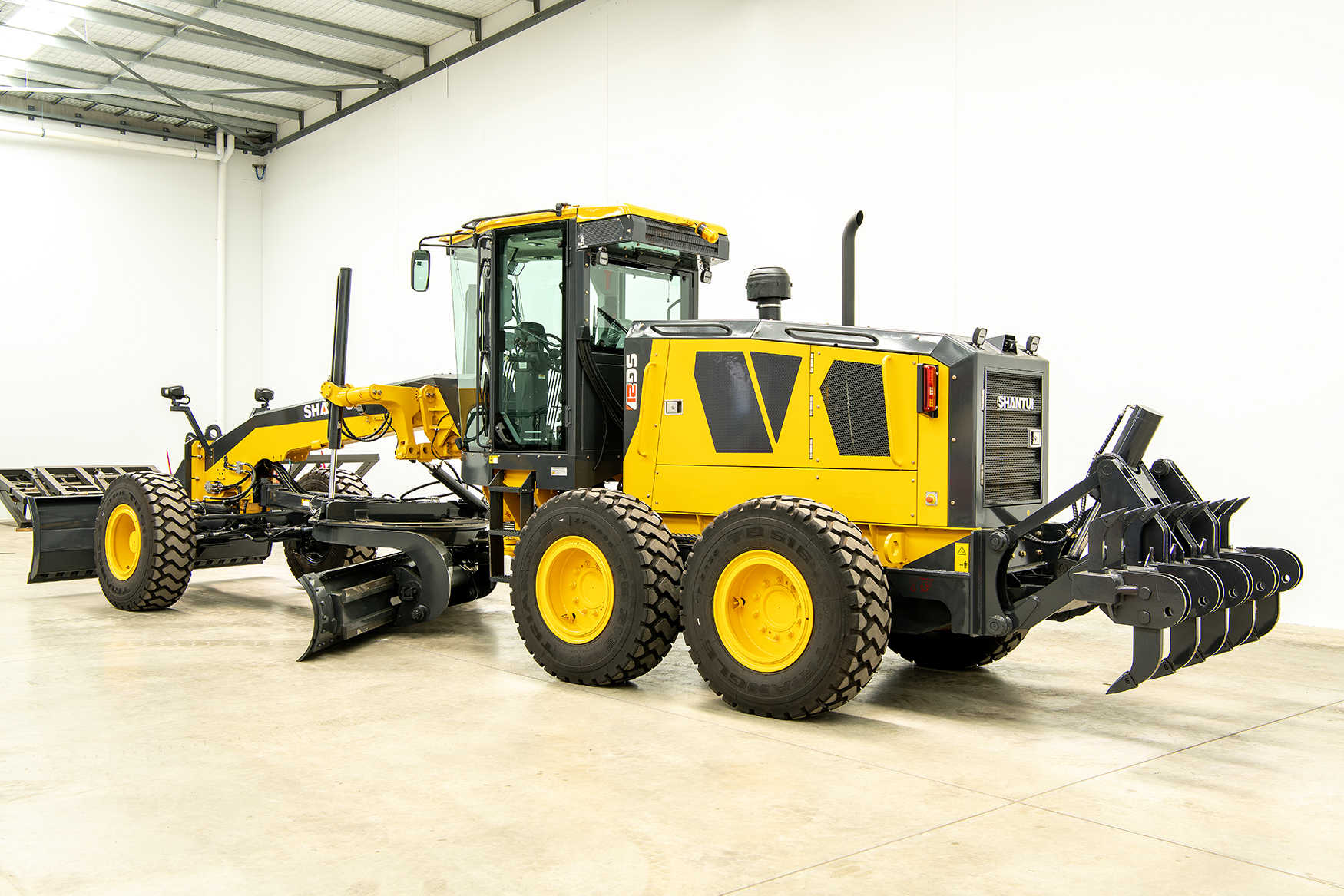

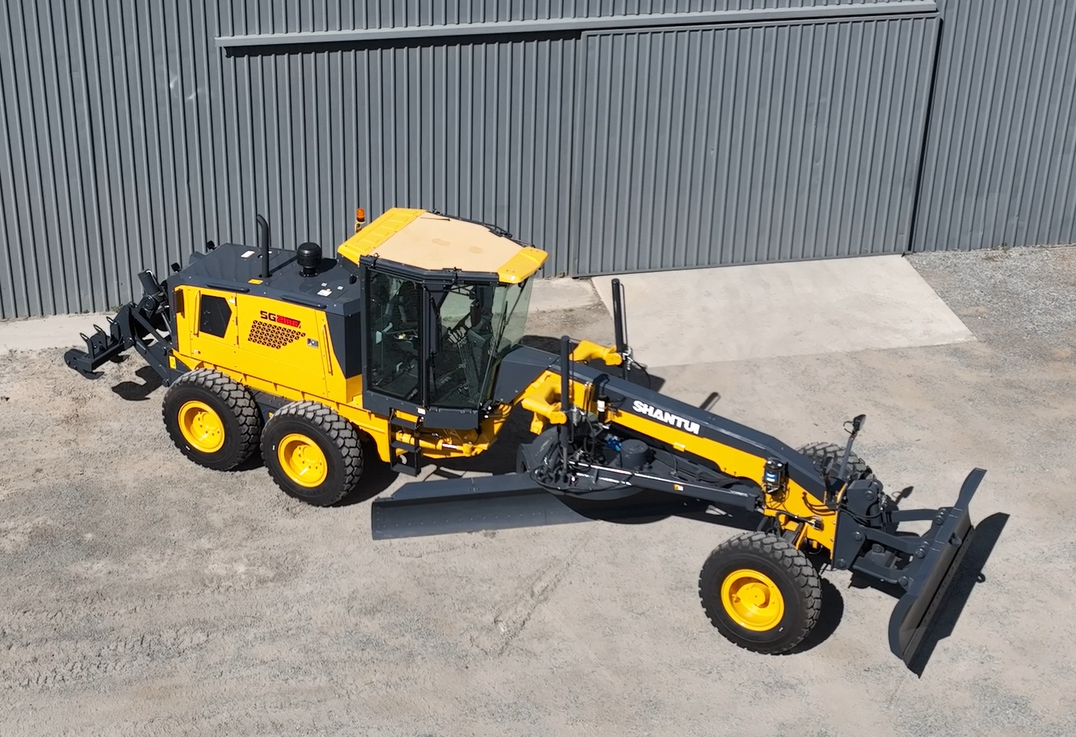

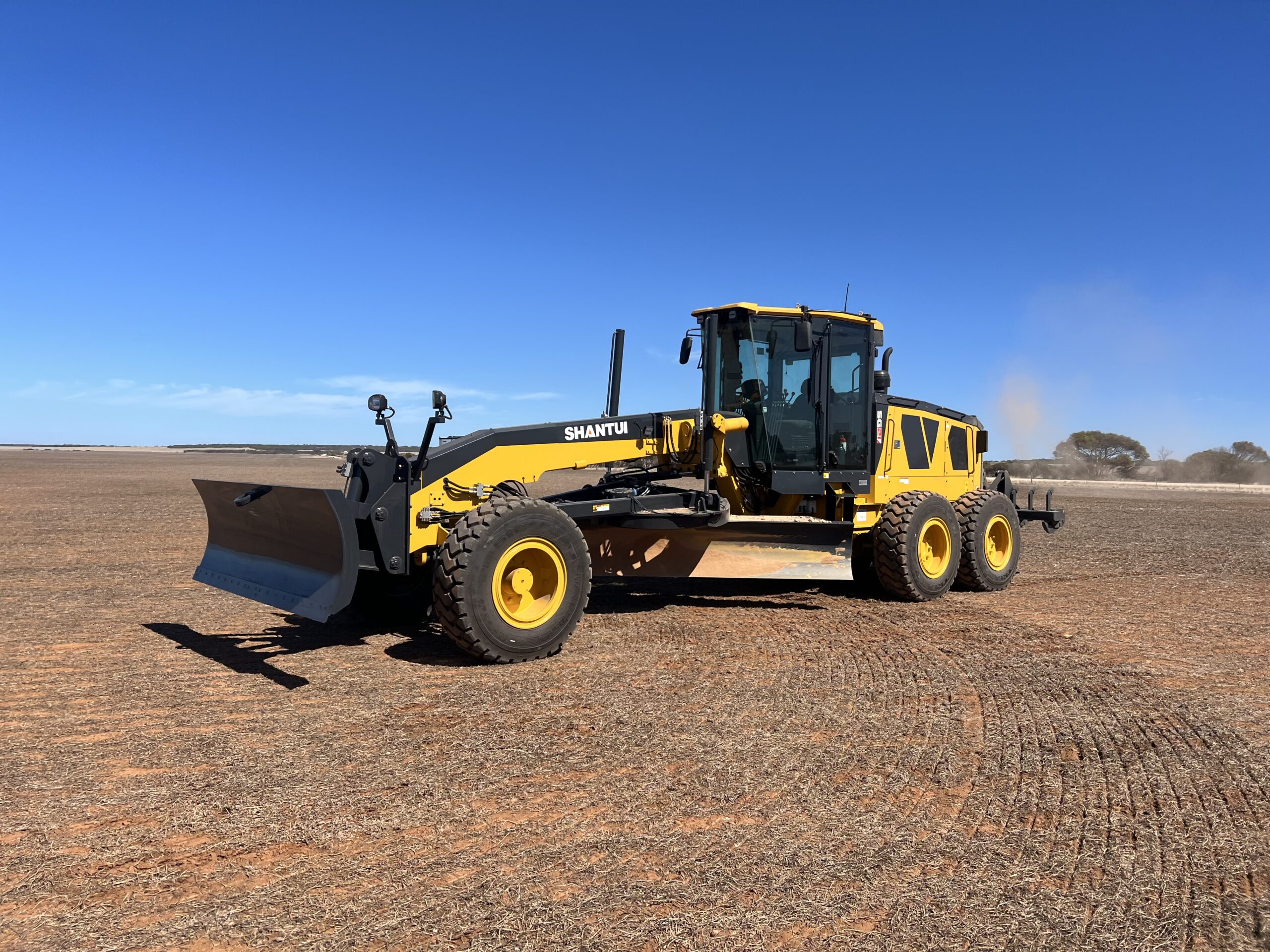

Overview of the Shantui SG21 Grader

The Shantui SG21 Grader is a high-performance machine engineered to deliver precision and power in even the toughest environments. Powered by a robust Cummins 6CTAA8.3-C215 engine, this grader provides 215 hp and a max torque of 980 N·m, ensuring optimal performance across a range of demanding applications. Its 360° moldboard rotation, combined with a cutting depth of up to 970 mm, makes it the ideal choice for road construction, earthmoving, and grading tasks.

Designed for Australian conditions, the SG21 offers exceptional traction with a modular rear axle and advanced hydraulic systems for seamless operation. Its ergonomic cab ensures operator comfort, featuring superior visibility and easy-to-use controls.

Key Features

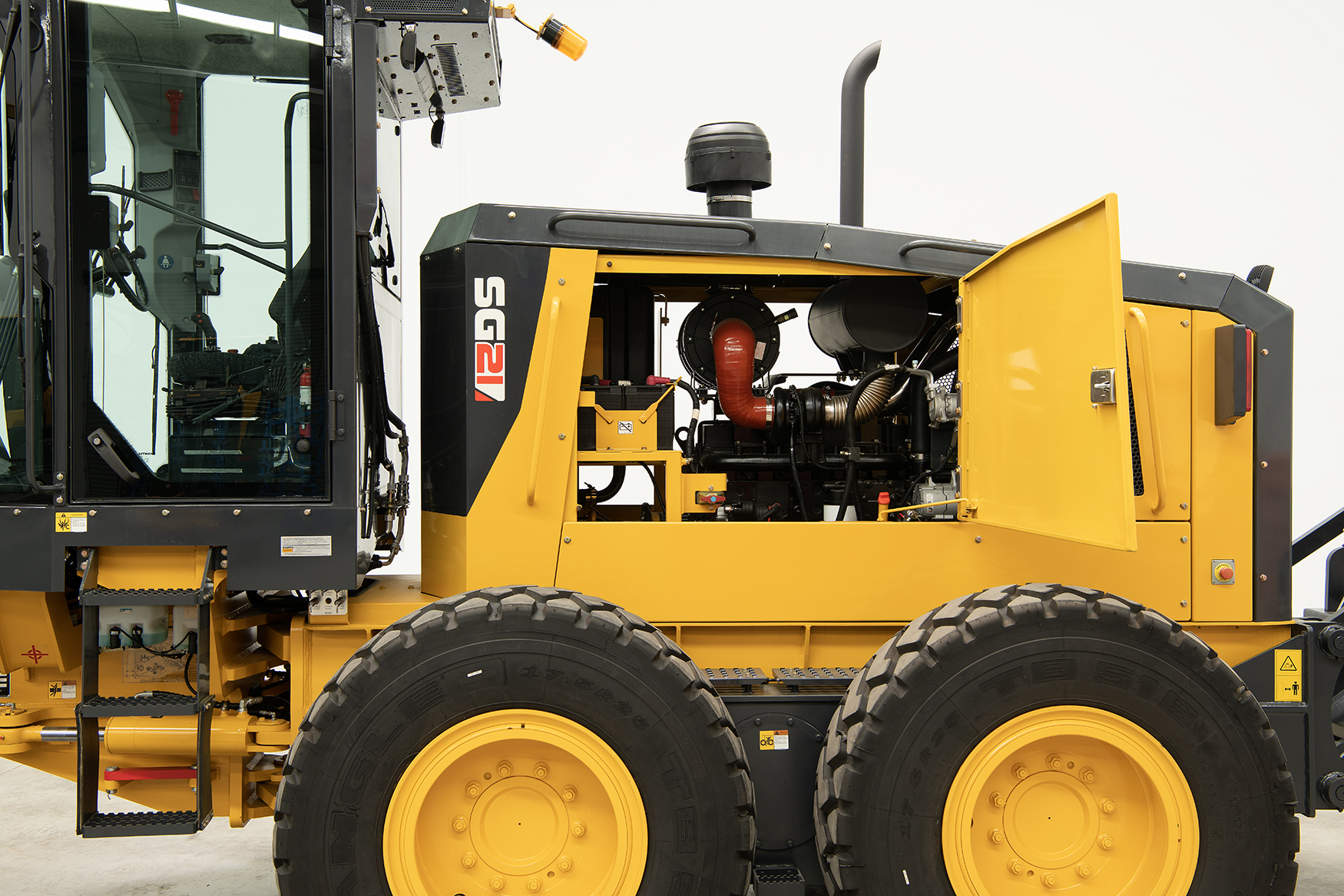

• Powerful Cummins Engine: 215 hp 8.3L engine for outstanding torque and fuel efficiency.

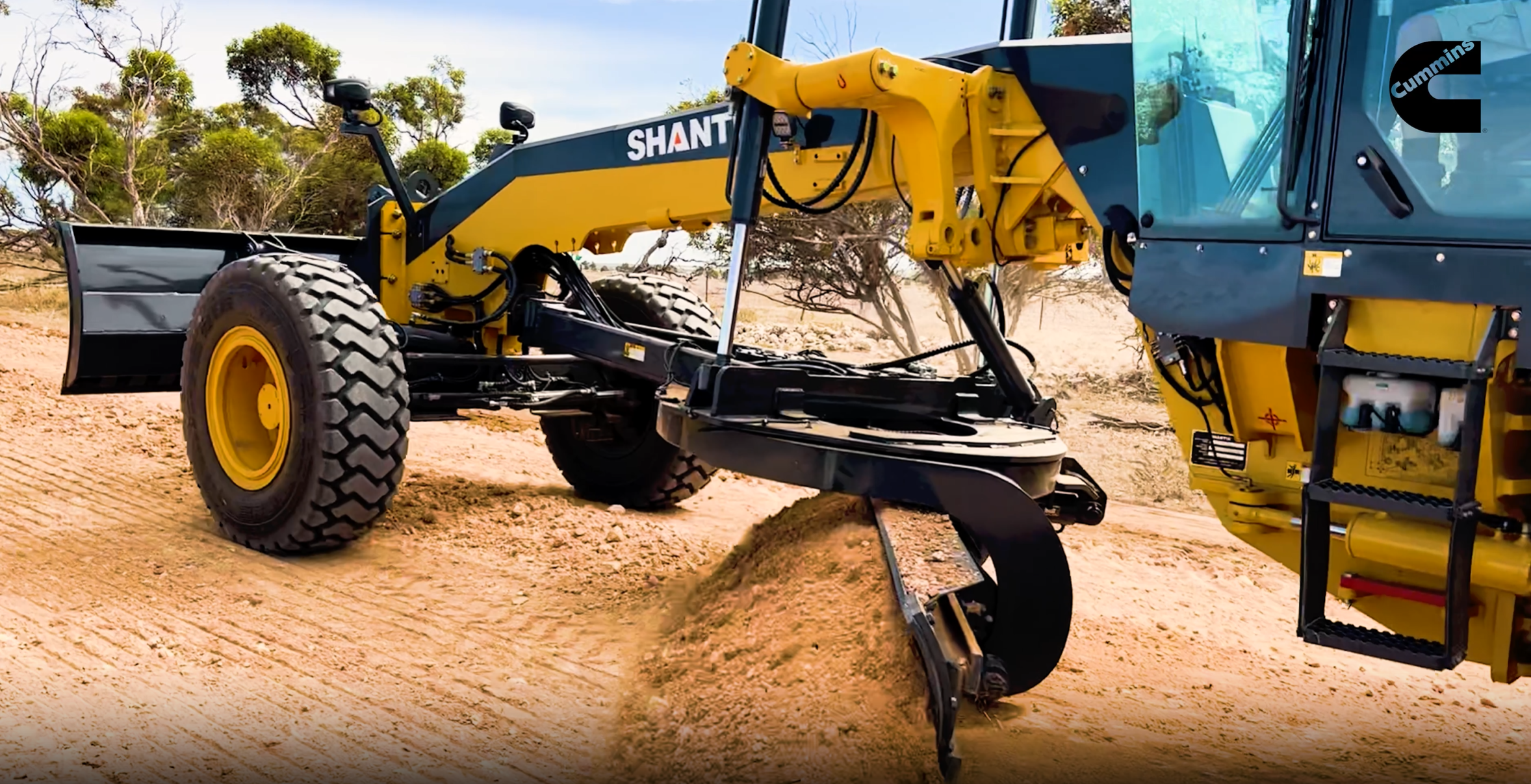

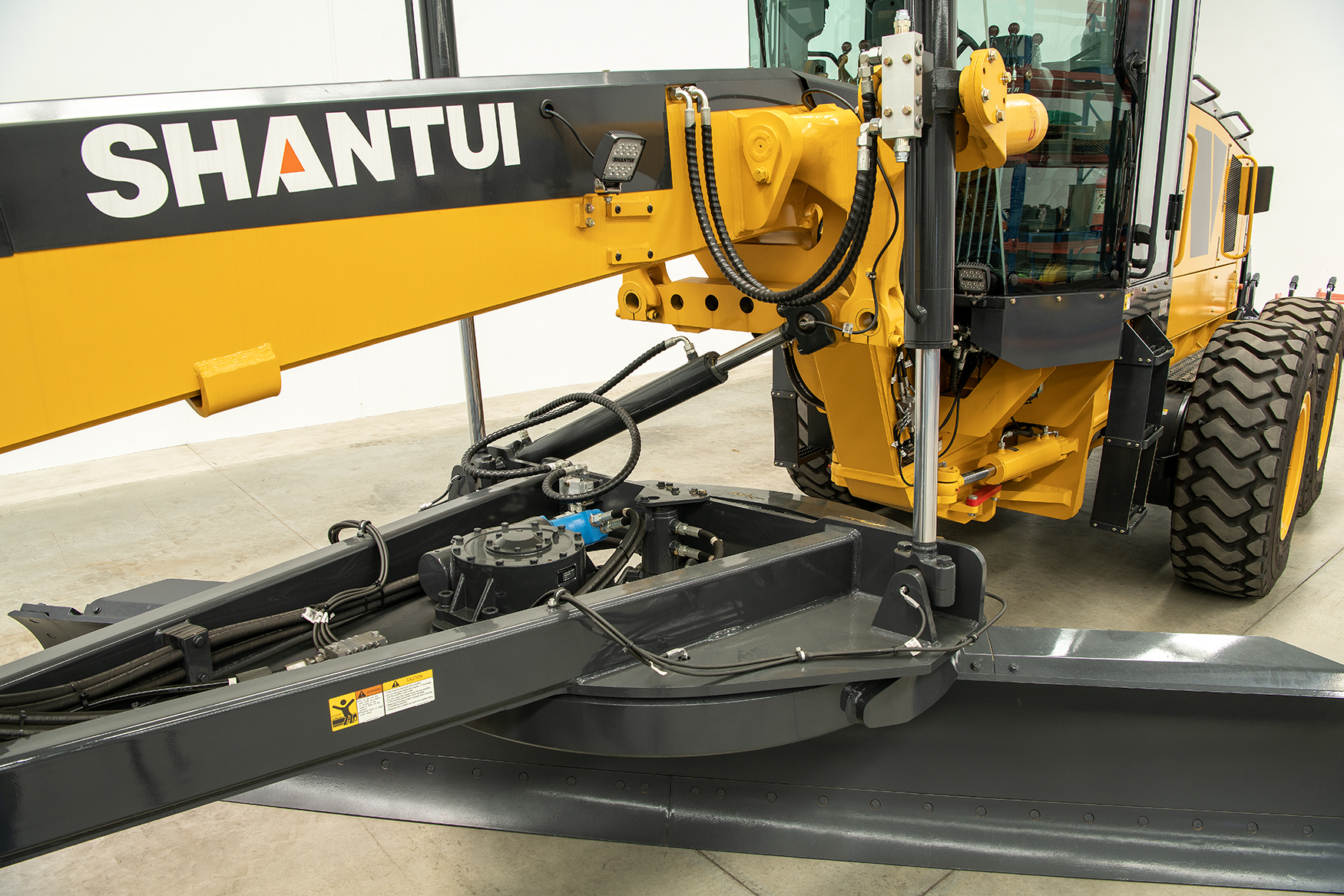

• High Precision Moldboard: 3965 mm wide moldboard with 360° rotation and a cutting depth of 970 mm.
• Efficient Transmission: Fixed-axis type electro-hydraulic control transmission with six forward and three reverse speeds.
• Strong Traction: Max traction of 93.3 kN for superior performance on varied terrains.
• Hydraulic Excellence: Tandem pump system with relief pressures up to 24 MPa for smooth, reliable operation.
• Operator Comfort: Ergonomic cab with enhanced visibility and user-friendly controls.
• Built for Heavy Workloads: Operating weight of up to 18,900 kg with optional front blade and rear ripper.

Technical Specifications

Engine: Cummins 6CTAA8.3-C215, 215 hp @ 2200 rpm
Torque: 980 N·m @ 1500 rpm
Transmission: 6 forward, 3 reverse speeds
Moldboard: 3965 mm wide, 970 mm max cutting depth
Hydraulic Relief Pressure: Up to 24 MPa
Fuel Tank Capacity: 360 L
Operating Weight: 17,000 – 18,900 kg (depending on configuration)

Why Choose the Shantui SG21 Grader?

The SG21 Grader is designed for versatility and precision, making it an essential tool for mid-to-large-scale projects. Its high-performance engine, cutting-edge hydraulics, and operator-friendly design ensure reliable and efficient operation. Paired with Shantui’s commitment to durability and backed by Evcore’s exceptional service and parts support, the SG21 stands out as a leader in its class.

About Evcore

Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we prioritise our customers by providing top-notch service, a full range of spare parts, and mobile service vehicles ready to ensure your machine keeps moving 24/7.

For more information or to arrange a demonstration of the Shantui SG21 Grader, contact us today:
Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
Email: sales@evcore.com.au
Website: shantuiaustralia.com.au
