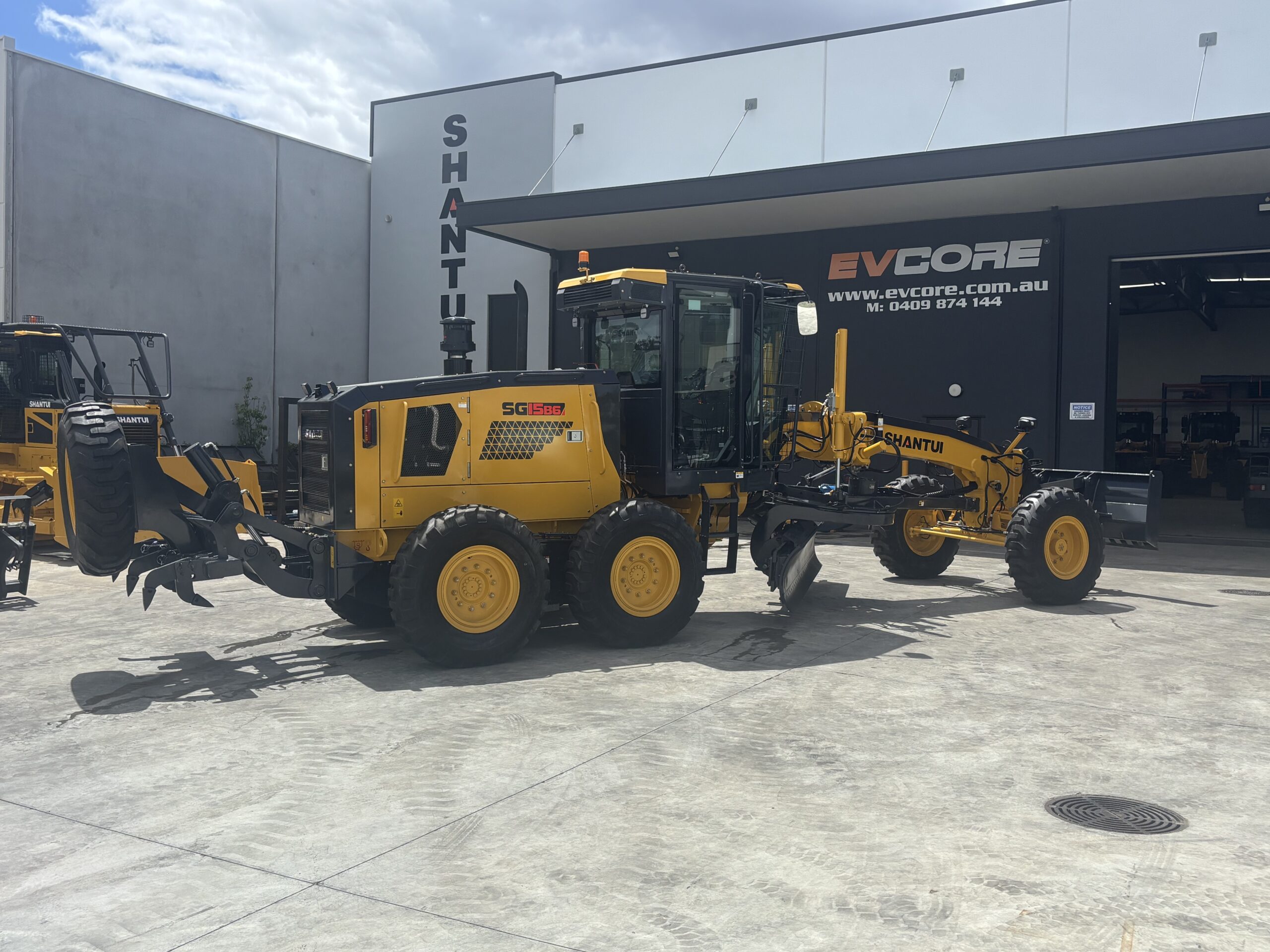

SG15 GRADER

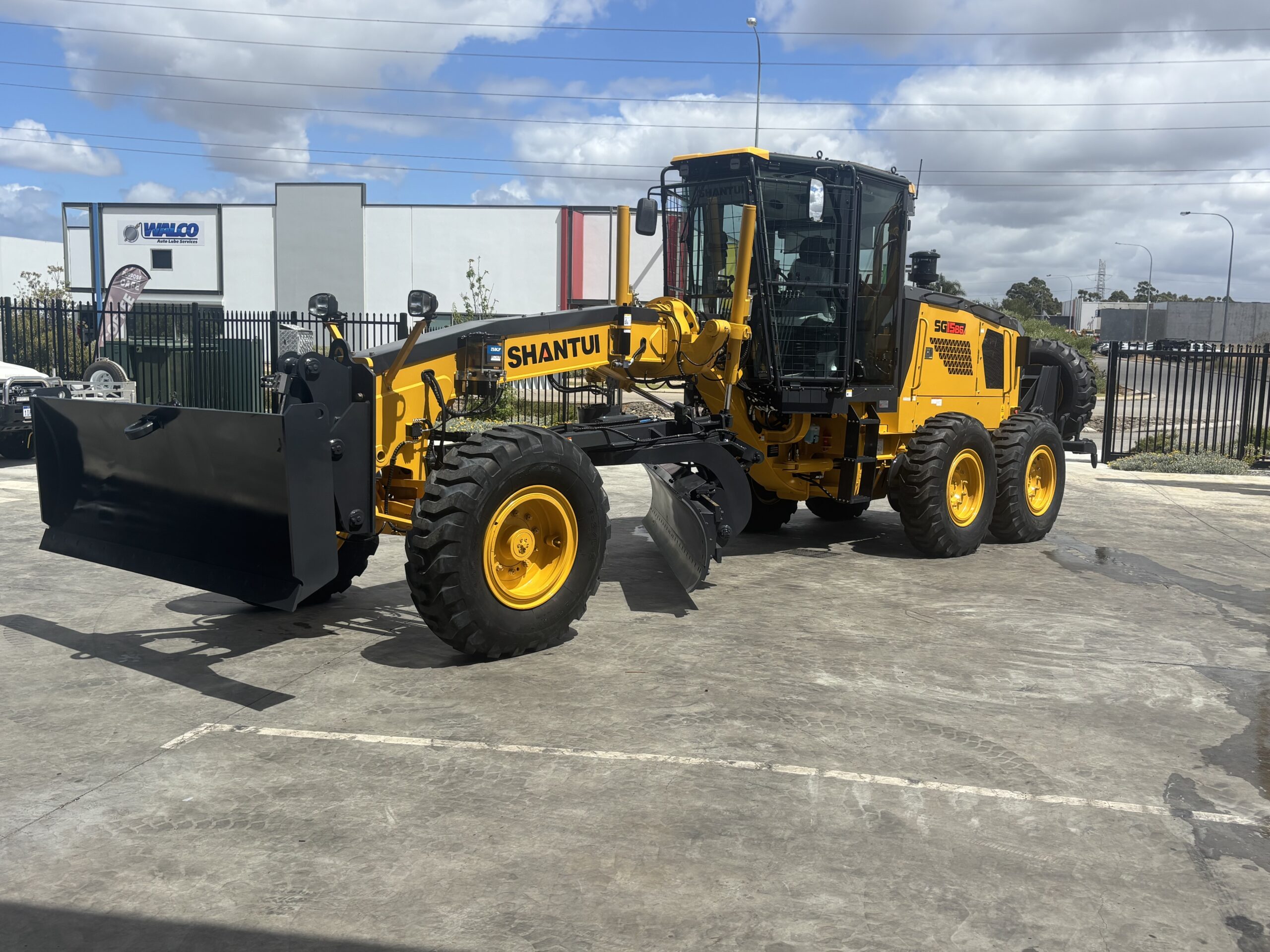

Overview of the Shantui SG15 Grader

The Shantui SG15 Grader is a compact yet powerful machine, designed to deliver precision and efficiency for a variety of applications. Equipped with a Cummins 6BTA5.9-C150 engine, the SG15 provides 150 hp and a max torque of 655 N·m, making it ideal for road construction, site preparation, and grading work. With a moldboard width of 3,660 mm and a cutting depth of 480 mm, this grader ensures smooth and accurate performance on every job.

Purpose-built for Australian conditions, the SG15 combines robust engineering with operator-focused features, ensuring reliability and comfort in the field.

Key Features

• Efficient Cummins Engine: 150 hp 5.9L engine with turbocharging for enhanced performance and fuel efficiency.

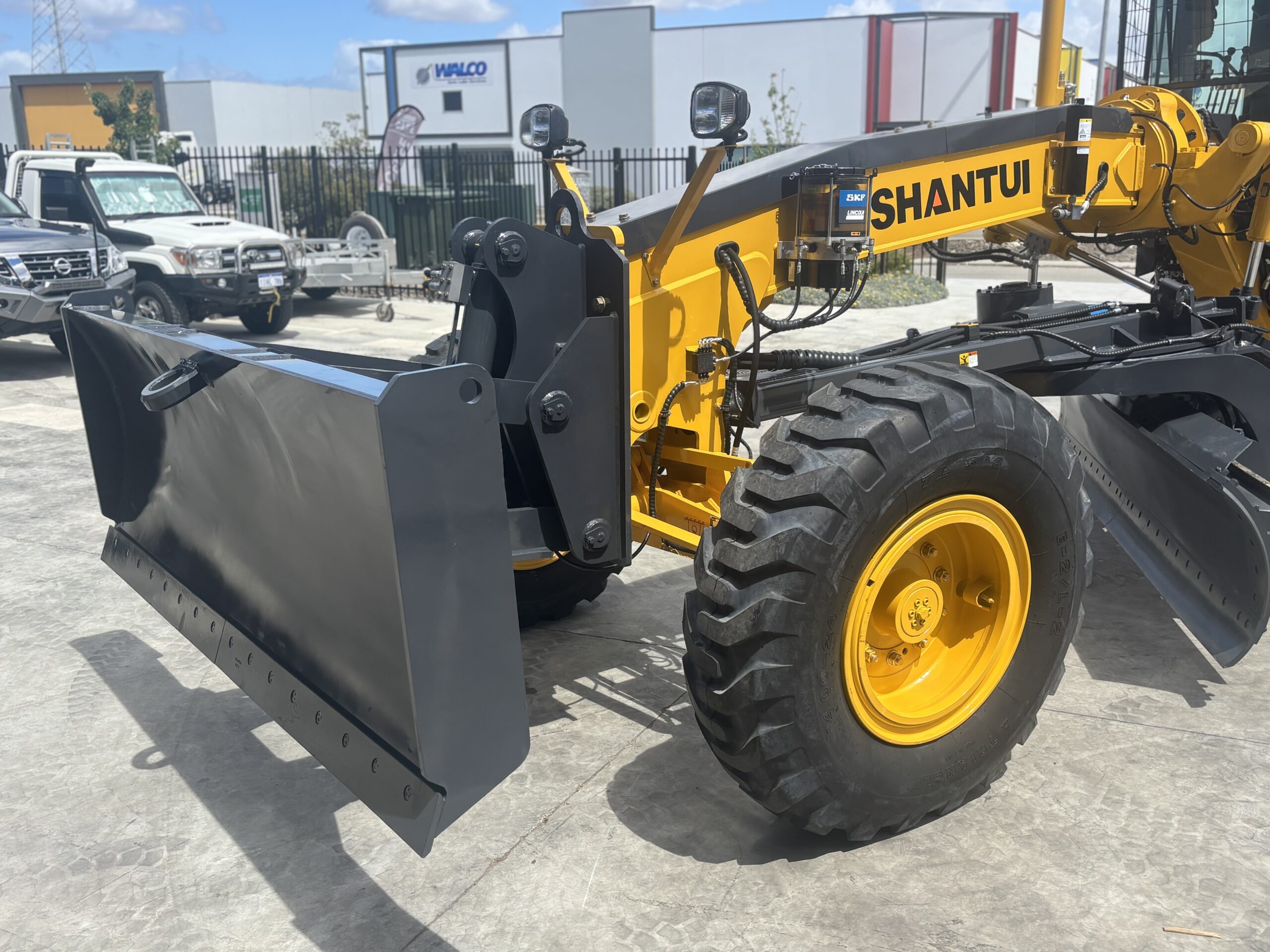

• Precision Moldboard: 3,660 mm wide moldboard with a cutting depth of 480 mm and ±90° tilt angle.
• Versatile Transmission: Fixed-axis type electro-hydraulic control transmission with six forward and three reverse speeds.
• Impressive Traction: 72 kN max traction for reliable operation on various terrains.
• Hydraulic Power Steering: Ensures smooth, precise control with a front wheel steering angle of ±45°.
• Compact Design for Tight Spaces: Minimum turning radius of 7,200 mm for excellent maneuverability.

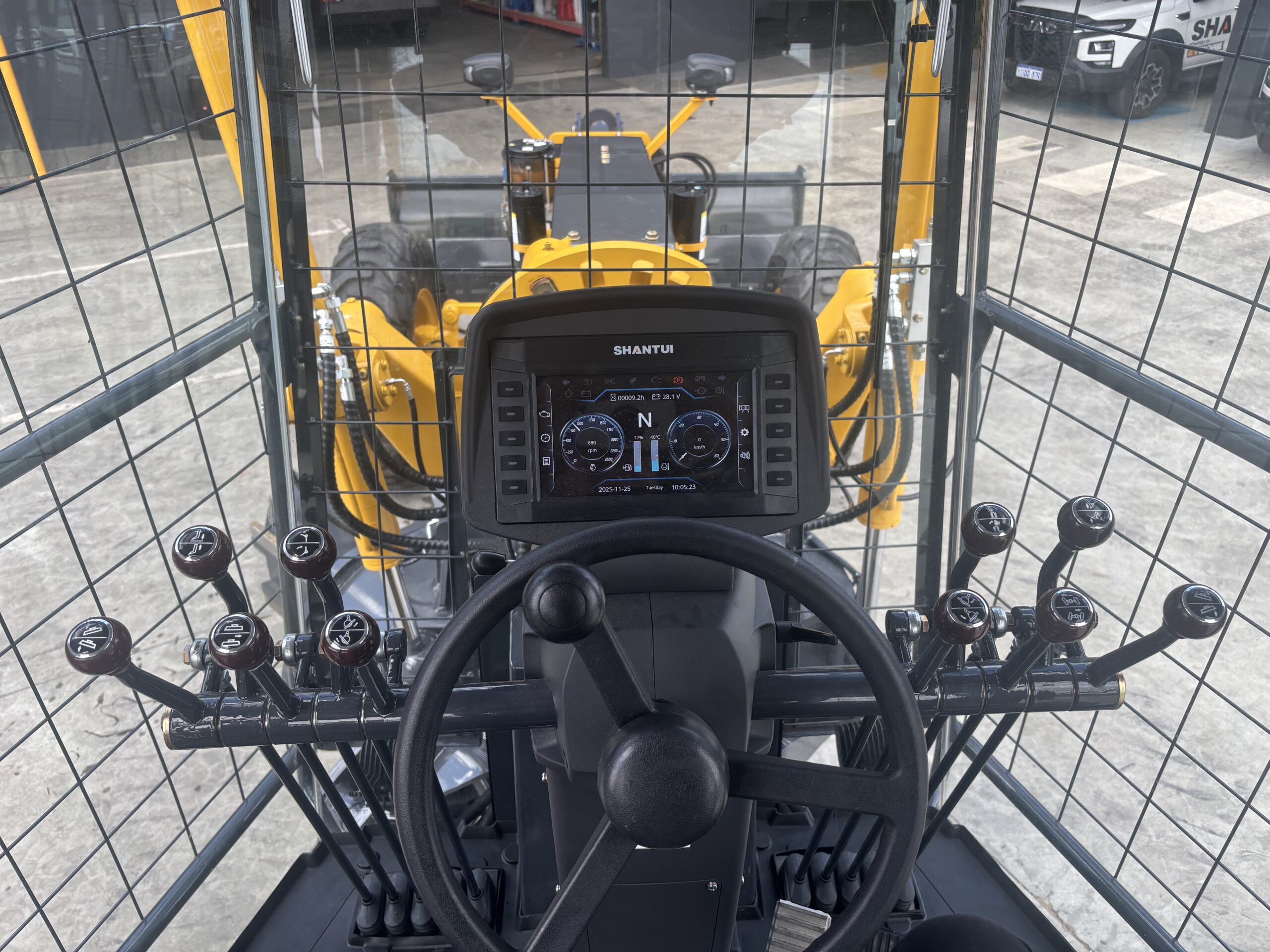

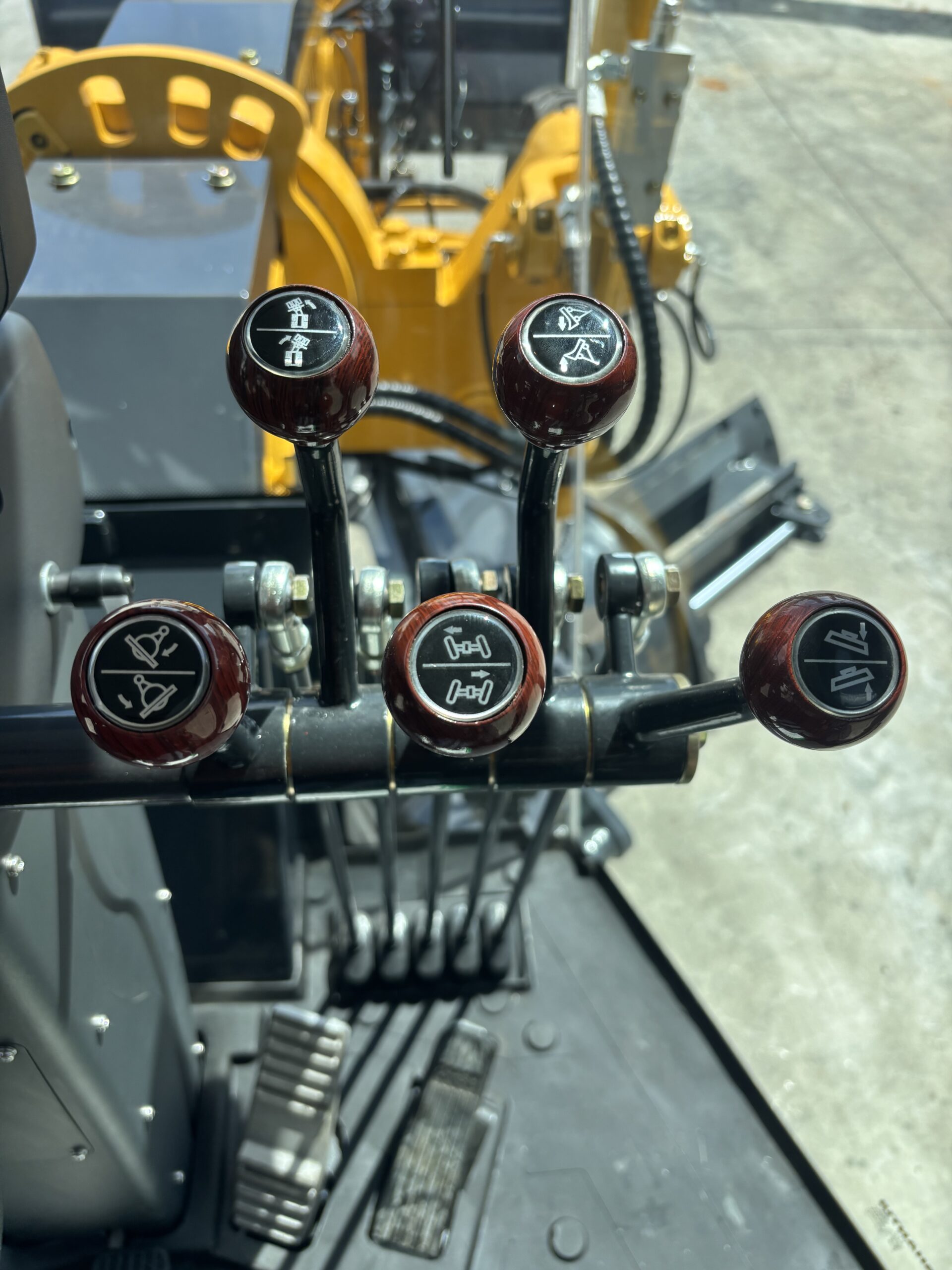

• Operator Comfort: Ergonomic cab design with superior visibility and intuitive controls.

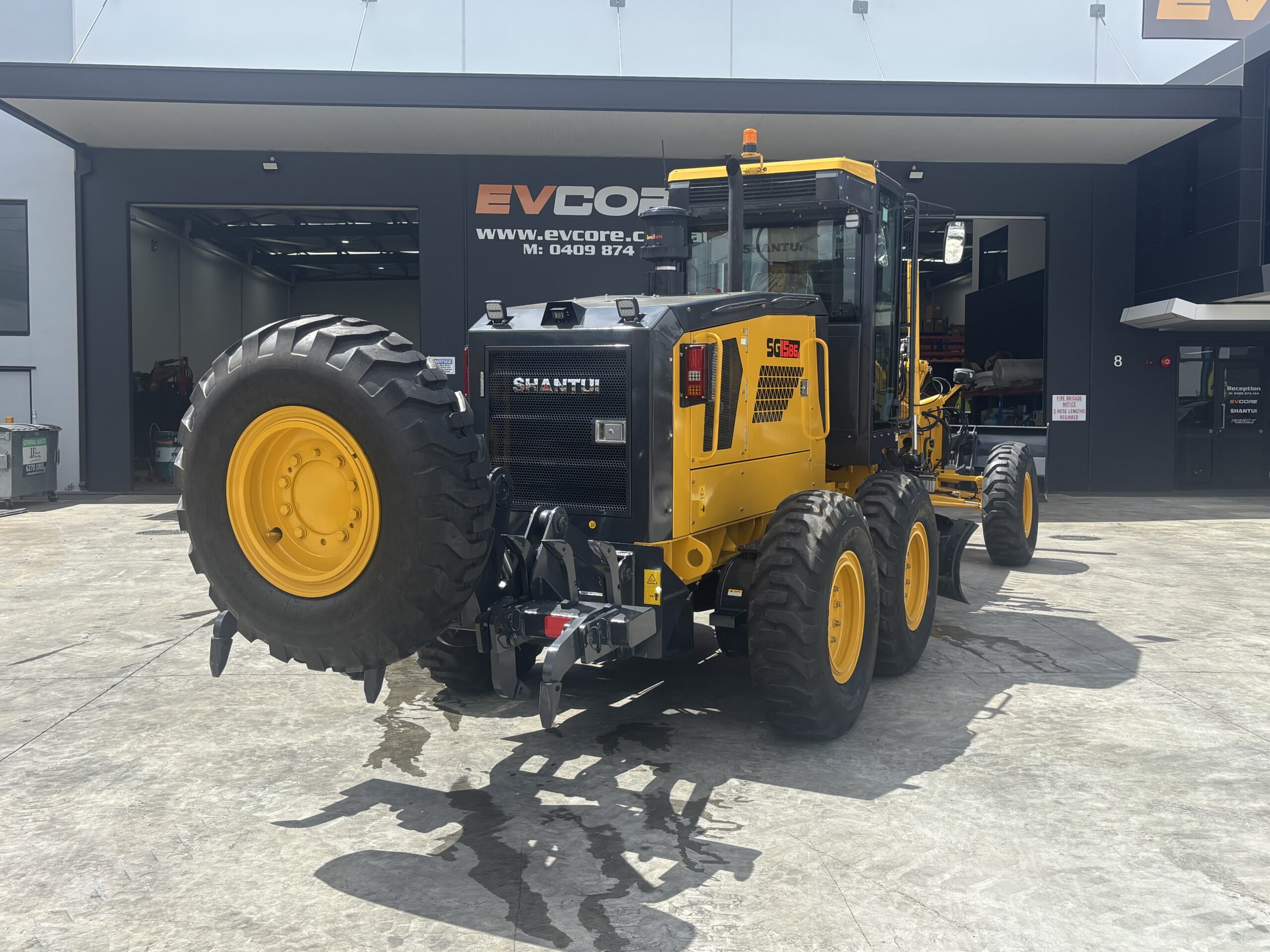

• Built for Reliability: Operating weight of up to 14,200 kg with optional rear ripper.

Technical Specifications

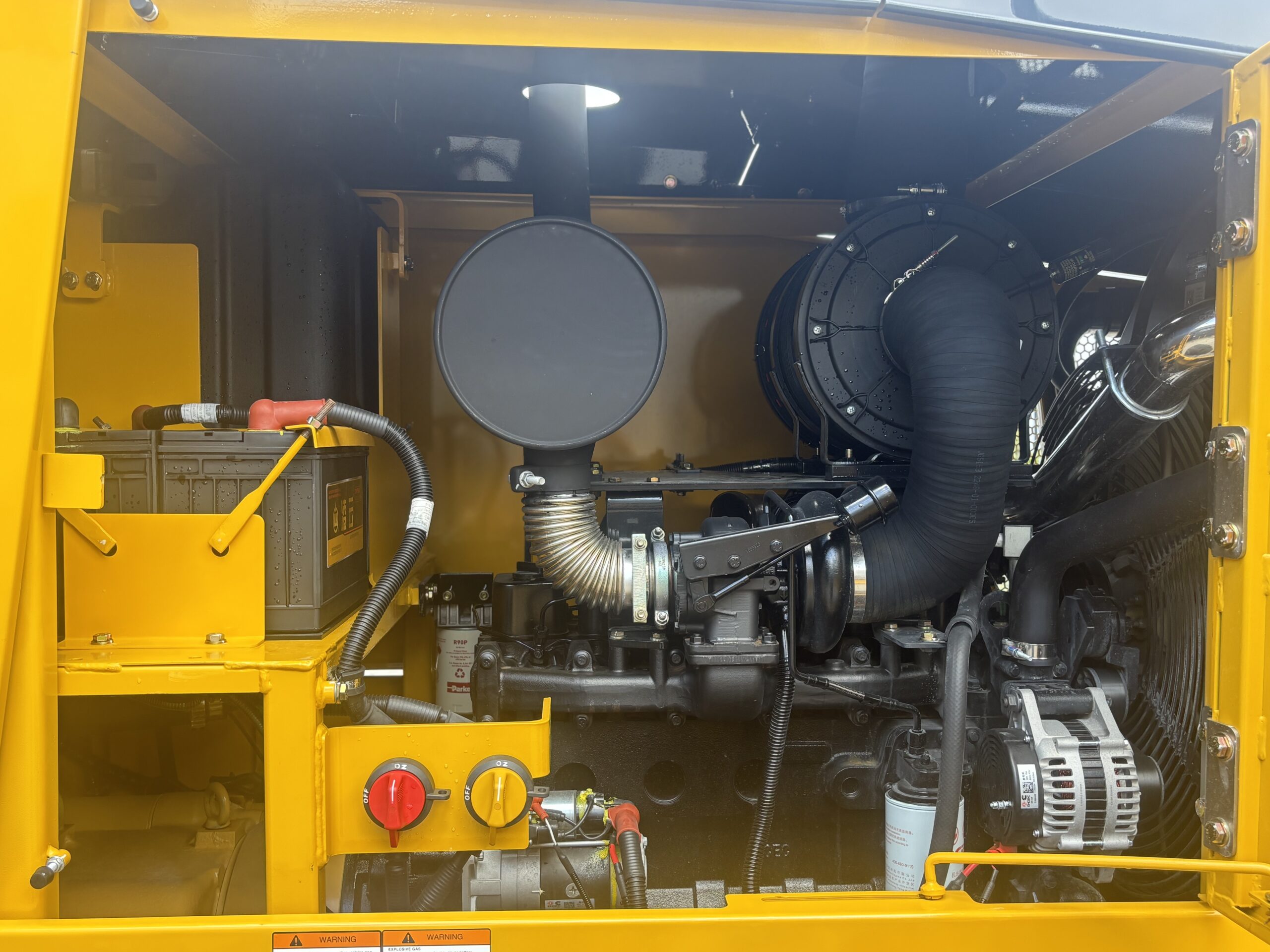

Engine: Cummins 6BTA5.9-C150, 150 hp @ 2200 rpm
Torque: 655 N·m @ 1300 rpm
Transmission: 6 forward, 3 reverse speeds
Moldboard: 3,660 mm wide, 480 mm max cutting depth
Hydraulic Relief Pressure: Up to 18 MPa
Fuel Tank Capacity: 360 L
Operating Weight: 13,000 – 14,200 kg (depending on configuration)

Why Choose the Shantui SG15 Grader?

The SG15 is perfect for smaller to mid-sized projects requiring precise grading and maneuverability. Its compact design and high-performance engine make it an excellent choice for operators looking for reliable and efficient equipment. Whether you’re maintaining rural roads or working on construction sites, the SG15 delivers the performance you need with minimal downtime.

About Evcore
Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we prioritise our customers by providing top-notch service, a full range of spare parts, and mobile service vehicles ready to ensure your machine keeps moving 24/7.

For more information or to arrange a demonstration of the Shantui SG15 Grader, contact us today:
Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
Email: sales@evcore.com.au
Website: shantuiaustralia.com.au
