SD34 BULLDOZER
$11.00
Overall Weight
36,200 Kg
Engine Model
Cummims NTA855-C360
Engine Power
257kW(349hp) @ 2000rpm
DOWNLOAD PRODUCT PDF
CLOSE
SD34 BULLDOZER
Overall Weight
36,200 Kg
Engine Model
Cummims NTA855-C360
Engine Power
257kW(349hp) @ 2000rpm
CLOSE
REQUEST QUOTE
SD34 BULLDOZER
Overall Weight
36,200 Kg
Engine Model
Cummims NTA855-C360
Engine Power
257kW(349hp) @ 2000rpm

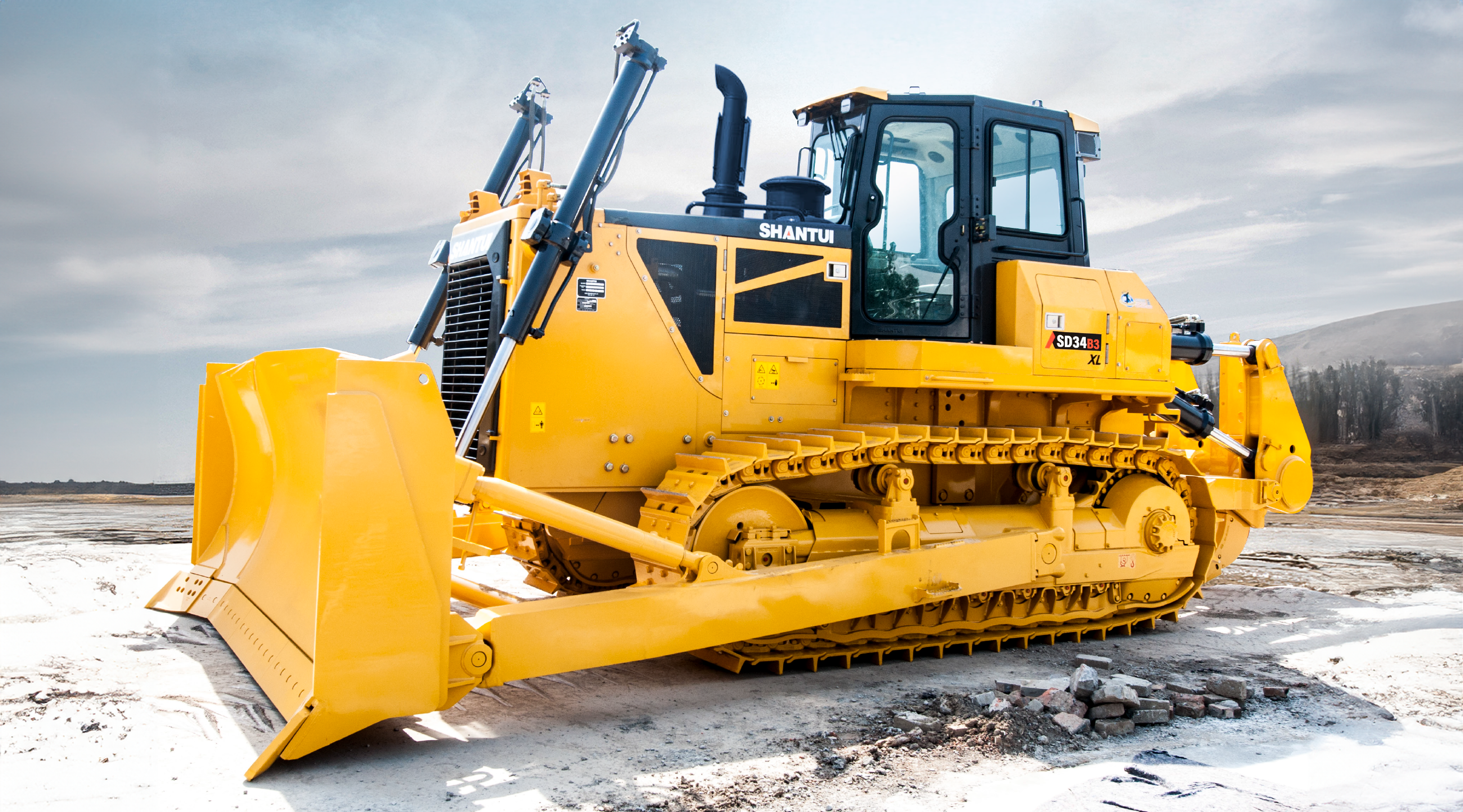

Overview of the Shantui SD34 Dozer
The Shantui SD34 Dozer is a high-performance machine designed for demanding applications in construction, mining, and large-scale earthmoving. Powered by the Cummins NTA855-C360 engine, it delivers 257 kW (345 hp) at 2000 rpm with a maximum torque of 1509 Nm at 1300-1500 rpm. Equipped with an electric control planetary gear transmission and torqflow drive system, the SD34 ensures smooth operation, high efficiency, and exceptional durability in tough working conditions. Its Semi-U blade, powerful single-shank ripper, and robust undercarriage make it a reliable choice for heavy-duty projects.
Key Features
✔️ Powerful Engine – The Cummins NTA855-C360 engine delivers 257 kW (345 hp) with a mechanical fan cooling system for maximum efficiency.
✔️ Advanced Transmission – 3-speed forward and 3-speed reverse torqflow transmission with hydraulic actuation for smooth operation.
✔️ Heavy-Duty Blade – The Semi-U blade has a capacity of 9 m³, ideal for pushing large volumes of material.
✔️ High-Capacity Ripper – The single-shank ripper delivers a ripping depth of 1250 mm, ensuring powerful penetration in tough soil conditions.
✔️ Strong Chassis & Undercarriage – Suspended equalizer bar design with track shoe options up to 710 mm for enhanced stability.
Technical Specifications
🔹 Engine: Cummins NTA855-C360, 257 kW (345 hp) @ 2000 rpm
🔹 Transmission: Electric control planetary gear, 3 forward / 3 reverse gears
🔹 Blade Capacity: 9 m³ Semi-U blade
🔹 Ripper: Single-shank, 1250 mm max depth
🔹 Fuel Capacity: 620 L
🔹 Operating Weight: 36,000 kg
🔹 Track Gauge: 2140 mm, Track Shoe Width: 560-710 mm
🔹 Max Blade Lifting Height: 1400 mm
🔹 Max Digging Depth: 560 mm
Why Choose the Shantui SD34 Dozer?
The SD34 is built for power, durability, and efficiency, making it the ideal machine for heavy-duty earthmoving and mining operations. With a high-torque Cummins engine, durable undercarriage, and powerful blade and ripper systems, it delivers exceptional performance in rugged conditions. Whether you’re grading, ripping, or bulk pushing, the SD34 is a cost-effective, high-performing solution for demanding job sites.
About Evcore
Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we provide top-tier customer support, a full range of spare parts, and mobile service vehicles to keep your machines running 24/7.
📞 0400 459 097 (SA) | 0409 874 144 (WA)
📧 sales@evcore.com.au
🌐 shantuiaustralia.com.au
ENGINE
| Engine | Cummins NTA855-C360 |
| Emission | China-III |
| Rated revolution | 2000 rpm |
| Gross power | 257 kW (345 hp) |
| No. of cylinder-bore×stroke | 6 × 140 mm × 152 mm |
| Displacement | 14L |
| Max. torque | 1509 Nm @ 1300-1500 rpm |
| Cooling system | Mechanical fan |
DRIVE SYSTEM
| Drive system | Electric control planetary gear transmission with hydraulic actuation, ensuring smooth power delivery and efficiency. |
| System overflow pressure | 28000 kPa |
| Traveling speed- Forward | 0~10.3 km/h |
| Traveling speed- Backward | 0~12.8 km/h |
| Steering | Hydraulic power-assisted steering for precise control and easy maneuverability. |
| Brake | Wet, multi-disc brakes, spring-applied and hydraulic-released for maximum stopping power. |
| Final drive | Primary spur gear + planetary reduction for durability and performance. |
CHASSIS SYSTEM - RS
| Type | Oscillating equalizer bar, semi-rigid suspension |
| Track shoe type | Single grouser |
| Track gauge | 2140 mm |
| Width of track shoe | 560 mm / 610 mm / 710 mm |
| Track grounding length | 2935 mm |
| Track grounding area | 60,290 cm² |
| Number of track shoe | 41 pcs/side |
| Grounding pressure (standard configuration) |
108 kPa |
| Number of carrier roller | 2 pcs/side |
| Number of track roller | 7 pcs/side |
| Pitch | 216 mm |
REFILL CAPACITY
| Fuel capacity | 620L |
| Coolant liquid capacity | 90L |
| Engine oil capacity | 28L |
| Hydraulic oil tank (travel) | 240L |
| Final drive | 45L (22.5L per side) |
| Transfer case | 45L |
OPERATING WEIGHT- RS
| Operating weight | 36,000kg (79,366 lb.) |
BLADE- RS
| Blade type | Semi-U Blade |
| Blade capacity | 9.0 m³ (11.8 cu. yd.) |
DIMENSION- RS
| Machine height | 3525 mm (139 in.) |
| Track grouser height | 65 mm (2.6 in.) |
| Ground clearance | 500 mm (19.7 in.) |
| Machine length (with ripper) | 6880 mm (271 in.) |
| Machine length (without ripper) | 5590 mm (220 in.) |
| Max. lifting height of blade | 1400 mm (55 in.) |
| Max. digging depth of blade | 560 mm (22 in.) |
| Digging angle of blade | 55° ±3° |
| Blade width | 4130 mm (162.6 in.) |
| Blade height | 1590 mm (62.6 in.) |
| Blade tilt height | 960 mm (37.8 in.) |
| Width from end of left track shoe to end of right track shoe | 2760 mm (108.7 in.) |
RIPPER
| Type | Single Shank ripper |
| Ripping Depth of Ripper | 1250 mm (49.2 in.) |
| Lifting Height of Ripper | 965 mm (38 in.) |
| Length of Ripper(Maximum Subsoiling Position) |
2500 mm (98.4 in.) |
| Width of Ripper | 1520 mm (59.8 in.) |
| Tilt Angle (Maximum Lift Position) | 30° |
