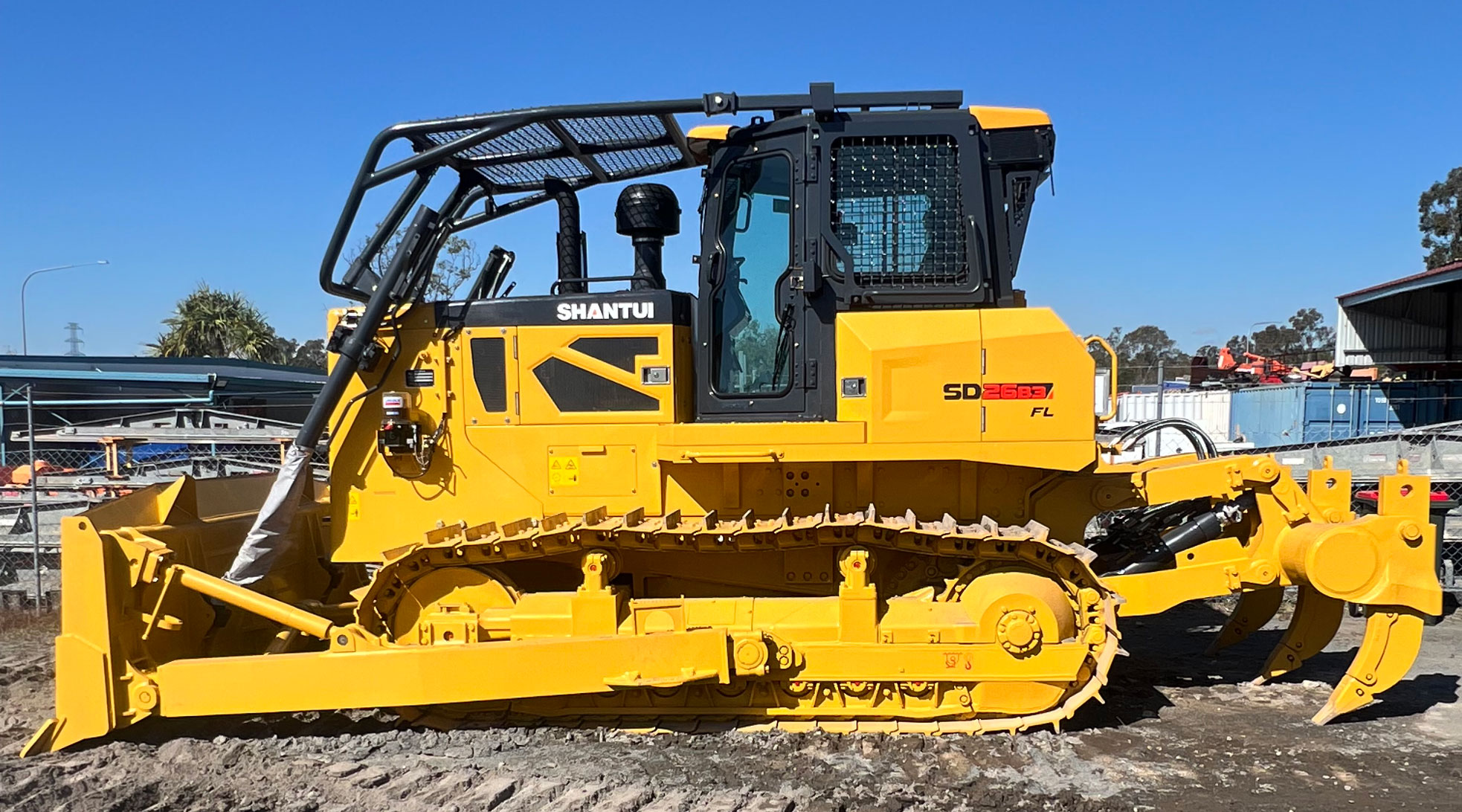

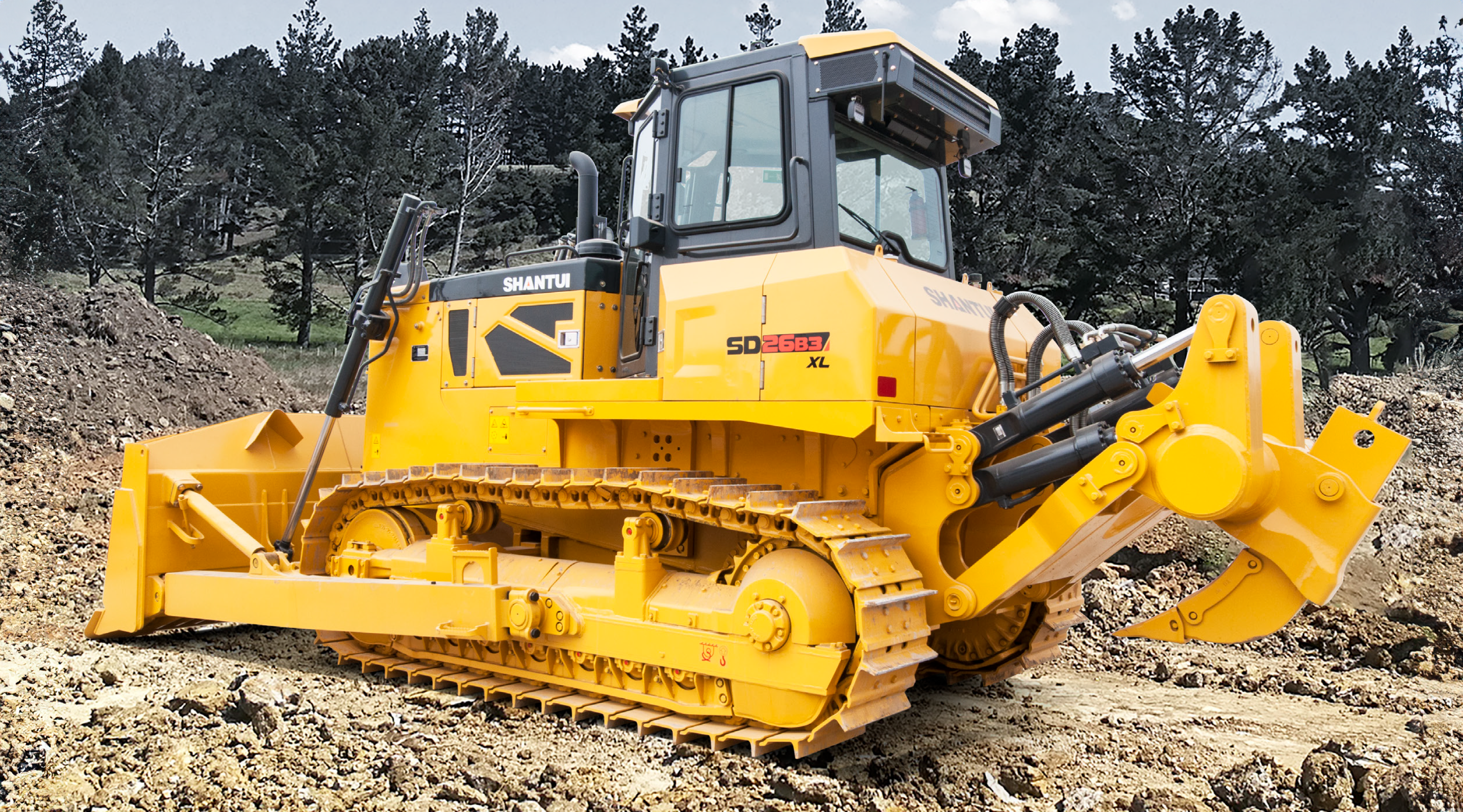

Overview of the Shantui SD26 Dozer
The Shantui SD26 Dozer is a powerful and efficient machine designed for demanding applications in construction, earthmoving, and infrastructure projects. Equipped with the Cummins NT855-C280 engine, it delivers 187 kW (251 hp) at 1850 rpm, providing the strength needed for tough job site conditions. Featuring an advanced electric control planetary gear transmission and torqflow drive system, the SD26 ensures smooth operation, high efficiency, and superior durability. Its Semi-U blade, robust three-shank ripper, and heavy-duty undercarriage make it an excellent choice for handling challenging terrains.
Key Features
✔️ Powerful Engine – The Cummins NT855-C280 engine delivers 187 kW (251 hp) with a mechanical fan cooling system for optimal performance.
✔️ Advanced Transmission – 3-speed forward and 3-speed reverse torqflow transmission, hydraulically actuated for smooth and efficient operation.
✔️ Heavy-Duty Blade – The Semi-U blade has a capacity of 7 m³, ideal for pushing and leveling large volumes of material.
✔️ High-Capacity Ripper – Equipped with a three-shank ripper for superior penetration, with a maximum ripping depth of 666 mm.
✔️ Strong Chassis & Undercarriage – A suspended equalizer bar design with track shoe options up to 660 mm for enhanced stability and traction.
Technical Specifications
🔹 Engine: Cummins NT855-C280, 187 kW (251 hp) @ 1850 rpm
🔹 Transmission: Electric control planetary gear, 3 forward / 3 reverse gears
🔹 Blade Capacity: 7 m³ Semi-U blade
🔹 Ripper: Three-shank, max depth 666 mm
🔹 Fuel Capacity: 480 L
🔹 Operating Weight: 24,200 kg
🔹 Track Gauge: 2000 mm, Track Shoe Width: 560-660 mm
🔹 Max Blade Lifting Height: 1210 mm
🔹 Max Digging Depth: 540 mm
Why Choose the Shantui SD26 Dozer?
The SD26 is built for power, durability, and efficiency, making it the ideal bulldozer for earthmoving, construction, and large-scale site preparation. With a high-torque Cummins engine, advanced torqflow transmission, and a robust blade and ripper system, it delivers exceptional performance in tough working environments. Whether you’re leveling terrain, excavating, or ripping through compacted materials, the SD26 is a cost-effective, high-performing solution for demanding job sites.
About Evcore
Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we provide top-tier customer support, a full range of spare parts, and mobile service vehicles to keep your machines running 24/7.
📞 0400 665 088 | 0400 459 097
📧 lewis@evcore.com.au
🌐 shantuiaustralia.com.au
ENGINE
| Engine | Cummins NT855-C280 |
| Emission | China-I |
| Rated revolution | 1850 rpm |
| Gross power | 187 kW (251 hp) |
| No. of cylinder-bore×stroke | 6 × 140 mm × 152 mm |
| Displacement | 14.01 L |
| Max. torque | 1085 Nm @ 1300 rpm |
| Cooling system | Mechanical fan |
DRIVE SYSTEM
| Drive system | Electric control planetary gear transmission with hydraulic actuation, ensuring smooth power delivery and efficiency. |
| System overflow pressure | Not specified |
| Traveling speed – Forward | F1: 0~3.7 km/h, F2: 0~6.7 km/h, F3: 0~11.5 km/h |
| Traveling speed – Backward | R1: 0~4.4 km/h, R2: 0~7.9 km/h, R3: 0~13.6 km/h |
| Steering | Wet multiple disc clutch, hydraulically actuated for smooth and efficient steering. |
| Brake | Wet, contracting band brakes, foot-operated with hydraulic booster. |
| Final drive | Spur gear, double reduction with splash lubrication for durability and performance. |
CHASSIS SYSTEM - RS
| Type | Swing type of sprayed beam, suspended structure of equalizer bar |
| Track shoe type | Single grouser |
| Track gauge | 2000 mm |
| Width of track shoe | 560 mm / 610 mm / 660 mm |
| Track grounding length | 3050 mm |
| Track grounding area | 38,317 cm² |
| Number of track shoe | 41 pcs/side |
| Grounding pressure (standard configuration) |
62 kPa |
| Number of carrier roller | 2 pcs/side |
| Number of track roller | 7 pcs/side |
| Pitch | 216 mm |
REFILL CAPACITY
| Fuel capacity | 480L |
| Coolant liquid capacity | 79L |
| Engine oil capacity | 45L |
| Hydraulic oil tank | 110L |
| Transmission | 122L |
| Final drive | 82L |
OPERATING WEIGHT- RS
| Operating weight | 24,200 kg (53,352 lb.) |
BLADE- RS
| Blade type | Semi-U Blade |
| Blade capacity | 7.0 m³ (9.2 cu. yd.) |
DIMENSION- RS
| Machine height | 3460 mm (136.2 in.) |
| Track grouser height | 72 mm (2.8 in.) |
| Ground clearance | 405 mm (15.9 in.) |
| Machine length (with draw bar) | 5980 mm (235.4 in.) |
| Max. lifting height of blade | 1210 mm (47.6 in.) |
| Max. digging depth of blade | 540 mm (21.3 in.) |
| Digging angle of blade | 55° ±3° |
| Blade width | 3642 mm (143.4 in.) |
| Blade height | 1580 mm (62.2 in.) |
| Width from end of left track shoe to end of right track shoe | 2560 mm (100.8 in.) |
RIPPER
| Type | Single Shank Ripper |
| Ripping Depth of Ripper | 666 mm (26.2 in.) |
| Lifting Height of Ripper | 555 mm (21.9 in.) |
| Length of Ripper (Maximum Subsoiling Position) | 1781 mm (70.1 in.) |
| Width of Ripper | 1380 mm (54.3 in.) |
| Tilt Angle (Maximum Lift Position) | 25.5° |
