SD17 BULLDOZER
$13.00
Overall Weight
17,500 kg
Engine Model
Weichai WD10G190E214
Engine Power
140 kW (188 hp) @ 1900 rpm
DOWNLOAD PRODUCT PDF
CLOSE
SD17 BULLDOZER
Overall Weight
17,500 kg
Engine Model
Weichai WD10G190E214
Engine Power
140 kW (188 hp) @ 1900 rpm
CLOSE
REQUEST QUOTE
SD17 BULLDOZER
Overall Weight
17,500 kg
Engine Model
Weichai WD10G190E214
Engine Power
140 kW (188 hp) @ 1900 rpm

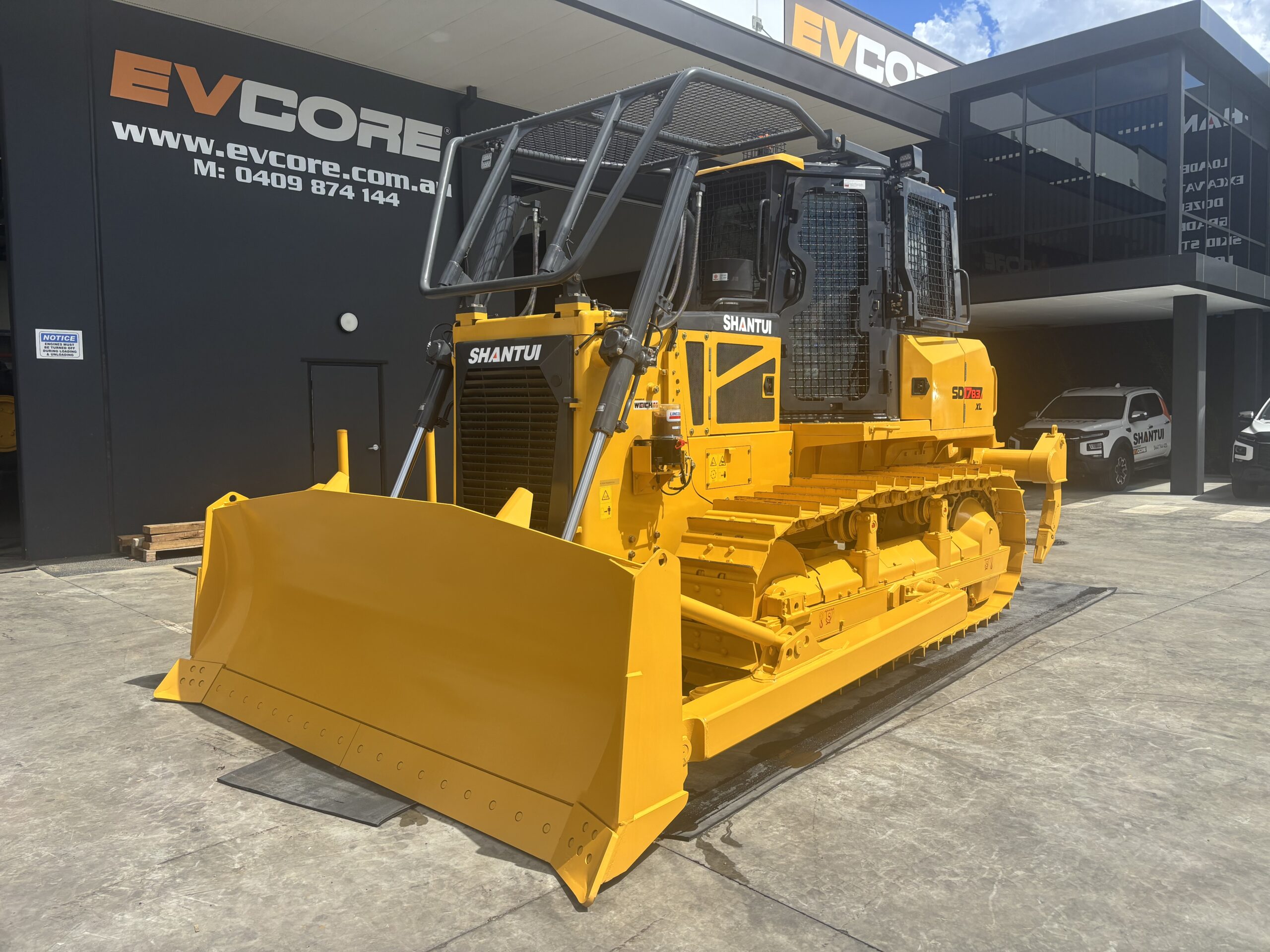

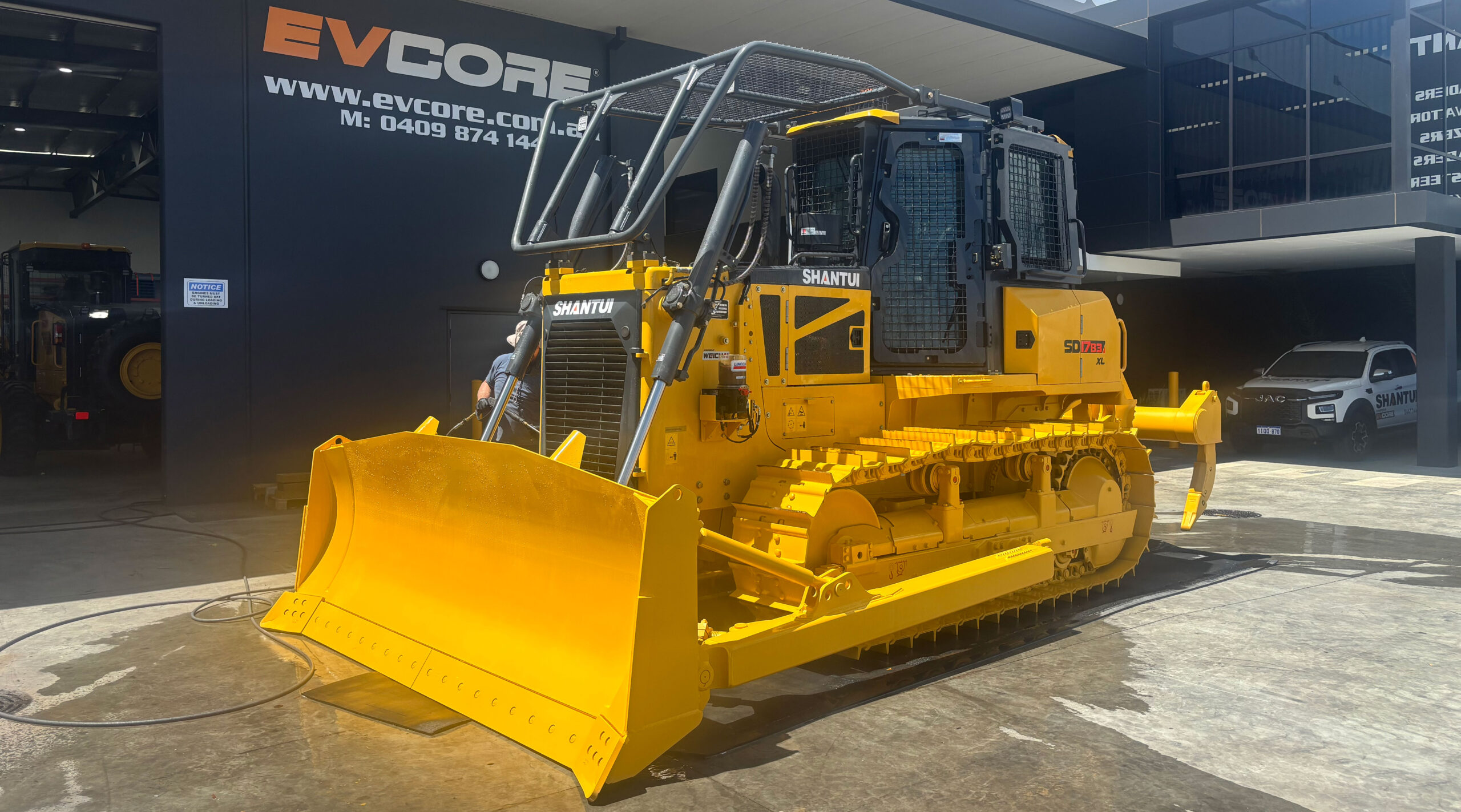

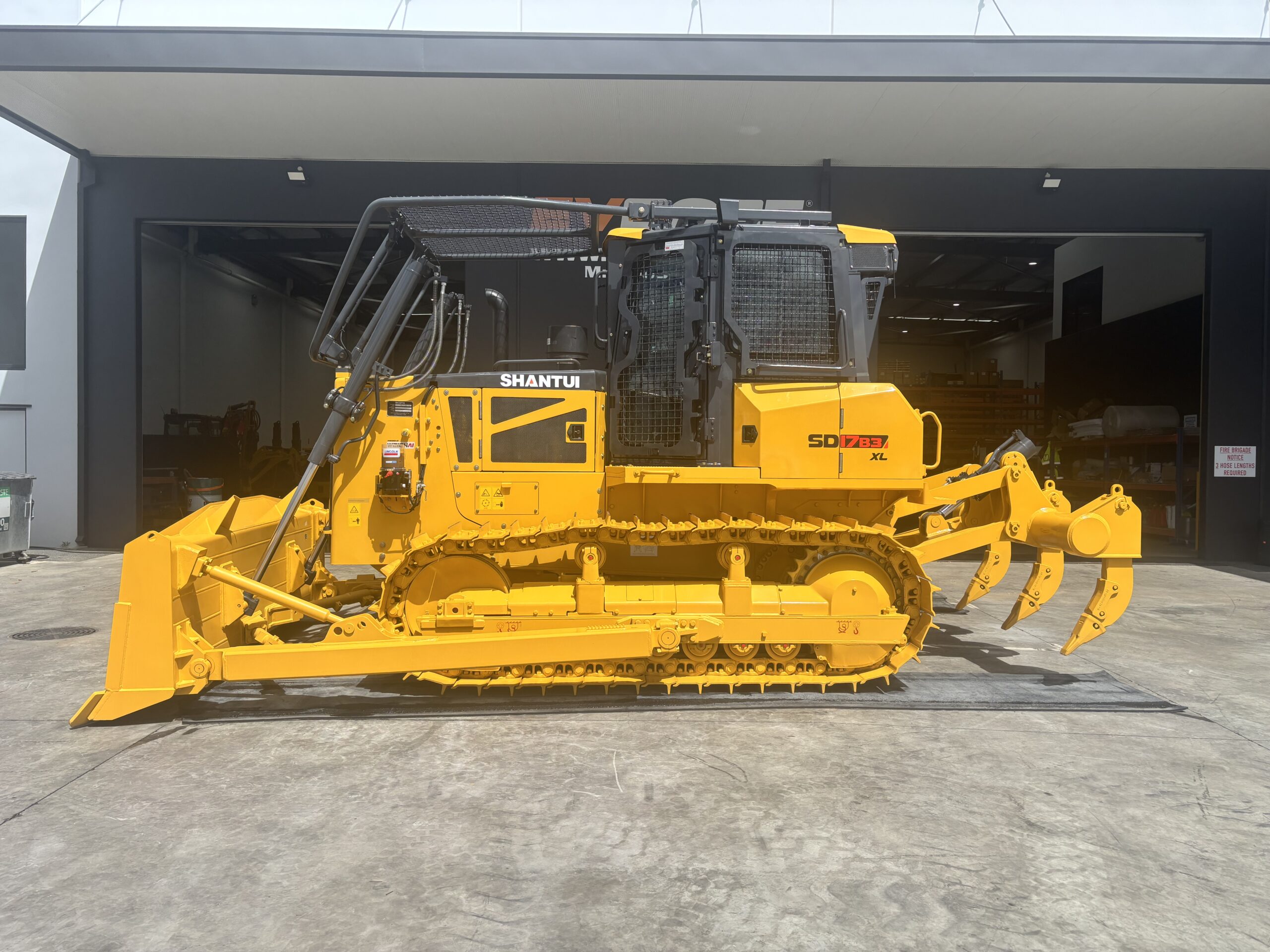

Overview of the Shantui SD17 Dozer
The Shantui SD17 Dozer is a versatile and powerful machine designed for demanding applications in construction, earthmoving, and site preparation. Equipped with the Weichai WD10G190E214 engine, it delivers 140 kW (188 hp) at 1900 rpm, ensuring reliable performance in tough job site conditions. Featuring an advanced electric control planetary gear transmission and torqflow drive system, the SD17 provides smooth operation, high efficiency, and exceptional durability. Its Straight-Tilt blade, three-shank ripper, and heavy-duty undercarriage make it an excellent choice for a wide range of earthmoving tasks.
Key Features
✔️ Powerful Engine – The Weichai WD10G190E214 engine delivers 140 kW (188 hp) with a mechanical fan cooling system for maximum efficiency.
✔️ Advanced Transmission – 3-speed forward and 3-speed reverse torqflow transmission, hydraulically actuated for smooth and precise operation.

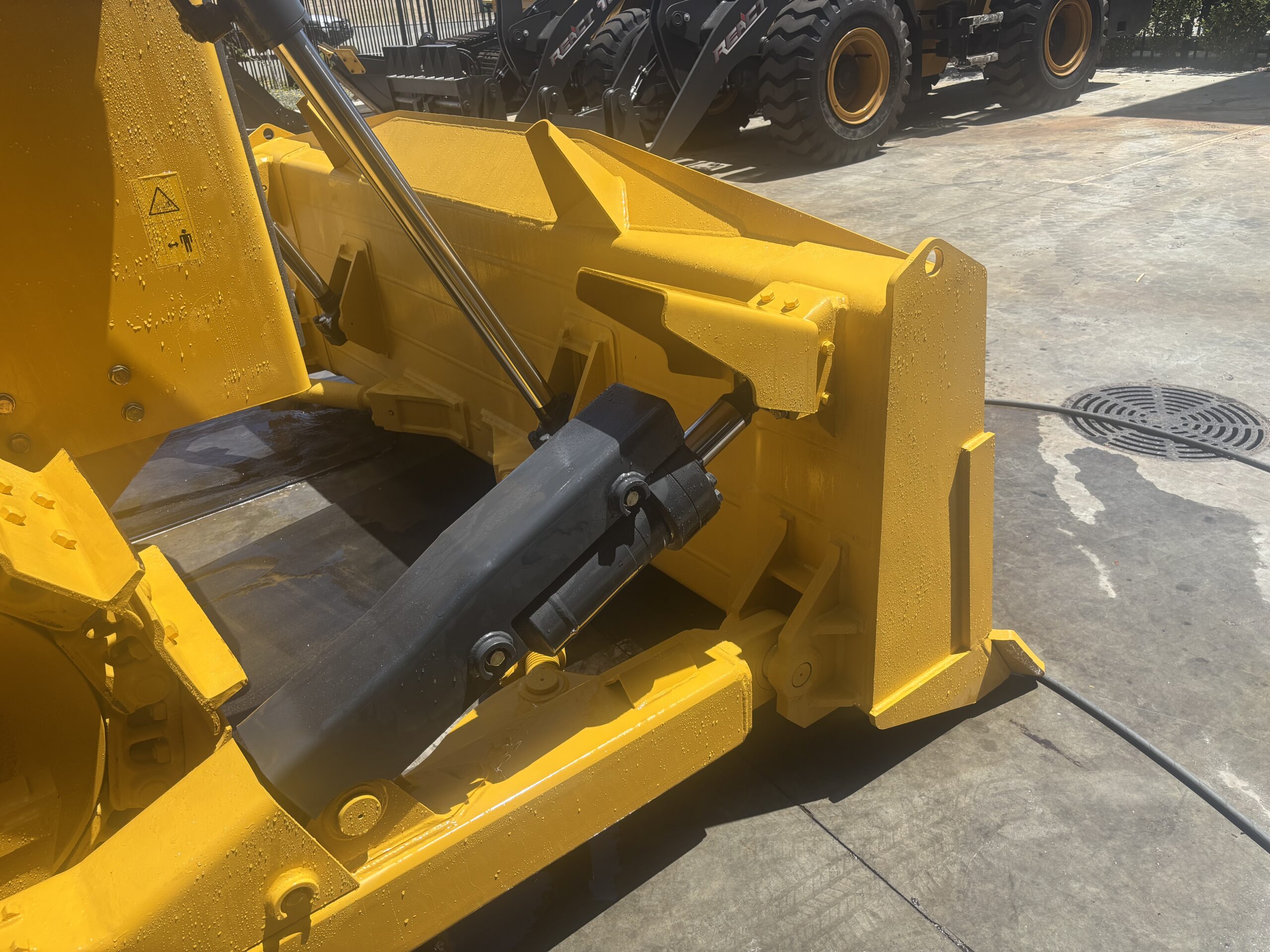

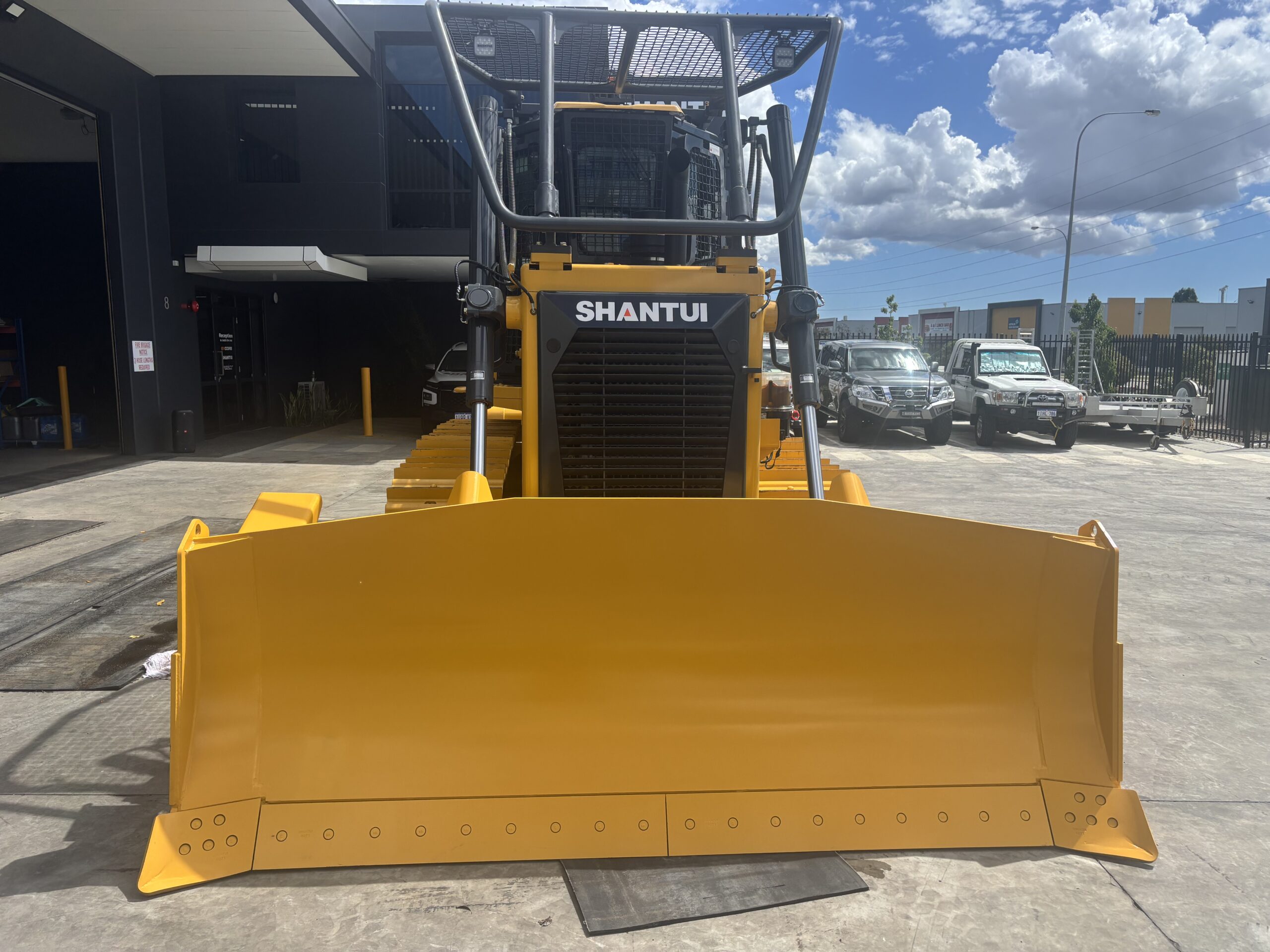

✔️ Heavy-Duty Blade – The Straight-Tilt blade has a capacity of 4.5 m³ (XL) / 3.8 m³ (LGP), ideal for pushing and leveling material.

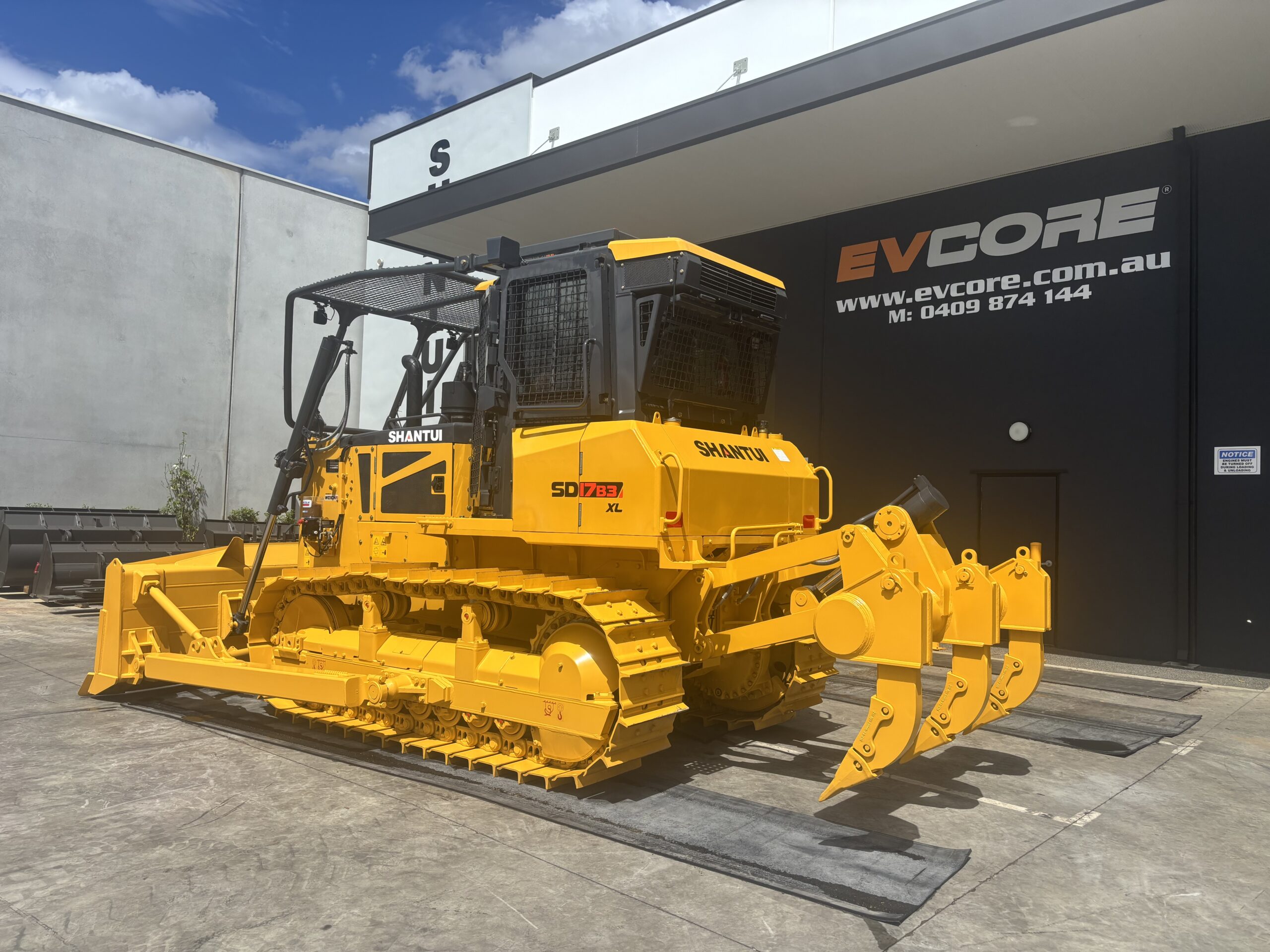

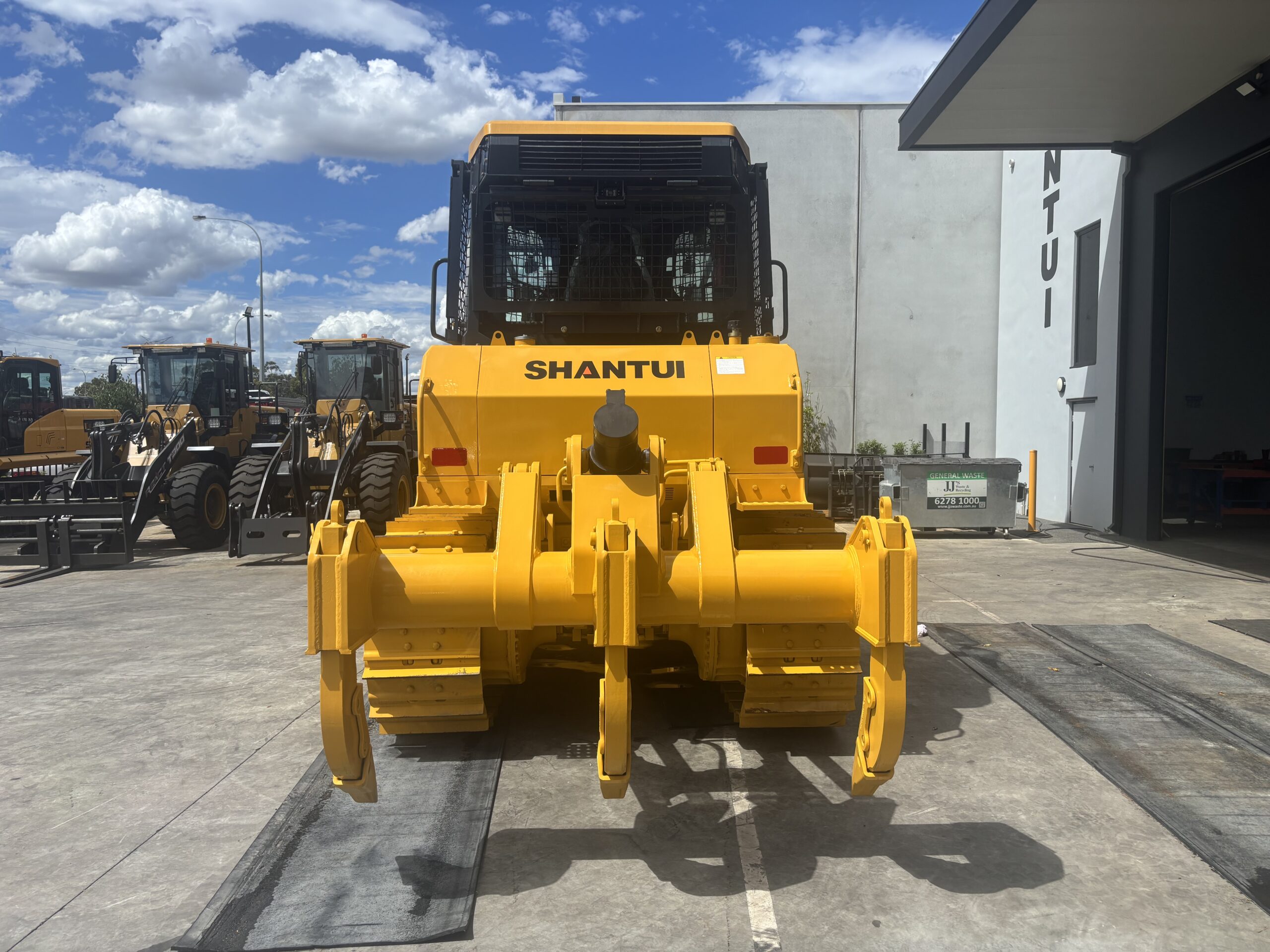

✔️ High-Capacity Ripper – Equipped with a three-shank ripper for superior penetration, with a maximum ripping depth of 572 mm.
✔️ Strong Chassis & Undercarriage – A suspended equalizer bar design with track shoe options up to 1100 mm for enhanced stability and traction.
Technical Specifications
🔹 Engine: Weichai WD10G190E214, 140 kW (188 hp) @ 1900 rpm
🔹 Transmission: Electric control planetary gear, 3 forward / 3 reverse gears
🔹 Blade Capacity: 4.5 m³ (XL) / 3.8 m³ (LGP) Straight-Tilt blade
🔹 Ripper: Three-shank, max depth 572 mm
🔹 Fuel Capacity: 338 L
🔹 Operating Weight: 17,500 kg (XL) / 19,200 kg (LGP)
🔹 Track Gauge: 1880 mm (XL) / 2430 mm (LGP)
🔹 Max Blade Lifting Height: 1010 mm (XL) / 1005 mm (LGP)
🔹 Max Digging Depth: 540 mm (XL) / 485 mm (LGP)
Why Choose the Shantui SD17 Dozer?
The SD17 is built for efficiency, durability, and power, making it the ideal bulldozer for earthmoving, construction, and infrastructure development. With a high-torque Weichai engine, advanced torqflow transmission, and a rugged blade and ripper system, it delivers exceptional performance in challenging conditions. Whether you’re grading, excavating, or preparing a site, the SD17 is a cost-effective, high-performing solution for demanding projects.
About Evcore
Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we provide top-tier customer support, a full range of spare parts, and mobile service vehicles to keep your machines running 24/7.
📞 0400 665 088 | 0400 459 097
📧 lewis@evcore.com.au
🌐 shantuiaustralia.com.au
ENGINE
| Engine | Weichai WD10G190E214 |
| Emission | China-III |
| Rated revolution | 1900 rpm |
| Gross power | 140 kW (188 hp) |
| No. of cylinder-bore×stroke | 6 × 126 mm × 130 mm |
| Displacement | 9.726 L |
| Max. torque | 900 Nm @ 1400-1600 rpm |
| Cooling system | Mechanical fan |
DRIVE SYSTEM
| Drive system | Electric control planetary gear transmission with hydraulic actuation, ensuring smooth power delivery and efficiency. |
| System overflow pressure | Not specified |
| Traveling speed – Forward | F1: 0~3.5 km/h, F2: 0~6.2 km/h, F3: 0~10.6 km/h |
| Traveling speed – Backward | R1: 0~4.5 km/h, R2: 0~8.0 km/h, R3: 0~13.1 km/h |
| Steering | Independent drive of track at both sides, ensuring full power output for pivot steering and steering with load. |
| Brake | Regular closed multi-disk brake. |
| Final drive | Primary spur gear + primary planetary reduction for durability and performance. |
CHASSIS SYSTEM - RS
| Type | Swing type of sprayed beam, suspended structure of equalizer bar |
| Track shoe type | Single grouser (XL) / Wetland type (LGP) |
| Track gauge | 1880 mm (XL) / 2430 mm (LGP) |
| Width of track shoe | 510 mm / 560 mm / 610 mm (XL) | 1100 mm / 950 mm (LGP) |
| Track grounding length | 2635 mm (XL) / 2935 mm (LGP) |
| Track grounding area | 29,512 cm² (XL) / 64,570 cm² (LGP) |
| Number of track shoe | 39 pcs/side (XL) / 42 pcs/side (LGP) |
| Grounding pressure (standard configuration) | 59 kPa (XL) / 27 kPa (LGP) |
| Number of carrier roller | 2 pcs/side |
| Number of track roller | 7 pcs/side |
| Pitch | 203 mm |
REFILL CAPACITY
| Fuel capacity | 338L |
| Coolant liquid capacity | 56L |
| Engine oil capacity | 24L |
| Hydraulic oil tank | 70L |
| Transmission | 52L |
| Drive axle | 70L |
| Final drive | 21L (single side) / 25L (single side) |
OPERATING WEIGHT- RS
| Operating weight (XL) | 17,500 kg (38,581 lb.) |
| Operating weight (LGP) | 19,200 kg (42,329 lb.) |
BLADE- RS
| Blade type | Straight-Tilt Blade |
| Blade capacity (XL) | 4.5 m³ (5.9 cu. yd.) |
| Blade capacity (LGP) | 3.8 m³ (5.0 cu. yd.) |
DIMENSION- RS
| Machine height | 3128 mm (123.1 in.) |
| Track grouser height | 65 mm (2.6 in.) |
| Ground clearance | 400 mm (15.7 in.) |
| Machine length (without draw bar) | 5345 mm (210.4 in.) |
| Max. lifting height of blade (XL) | 1010 mm (39.8 in.) |
| Max. lifting height of blade (LGP) | 1005 mm (39.6 in.) |
| Max. digging depth of blade (XL) | 540 mm (21.3 in.) |
| Max. digging depth of blade (LGP) | 485 mm (19.1 in.) |
| Digging angle of blade | 55° ±3° |
| Blade width (XL) | 3455 mm (136.0 in.) |
| Blade width (LGP) | 4150 mm (163.4 in.) |
| Blade height (XL) | 1149 mm (45.2 in.) |
| Blade height (LGP) | 960 mm (37.8 in.) |
| Width from end of left track shoe to end of right track shoe (XL) | 2440 mm (96.1 in.) |
| Width from end of left track shoe to end of right track shoe (LGP) | 3450 mm (135.8 in.) |
RIPPER
| Type | Three-Shank Ripper |
| Ripping Depth of Ripper | 572 mm (22.5 in.) |
| Lifting Height of Ripper | 592 mm (23.3 in.) |
| Length of Ripper (Maximum Subsoiling Position) | 1580 mm (62.2 in.) |
| Width of Ripper | 2080 mm (81.9 in.) |
| Tilt Angle (Maximum Lift Position) | 32.1° |
