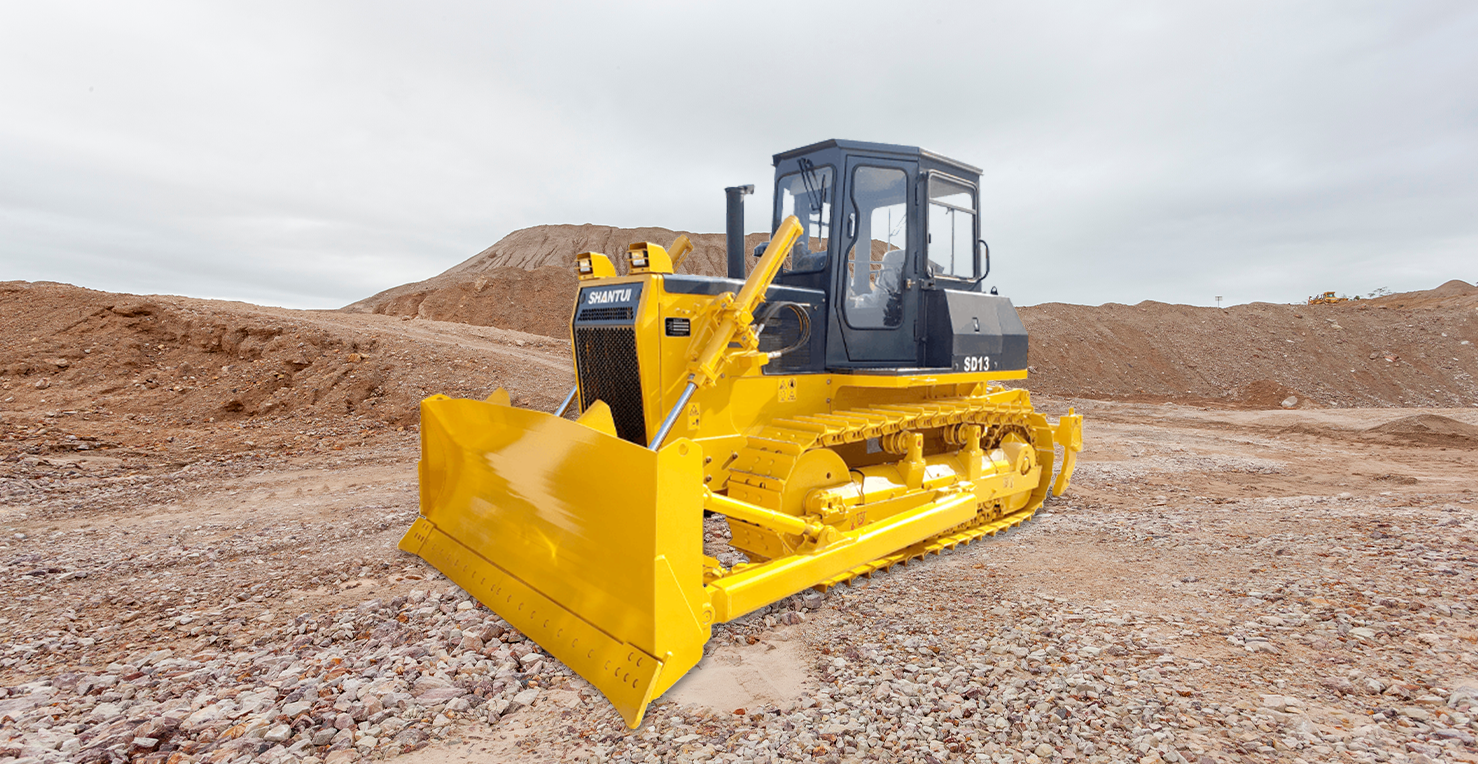

SD13 BULLDOZER
$14.00
Overall Weight
13,700 kg
Engine Model
Cummins 6CTA8.3-C145
Engine Power
95.5 kW (130 hp) @ 1900 rpm
DOWNLOAD PRODUCT PDF
CLOSE
SD13 BULLDOZER
Overall Weight
13,700 kg
Engine Model
Cummins 6CTA8.3-C145
Engine Power
95.5 kW (130 hp) @ 1900 rpm
CLOSE
REQUEST QUOTE
SD13 BULLDOZER
Overall Weight
13,700 kg
Engine Model
Cummins 6CTA8.3-C145
Engine Power
95.5 kW (130 hp) @ 1900 rpm
Overview of the Shantui SD13 Dozer
The Shantui SD13 Dozer is a compact, high-performance machine designed for versatility in construction, agriculture, and light earthmoving projects. Powered by the Cummins 6CTA8.3-C145 engine, it delivers 95.5 kW (130 hp) at 1900 rpm with a maximum torque of 700 Nm at 1600 rpm. Equipped with a power shift planetary gear transmission and swing-type equalizer beam undercarriage, the SD13 ensures smooth operation, strong traction, and high reliability in various terrains. Its Straight-Tilt blade, optional three-shank ripper, and efficient hydraulic system make it a dependable choice for small to mid-size applications.
Key Features
✔️ Reliable Engine – The Cummins 6CTA8.3-C145 engine delivers 95.5 kW (130 hp) with a turbocharged cooling system for maximum efficiency.
✔️ Smooth Transmission – 3-speed forward and 3-speed reverse planetary gear transmission ensures precise control and optimal power distribution.
✔️ Versatile Blade Options – Straight-Tilt blade with a 3.7 m³ capacity provides excellent material handling capabilities.
✔️ Durable Undercarriage – Swing-type equalizer beam suspension with single grouser dry-type tracks for enhanced stability and traction.
✔️ Ripper Attachment – The optional three-shank ripper reaches a maximum digging depth of 467 mm, adding versatility to the machine.
Technical Specifications
🔹 Engine: Cummins 6CTA8.3-C145, 95.5 kW (130 hp) @ 1900 rpm
🔹 Transmission: Power shift planetary gear, 3 forward / 3 reverse gears
🔹 Blade Capacity: 3.7 m³ Straight-Tilt blade
🔹 Ripper: Optional three-shank, 467 mm max depth
🔹 Fuel Capacity: 320 L
🔹 Operating Weight: 13,700 kg
🔹 Track Gauge: 1880 mm, Track Shoe Width: 460 mm
🔹 Max Blade Lifting Height: 559 mm
🔹 Max Digging Depth: 590 mm
Why Choose the Shantui SD13 Dozer?
The SD13 is built for reliability, efficiency, and ease of operation, making it the perfect machine for small-to-medium earthmoving projects. With a fuel-efficient Cummins engine, durable undercarriage, and versatile blade and ripper configurations, the SD13 provides exceptional performance in compact job sites. Whether you’re grading, clearing, or light dozing, the SD13 is a cost-effective and highly dependable choice for operators who need proven reliability with strong support.
About Evcore
Evcore is proud to be the exclusive Australian dealer for Shantui Earthmoving Equipment. As an Australian-owned and operated company, we provide top-tier customer support, a full range of spare parts, and mobile service vehicles to keep your machines running 24/7.
📞 0400 665 088 | 0400 459 097
📧 lewis@evcore.com.au
🌐 shantuiaustralia.com.au
ENGINE
| Engine | Cummins 6CTA8.3-C145 |
| Emission | China-III |
| Rated revolution | 1900 rpm |
| Gross power | 95.5 kW (130 hp) |
| No. of cylinder-bore×stroke | 6 × 114 mm × 135 mm |
| Displacement | 8.3 L |
| Max. torque | 700 Nm @ 1600 rpm |
| Cooling system | Turbocharged cooling |
DRIVE SYSTEM
| Drive system | Hydraulic drive with planetary power shift transmission, ensuring smooth and efficient power delivery. |
| System overflow pressure | Not specified |
| Traveling speed – Forward | F1: 0~3.2 km/h, F2: 0~5.9 km/h, F3: 0~9.8 km/h |
| Traveling speed – Backward | R1: 0~3.9 km/h, R2: 0~7.1 km/h, R3: 0~11.9 km/h |
| Steering | Hydraulic power-assisted steering for precise control and maneuverability. |
| Brake | Wet, multi-disc brake system for reliable stopping power. |
| Final drive | Two-stage spur gear final drive for enhanced durability and performance. |
CHASSIS SYSTEM - RS
| Type | Swing-type equalizer beam, semi-rigid suspension |
| Track shoe type | Single grouser |
| Track gauge | 1880 mm |
| Width of track shoe | 460 mm |
| Track grounding length | 2365 mm |
| Track grounding area | 27,281 cm² |
| Number of track shoes | 37 pcs/side |
| Grounding pressure (standard configuration) | 65 kPa |
| Number of carrier rollers | 2 pcs/side |
| Number of track rollers | 6 pcs/side |
| Pitch | 190 mm |
REFILL CAPACITY
| Fuel capacity | 320L |
| Coolant liquid capacity | 34L |
| Engine oil capacity | 18L |
| Hydraulic oil tank | 90L |
| Transmission | 28L |
| Final drive | 14L (single side) |
OPERATING WEIGHT- RS
| Operating weight (XL) | 13,700 kg (30,203 lb.) |
| Operating weight (LGP) | 14,200 kg (31,306 lb.) |
BLADE- RS
| Blade type | Straight-Tilt Blade |
| Blade capacity (XL) | 3.7 m³ (4.8 cu. yd.) |
| Blade capacity (LGP) | 3.4 m³ (4.4 cu. yd.) |
DIMENSION- RS
| Machine height | 3180 mm (125.2 in.) |
| Track grouser height | 55 mm (2.2 in.) |
| Ground clearance | 400 mm (15.7 in.) |
| Machine length (without draw bar) | 4920 mm (193.7 in.) |
| Max. lifting height of blade (XL) | 900 mm (35.4 in.) |
| Max. lifting height of blade (LGP) | 880 mm (34.6 in.) |
| Max. digging depth of blade (XL) | 590 mm (23.2 in.) |
| Max. digging depth of blade (LGP) | 560 mm (22.0 in.) |
| Digging angle of blade | 55° ±3° |
| Blade width (XL) | 3180 mm (125.2 in.) |
| Blade width (LGP) | 3800 mm (149.6 in.) |
| Blade height (XL) | 1150 mm (45.3 in.) |
| Blade height (LGP) | 960 mm (37.8 in.) |
| Width from end of left track shoe to end of right track shoe (XL) | 2380 mm (93.7 in.) |
| Width from end of left track shoe to end of right track shoe (LGP) | 3150 mm (124.0 in.) |
RIPPER
| Type | Three-Shank Ripper |
| Ripping Depth of Ripper | 467 mm (18.4 in.) |
| Lifting Height of Ripper | 540 mm (21.3 in.) |
| Length of Ripper (Maximum Subsoiling Position) | 1450 mm (57.1 in.) |
| Width of Ripper | 1700 mm (66.9 in.) |
| Tilt Angle (Maximum Lift Position) | 30° |
