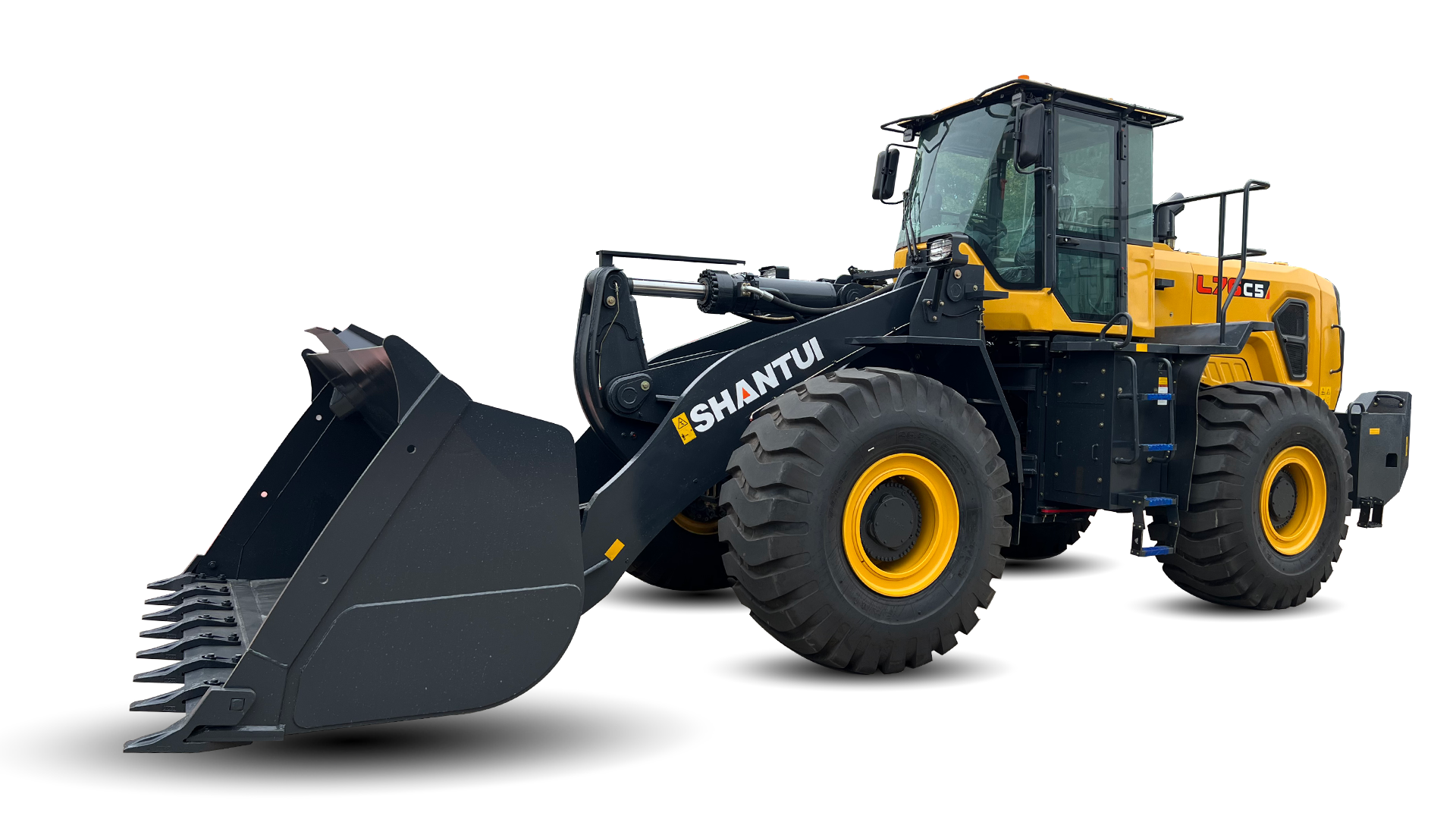

L76 WHEEL LOADER

Overview of the L76 Wheel Loader

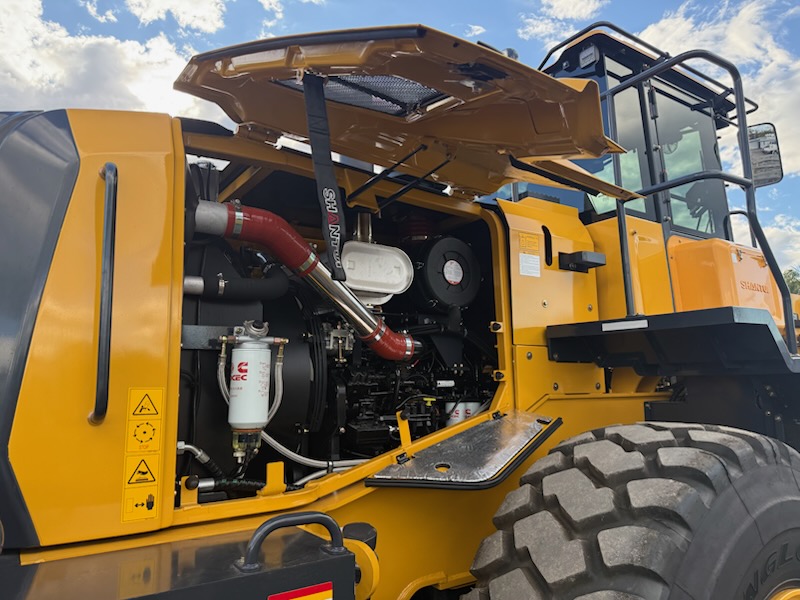

The L76 Wheel Loader is a heavy-duty machine built to excel in demanding environments. Powered by a Cummins QSL8.9-C280-30 engine with a robust 209 kW output and 1250 N·m of torque, it’s ready to handle tough tasks with efficiency. This loader features a 4m³ bucket capacity and an impressive dump clearance of 3540 mm, ensuring it meets the rigorous demands of industries like mining, construction, and heavy-duty material handling.

The L76 is designed for productivity with its electronically controlled fixed shaft transmission, offering 4 forward and 3 reverse speeds for optimal maneuverability. Whether it’s loading, digging, or transporting materials, the L76 combines reliability, power, and operator comfort to deliver outstanding performance.

Key Features

• Engine: Tier 3 Cummins QSL8.9-C280-30 (209 kW, 1250 N·m torque)
• Bucket Capacity: 4m³ for handling large material loads
• Operating Weight: 24,800 kg for stability in challenging conditions
• Transmission: Electronically controlled with 4 forward and 3 reverse speeds
• Dump Clearance: 3540 mm for efficient material discharge
• Tipping Load: 160 KN full turn, providing excellent load capacity
• Cycle Time: Total of 10.1 seconds, ensuring fast and efficient operation

Enhanced Operator Experience

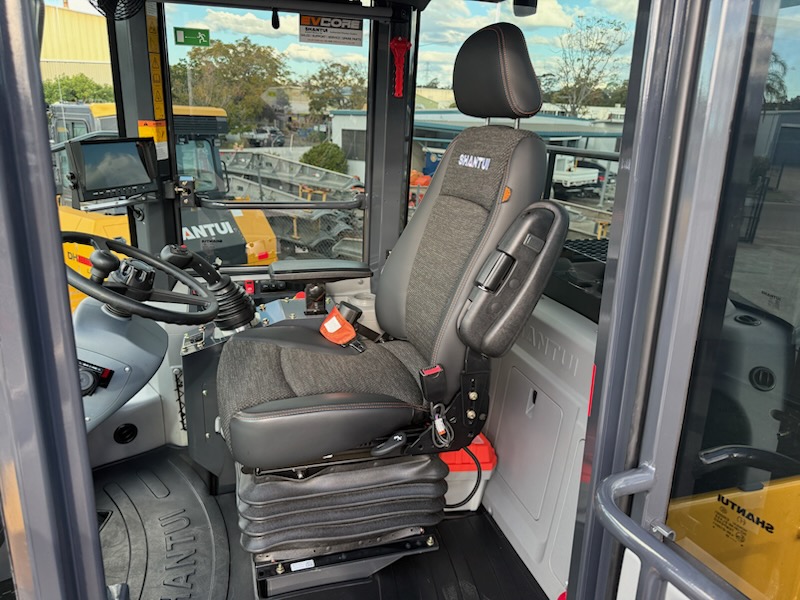

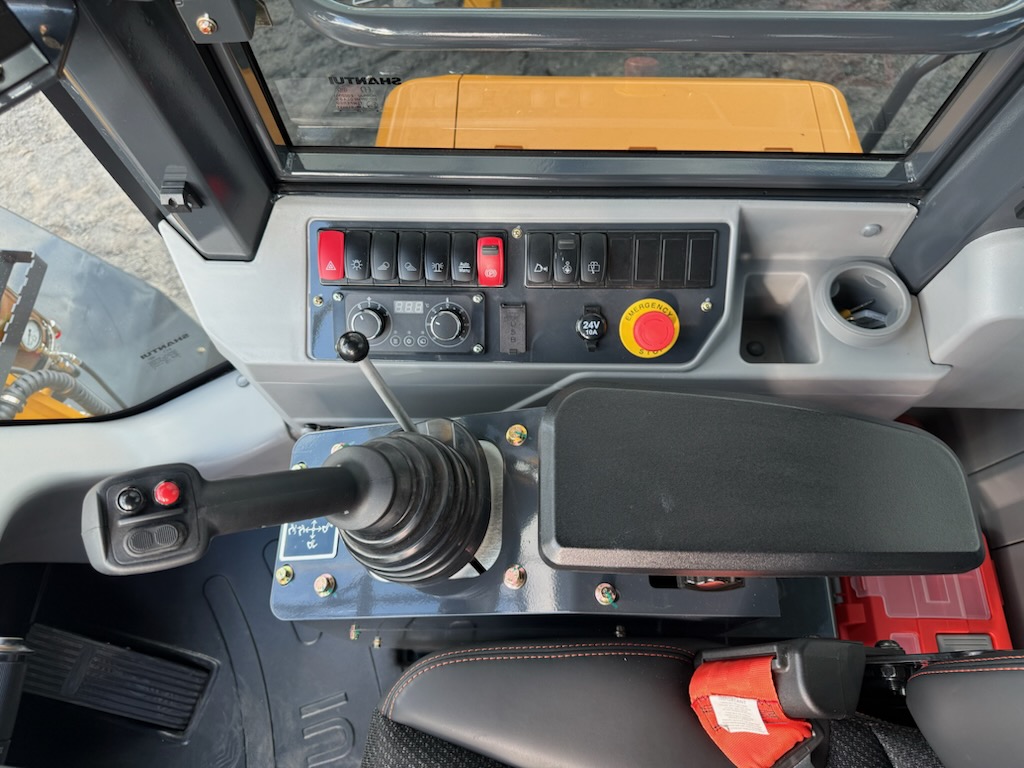

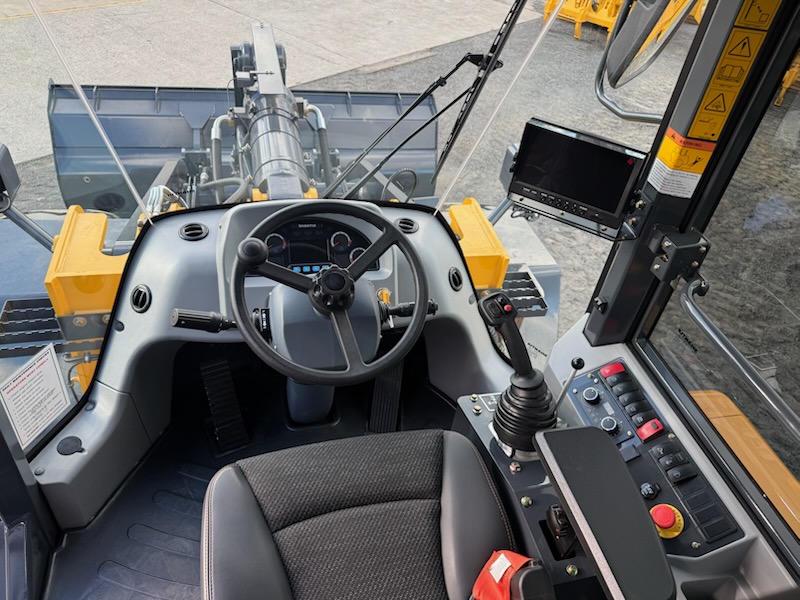

The L76’s spacious cab is designed with comfort and productivity in mind. Equipped with advanced features like ergonomic seating, air conditioning, and intuitive controls, operators can work efficiently during long shifts. Visibility is maximized through the cab’s design, ensuring safety and precision on the job site.

Why Choose the L76 Wheel Loader?

The L76 Wheel Loader delivers exceptional value, offering high performance and durability for the most challenging conditions. With features like a constant variable dual hydraulic pump system (25 Mpa relief pressure) and a fuel capacity of 365 L, this machine minimizes downtime while maximizing efficiency.

Built to withstand the rugged Australian landscape, the L76 is backed by comprehensive service support and Australia-wide shipping, making it a reliable partner for your operations.

Perfect for industries requiring heavy-duty material handling, the L76 strikes the ideal balance between power, reliability, and versatility.
