DH46 BULLDOZER
$2.00
Overall Weight
RS:56,200 Kg
Engine Model
Cummims X15-C525
Engine Power
392kW(525hp) @ 1800rpm
DOWNLOAD PRODUCT PDF
CLOSE
DH46 BULLDOZER
Overall Weight
RS:56,200 Kg
Engine Model
Cummims X15-C525
Engine Power
392kW(525hp) @ 1800rpm
CLOSE
REQUEST QUOTE
DH46 BULLDOZER
Overall Weight
RS:56,200 Kg
Engine Model
Cummims X15-C525
Engine Power
392kW(525hp) @ 1800rpm

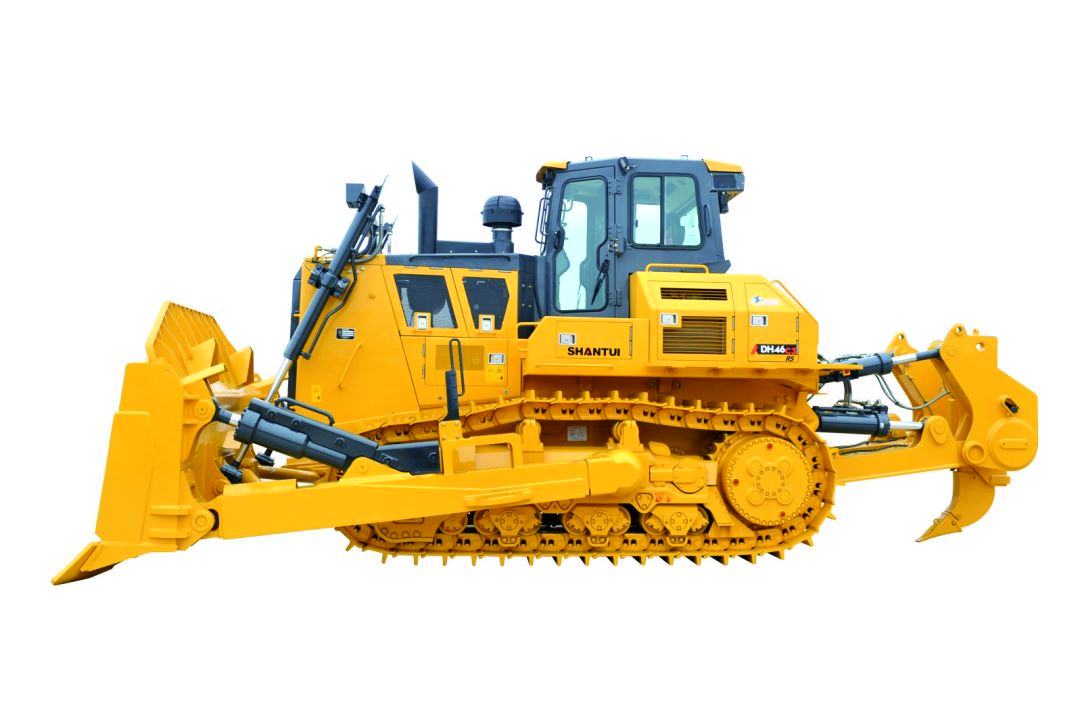

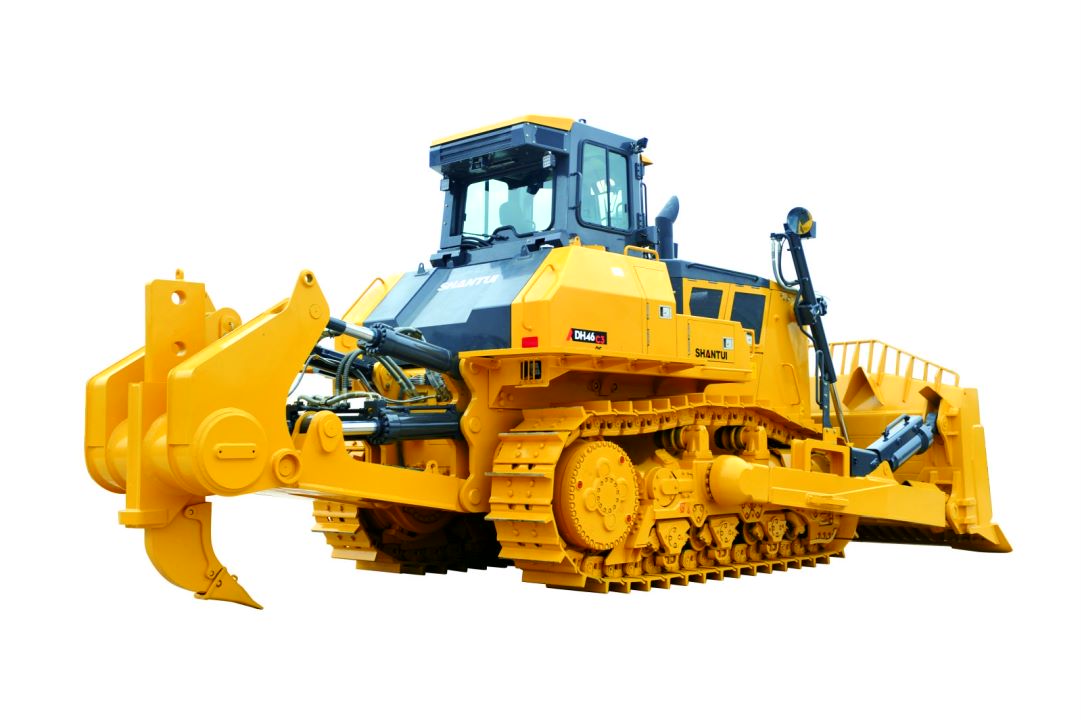

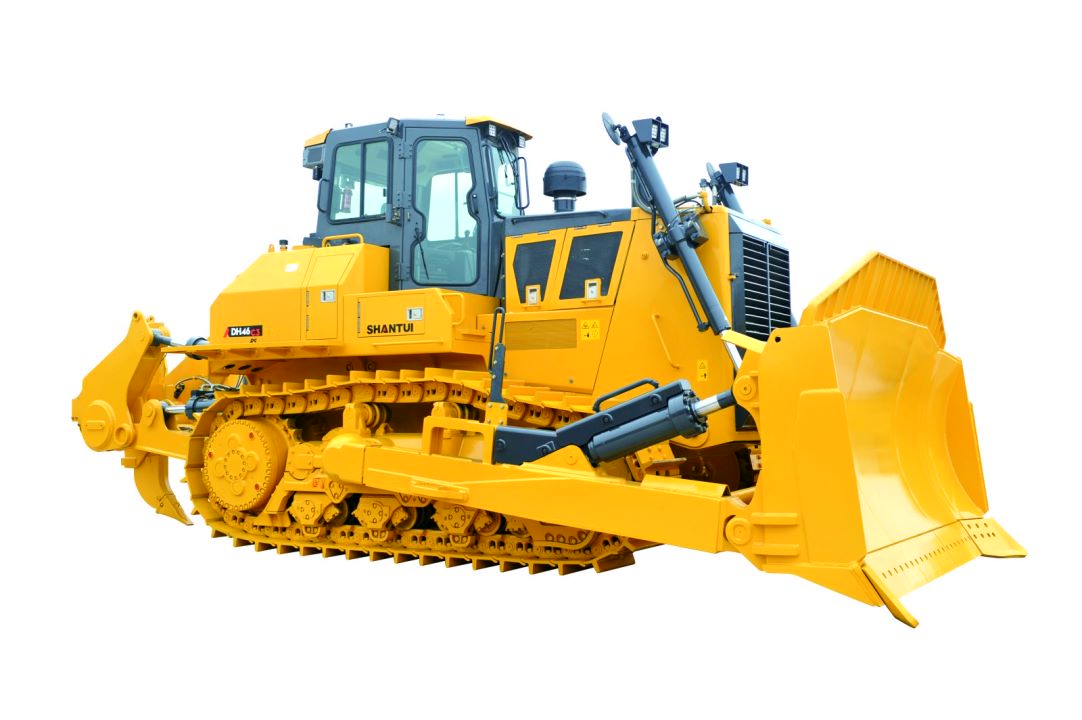

Overview of the DH46 Dozer
The Shantui DH46 Dozer is a high-performance machine engineered for the toughest, most demanding jobs in construction, mining, and heavy earthmoving. Powered by the Cummins X15-C525 engine, it delivers an impressive 392 kW (525 hp) of gross power with a maximum torque of 2373 Nm at 1400 rpm. This, combined with a state-of-the-art independent dual-circuit hydrostatic drive system, allows for efficient load-speed matching and high flexibility in both forward and reverse directions. Designed with robust undercarriage and blade systems, the DH46 excels in applications such as rock handling, grading, and heavy lifting. It also boasts impressive fuel capacity and a durable ripper for subsoiling, making it ideal for large-scale, high-intensity operations.
Key Features:
- Powerful Engine: The Cummins X15-C525 engine delivers 392 kW (525 hp) of gross power and 2373 Nm of torque, making it perfect for heavy-duty operations.
- Advanced Hydrostatic Drive: Independent dual-circuit electric control with stepless variable speed provides superior performance and ease of operation.
- Durable Blade System: A rock blade with a capacity of 13.7 m³ (17.9 cu. yd.) ensures superior earthmoving performance in harsh environments.
- Heavy-Duty Ripper: The single-shank ripper offers a ripping depth of 1245 mm (49 in.), ideal for subsoiling and tough soil conditions.
Technical Specifications:
- Engine: Cummins X15-C525, 392 kW (525 hp) gross power
- Hydrostatic Drive: Independent dual-circuit with intelligent speed-load matching
- Track Shoe Width: 610 mm, 660 mm, 710 mm
- Blade Capacity: 13.7 m³ (17.9 cu. yd.)
- Fuel Capacity: 880 L (232.5 gal.)
- Operating Weight: 56,200 kg (123,899 lb.)
- Max. Lifting Height of Blade: 1460 mm (57.5 in.)
- Max. Digging Depth of Blade: 660 mm (26 in.)
- Max. Ripping Depth (Ripper): 1245 mm (49 in.)
- Ripper Width: 1490 mm (58.7 in.)
Why Choose the Shantui DH46 Dozer?
The Shantui DH46 Dozer is built for tough, high-performance tasks that require both power and precision. With its powerful Cummins engine, advanced hydrostatic drive system, and durable blade and ripper configurations, the DH46 is capable of handling even the most demanding tasks in rugged environments. Whether you’re working with rock, heavy earth, or compacted soil, the DH46 offers exceptional traction, efficiency, and performance.
About Evcore
Evcore is the exclusive dealer for Shantui Construction Machinery in Australia, offering full parts and service support for all our machines. For more information on the Shantui DH46 Dozer, contact us today.
Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
Email: sales@evcore.com.au
Website: shantuiaustralia.com.au
ENGINE
| Engine | Cummims X15-C525 |
| Emission | U.S. EPA Tier 4 Final, EU Stage V |
| Rated revolution | 1800rpm |
| Gross power | 392kW(525hp) |
| No. of cylinder-bore×stroke | 6×137mm×169mm(6×5.40in.x6.65in.) |
| Displacement | 15L |
| Max. torque | 2373Nm(1750.2lbf·ft)@1400rpm |
| Cooling system | Smart temperature-controlled fan |
DRIVE SYSTEM
| Drive system | Independent dual-circuit electric control hydrostatic drive, intelligent matching of speed-load, “stepless” variable speed, mono-lever control of travel, speed and steering; steering with load, pivot steering, work flexibly, high efficiency, easy for maintenance |
| System overflow pressure | 43500kPa (6309.1psi) |
| Traveling speed- Forward | 0~11km/h(6.8mph) |
| Traveling speed- Backward | 0~11km/h(6.8mph) |
| Steering | Independent drive of track at both sides to ensure the full power output for pivot steering and steering with load |
| Brake | Regular closed multi-disk brake |
| Final drive | Regular closed multi-disk brake |
CHASSIS SYSTEM - RS
| Type | Pivot, equalizing beam suspended type, semi-rigid structure |
| Track shoe type | Single grouser |
| Track gauge | 2260mm (89in.) |
| Width of track shoe | 610mmx660mmx710mm(24in.x26in.x28in.) |
| Track grounding length | 3532mm (139in.) |
| Track grounding area | 21545cm² (3339.5sq.in.) |
| Number of track shoe | 40 pcs/side |
| Grounding pressure (standard configuration) |
120kPa (17.4psi) |
| Number of carrier roller | 2 pcs/side |
| Number of track roller | 7 pcs/side |
| Pitch | 260mm (10.2in.) |
REFILL CAPACITY
| Fuel capacity | 880L (232.5GAL.) |
| Coolant liquid capacity | 73L (19.3GAL.) |
| Engine oil capacity | 45-49L (11.9-12.9GAL.) |
| Hydraulic oil tank (travel) | 240L (63.4GAL.) |
| Hydraulic oil tank (work) | 43L (11.4GAL.)/SINGLE SIDE |
| Final drive | 8L (2.1gal.) |
| Transfer case | 6L(1.6GAL.) |
OPERATING WEIGHT- RS
| Operating weight | 56200 kg (123899lb.) |
BLADE- RS
| Blade type | Rock Blade |
| Blade capacity | 13.7cu.m (17.9cu.yd.) |
DIMENSION- RS
| Machine height | 3990mm (157in.) |
| Track grouser height | 87mm (3.4in.) |
| Ground clearance | 680mm (26.8in.) |
| Machine length (with ripper) | 9325mm (367in.) |
| Machine length (without ripper) | 7085mm (275in.) |
| Max. lifting height of blade | 1460mm (57.5in.) |
| Max. digging depth of blade | 660mm (26in.) |
| Digging angle of blade | 53°±3°(deg. |
| Blade width | 4320mm (179in.) |
| Blade height | 1950mm (76.8in.) |
| Blade tilt height | 1140mm (44.9in.) |
| Width from end of left track shoe to end of right track shoe | 2870mm (113in.) (standard) |
| Width from end of left footplate to end of right footplate | 3322mm (130.8in.) (standard) |

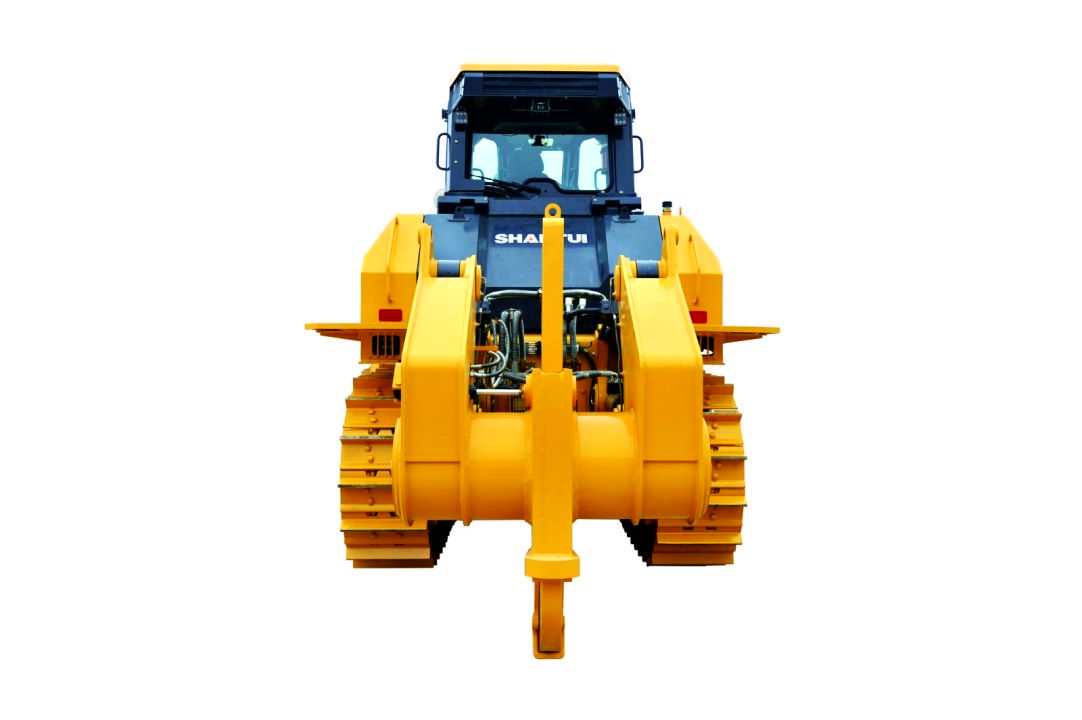

RIPPER
| Type | Single Shank ripper |
| Ripping Depth of Ripper | 1245mm (49in.) |
| Lifting Height of Ripper | 860mm (33.9in.) |
| Length of Ripper(Maximum Subsoiling Position) |
2475mm (108in.) |
| Width of Ripper | 1490mm (58.7in.) |
| Tilt Angle (Maximum Lift Position) | 37.5° |
