DH17 BULLDOZER
$4.00
Overall Weight
XL: 17,730 Kg | LGP: 19,690 Kg
Engine Model
Weichai WP7G207E304
Engine Power
152kW(204hp) @ 1800
DOWNLOAD PRODUCT PDF
CLOSE
DH17 BULLDOZER
Overall Weight
XL: 17,730 Kg | LGP: 19,690 Kg
Engine Model
Weichai WP7G207E304
Engine Power
152kW(204hp) @ 1800
CLOSE
REQUEST QUOTE
DH17 BULLDOZER
Overall Weight
XL: 17,730 Kg | LGP: 19,690 Kg
Engine Model
Weichai WP7G207E304
Engine Power
152kW(204hp) @ 1800

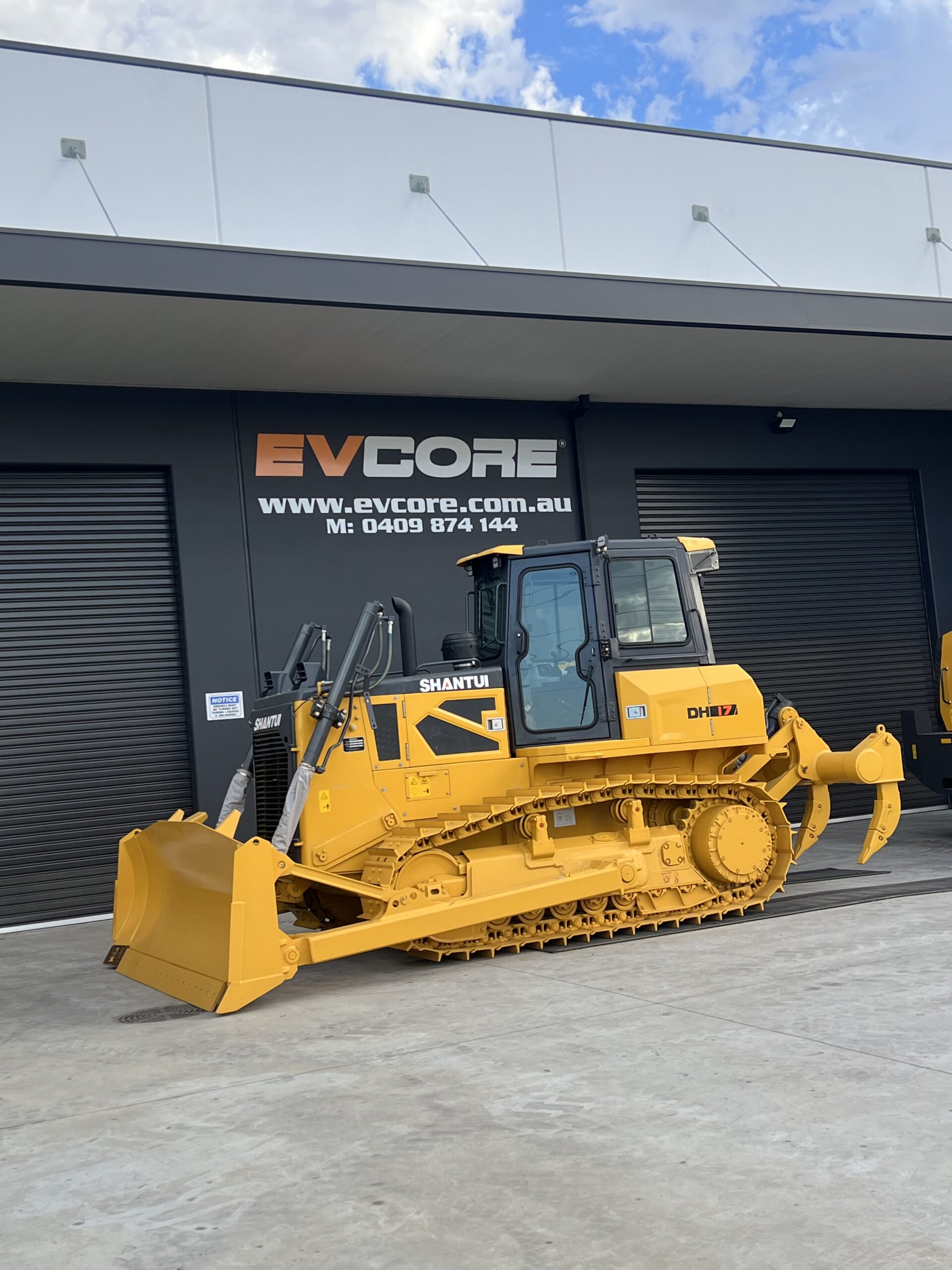

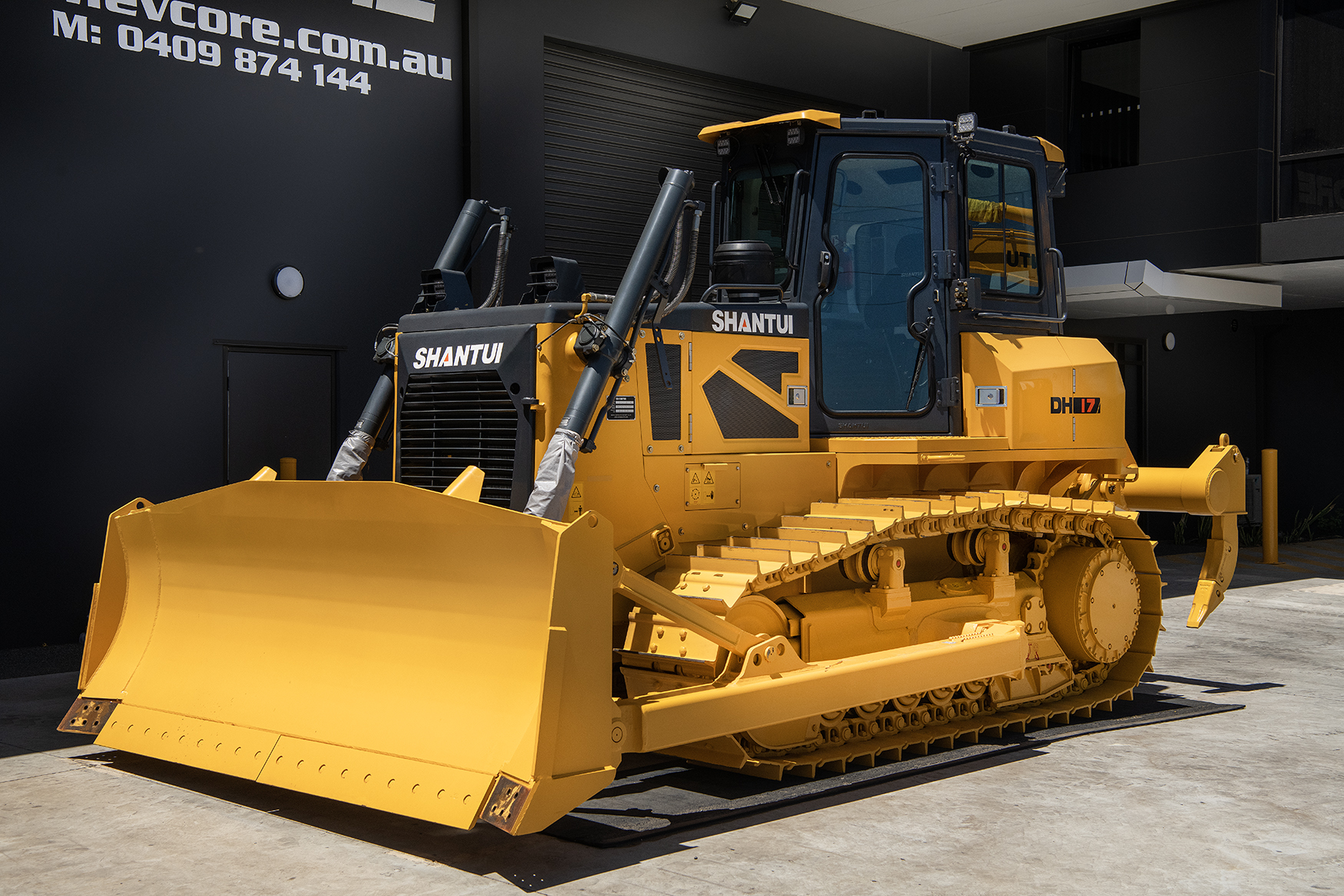

Overview of the Shantui DH17 Dozer
The Shantui DH17 Crawler Dozer is engineered for demanding heavy-duty operations, offering excellent performance and efficiency with a range of customizable features. Powered by the Weichai WP7G207E304 engine, the DH17 delivers up to 152 kW (204 hp) in heavy load conditions, with various power options available depending on load. Equipped with an independent dual-circuit electric control hydrostatic drive system, the DH17 provides superior speed-load matching for optimal performance in any worksite. Whether used in earthmoving, grading, or heavy-duty ripping, the DH17 offers reliable power and stability.
Key Features:
- High-Performance Engine: The Weichai WP7G207E304 engine offers 152 kW (204 hp) of gross power under heavy load, with torque of 975 Nm for excellent performance across a variety of tasks.
- Hydrostatic Drive System: The independent dual-circuit system with stepless variable speed ensures intelligent load-speed matching for high efficiency and easy maintenance.
- Advanced Chassis Options: Available in XL and LGP configurations, offering superior stability, traction, and low ground pressure for various terrain types.
- Versatile Blade Options: The DH17 comes with a choice of Semi-U or straight tilt blades with a capacity of up to 4.7 m³ for the XL version and 3.8 m³ for the LGP version.
- Ripper Option: A three-shank ripper is available for heavy-duty soil ripping, offering a maximum ripping depth of 475 mm.
Technical Specifications:
- Engine: Weichai WP7G207E304, up to 152 kW (204 hp) gross power
- Hydrostatic Drive: Independent dual-circuit with stepless variable speed
- Track Shoe Width: 510/560/610 mm for XL, 1100/950/850/810 mm (wetland) for LGP
- Blade Capacity: 4.7 m³ (Semi-U/straight tilt) for XL, 3.8 m³ for LGP
- Fuel Capacity: 352 L
- Operating Weight: 17,730 kg (XL), 19,690 kg (LGP)
- Max. Lifting Height of Blade: 1010 mm
- Max. Digging Depth of Blade: 520 mm (XL), 485 mm (LGP)
- Max. Ripping Depth (Ripper): 475 mm
- Ripper Width: 1900 mm
Why Choose the Shantui DH17 Dozer?
The Shantui DH17 is designed to handle a wide variety of heavy-duty applications with its robust engine, efficient hydrostatic drive system, and versatile blade and ripper options. Whether you need to work in soft ground with the LGP configuration or need high performance with the XL version, the DH17 ensures maximum efficiency and productivity across all tasks.
About Evcore
Evcore is the exclusive dealer for Shantui Construction Machinery in Australia, offering full parts and service support for all our machines. For more information on the Shantui DH17 Dozer, contact us today.
Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
Email: sales@evcore.com.au
Website: shantuiaustralia.com.au

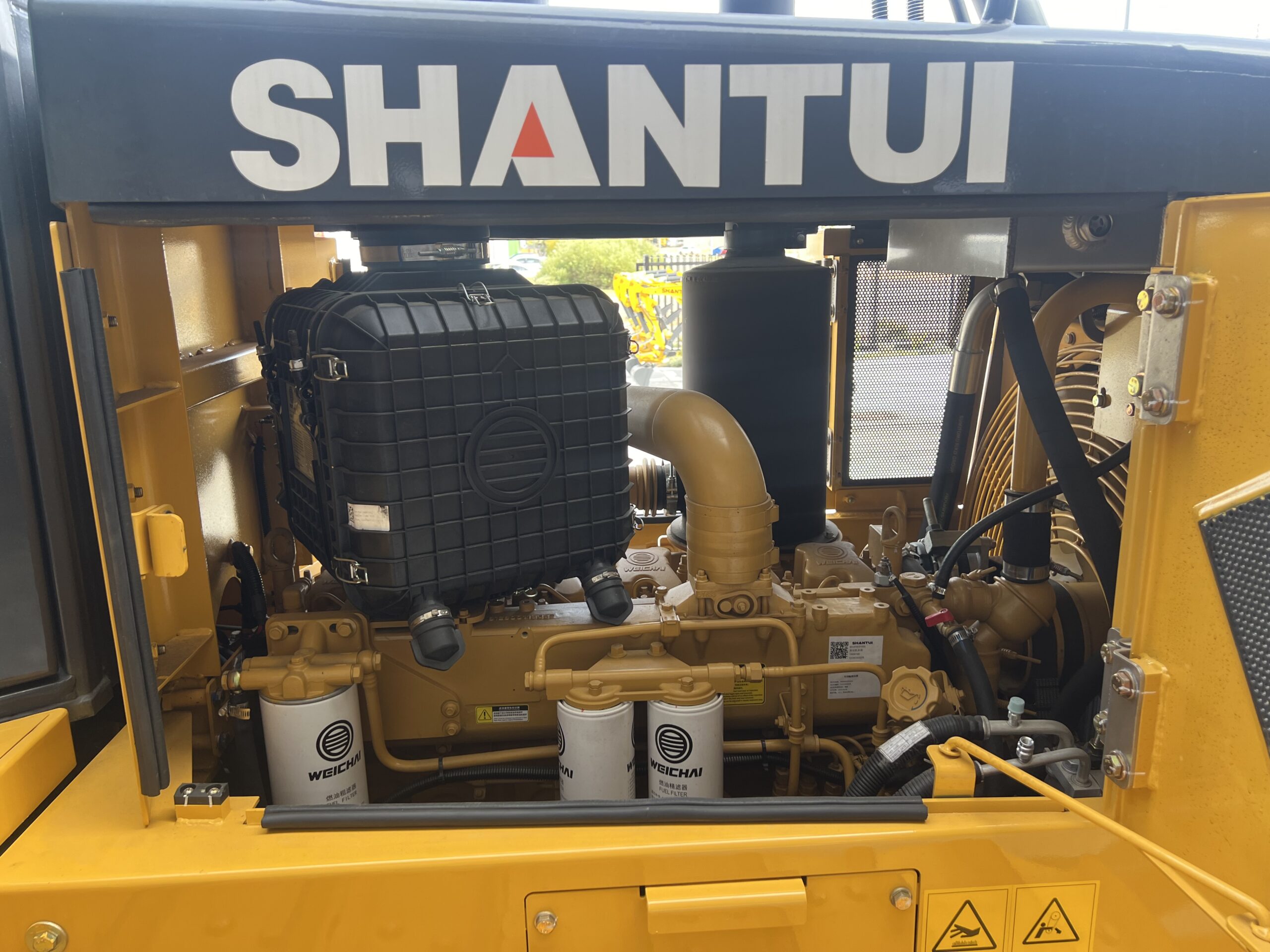

ENGINE
| Engine | Weichai WP7G207E304 |
| Emission | China-III |
| Rated revolution | 1800rpm |
| Gross power | Heavy load: 152kW(204hp)@1800 Standard: 141kW(189hp)@1800 Light load: 120kW(161hp)@1800 |
| Net power | Heavy load: 139kW(186hp)@1800 Standard: 128kW(172hp)@1800 Light load: 107kW(143hp)@1800 |
| Number of cylinder-bore × stroke |
6-126mm*130mm |
| Displacement | 7.47L |
| Max. torque | 975Nm@1200-1400rpm |
| Min. fuel consumption | 200g/kW.h |
| Cooling system | Mechanic fan |
DRIVE SYSTEM
| Drive system | Independent dual-circuit electric control hydrostatic drive, intelligent matching of speed-load, “stepless” variable speed, mono-lever control of travel, speed and steering; steering with load, pivot steering, work flexibly, high efficiency, easy for maintenance |
| System overflow pressure | 45000 kPa |
| Traveling speed- Forward |
0~10km/h |
| Traveling speed- Backward |
0~10km/h |
| Max. theoretical traction force | 288.8kN |
| Steering | Independent drive of track at both sides to ensure the full power output for pivot steering and steering with load |
| Brake | Regular closed multi-disk brake |
| Final drive | Primary spur gear + primary planetary reduction |
CHASSIS SYSTEM
| Chassis System | XL | LGP |
| Type | Pivot, equalizing beam suspended type, semirigid structure | |
| Track shoe type | Single grouser | Wetland / Single grouser |
| Track gauge | 1880mm | 2350mm |
| Width of track shoe | 510/560/610mm | 1100/950/850/ 810mm(Wetland) |
| Track grounding length | 2675mm | 2935mm |
| Track grounding area | 27285cm² | 64570cm² |
| Number of track shoe | 39 pcs/side | 42 pcs/side |
| Grounding pressure (standard configuration) |
63.7kPa | 31.1kPa |
| Number of carrier roller | 2 pcs/side | 2 pcs/side |
| Number of track roller | 7pcs/side | 7pcs/side |
| Pitch | 203mm | 203mm |
REFILL CAPACITY
| Fuel capacity | 352L | |
| Coolant liquid capacity | 49L | |
| Engine oil capacity | 24L | |
| Hydraulic oil tank | 85L | |
| Final drive | 32L/side | 35L/side |
OPERATING WEIGHT
| Operating Weight | XL | LGP |
| Standard | 17730 kg | 19690 kg |
BLADE
| Blade | XL | LGP |
| Blade type | Semi-U/straight tilt | Straight tilt |
| Blade capacity | 4.7/4.5m³ | 3.8m³ |
DIMENSION
| Dimension | XL | LGP |
| Machine height (without ROPS) | 3154mm | 3191mm |
| Track grouser height | 65mm | 101.5mm(Wetland type) |
| Ground clearance | 410 mm | 410 mm |
| Machine length (with draw bar) | 5352mm | 5486mm |
| Machine length (without draw bar) | 5058mm | 5225mm |
| Max. lifting height of blade | 1010mm | 1010mm |
| Max. digging depth of blade | 520mm | 485mm |
| Digging angle of blade | 55°±3° | 55°±3° |
| Blade width | 3400/3388mm Semi-U/straight-tilt |
4150mm |
| Blade height | 1200/1149mm Semi-U/straight tilt |
977mm |
| Width from end of left track shoe to end of right track shoe (standard) |
2390mm | 2590mm |
| Min turning radius | 3745/3600mm Semi-U/straight tilt |
3895mm |

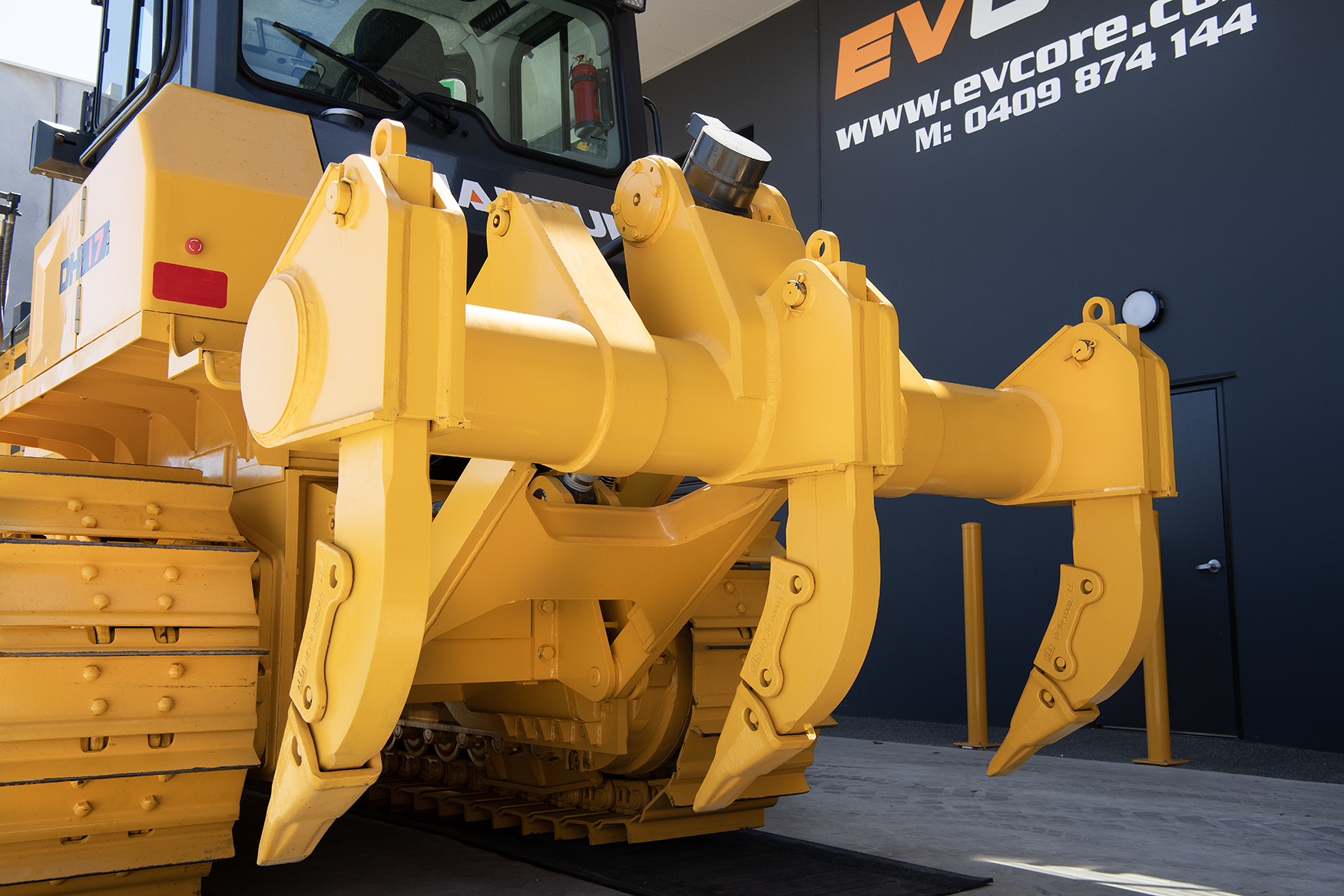

RIPPER (THREE-SHANK RIPPER :1493KG)
| Max. ripping depth | 475mm |
| Max. lifting height | 570mm |
| Ripper length (at deepest ripping) | 1809mm |
| Ripper length (at highest ripping) | 1671mm |
| Departure angle (at highest lifting) | 2082mm |
| Tilt angle(at highest point) | 32.1° |
| Ripping width | 1900mm |
| Distance between ripper teeth | 950mm |
ENQUIRE NOW
Give us a call or drop in a line by filling out the form below.
Other Products
-

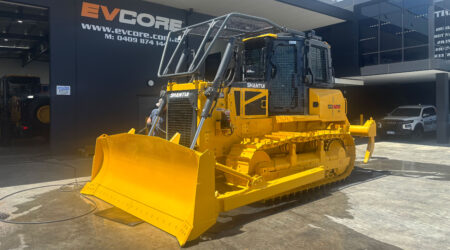

SD17 BULLDOZER
$13.00 Add to cart -

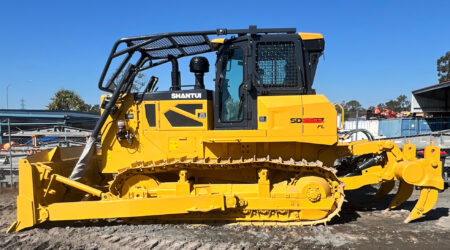

SD26 BULLDOZER
$12.00 Add to cart -

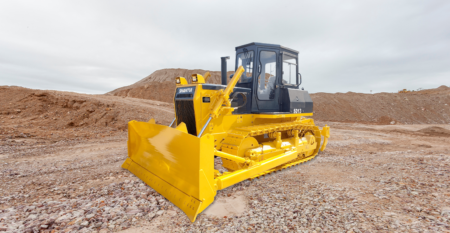

SD13 BULLDOZER
$14.00 Add to cart -
DH08 BULLDOZER
$8.00 Add to cart -

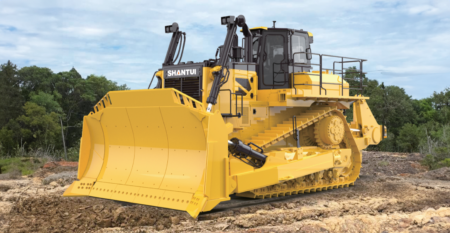

DH80 BULLDOZER
$1.00 Add to cart -
DH24 BULLDOZER
$3.00 Add to cart -
DH13 BULLDOZER
$6.00 Add to cart -
DH10 BULLDOZER
$7.00 Add to cart -
DH16 BULLDOZER
$5.00 Add to cart -

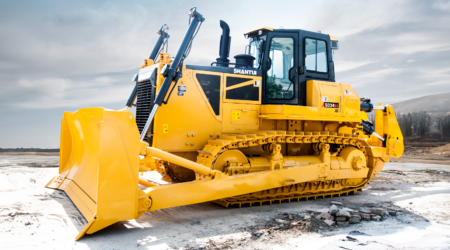

SD34 BULLDOZER
