DH16 BULLDOZER
Overall Weight
XL: 17,730 Kg | LGP: 19,690 Kg
Engine Model
Weichai WP7G207E304
Engine Power
152kW(204hp) @ 1800
CLOSE
REQUEST QUOTE
DH16 BULLDOZER
Overall Weight
XL: 17,730 Kg | LGP: 19,690 Kg
Engine Model
Weichai WP7G207E304
Engine Power
152kW(204hp) @ 1800

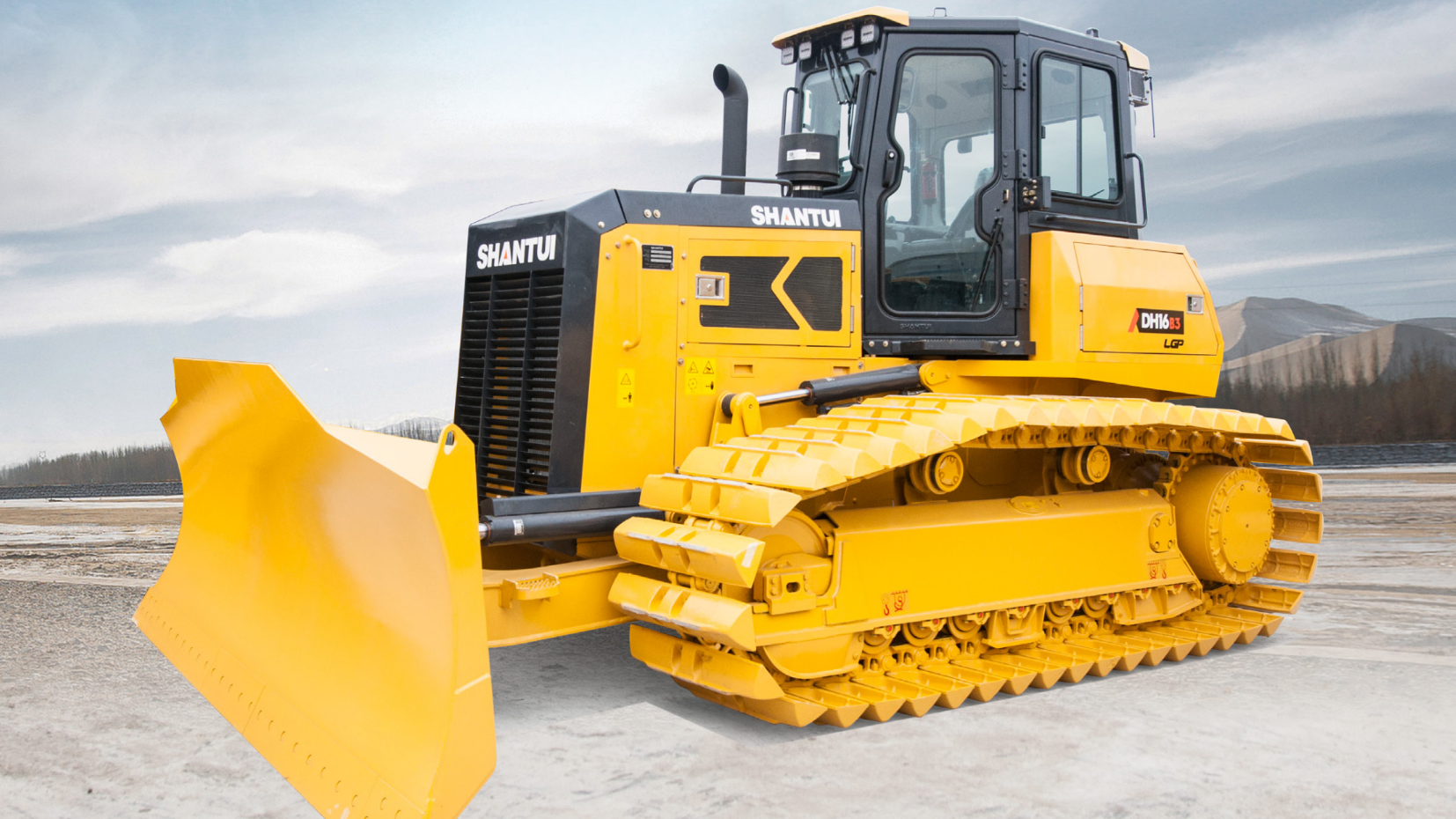

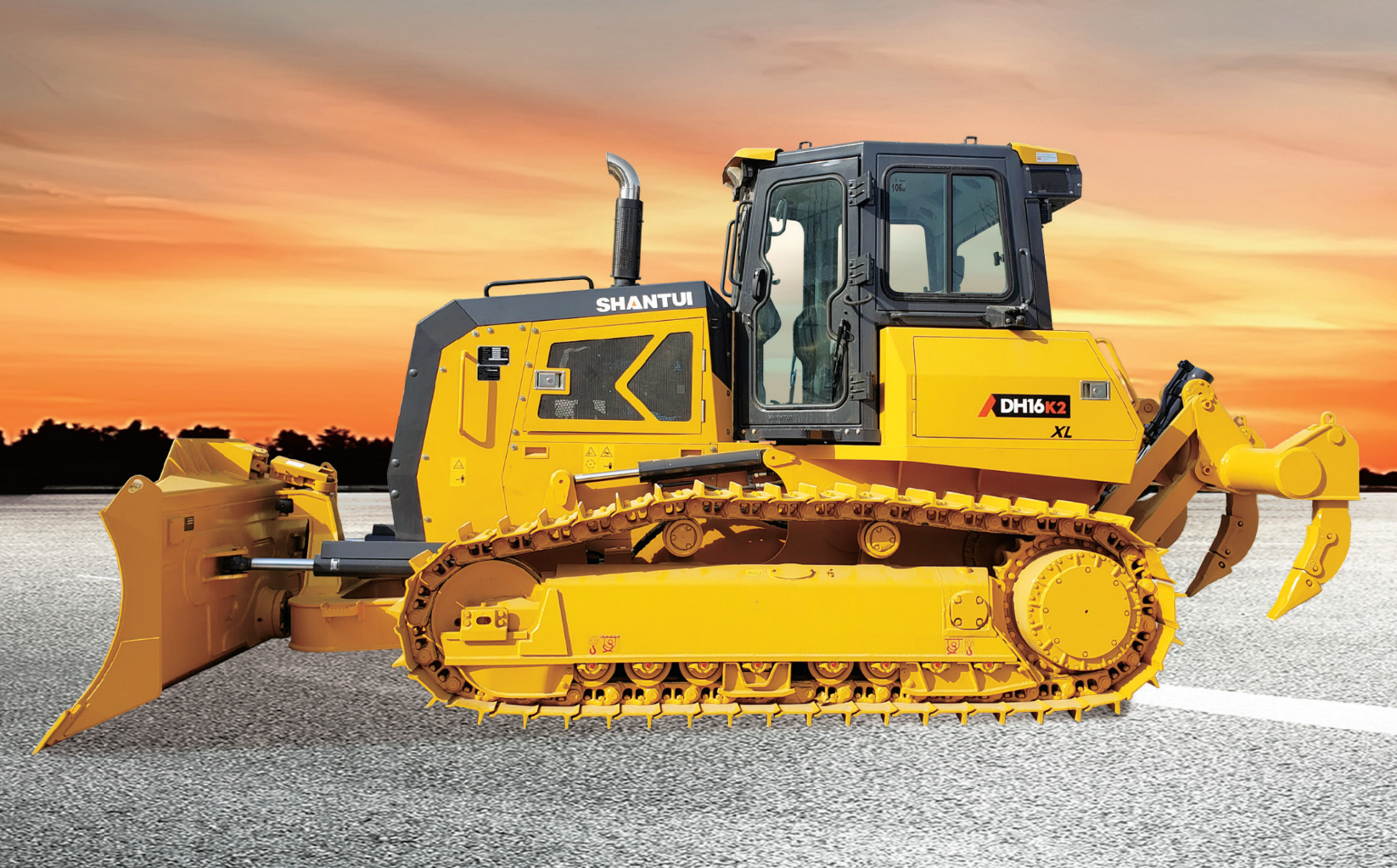

The Shantui DH16 Bulldozer is designed to deliver exceptional performance, versatility, and efficiency for a wide range of construction and excavation projects. Powered by the robust Weichai WP7G207E304 engine, this Bulldozer offers a rated power output of 140kW(188hp), ensuring high productivity and reliability in demanding environments.
The DH16 features an advanced system that provides precise control and smooth operation, making it ideal for intricate digging and loading tasks. Its reinforced boom and arm are built to withstand heavy loads and tough conditions, ensuring long-term durability. The Bulldozer’s rugged undercarriage offers excellent stability and traction, allowing it to perform optimally on various terrains.
Operator comfort is a top priority in the DH16, with a spacious, ergonomically designed cab that provides superior visibility and reduces noise levels. The intuitive control system and multifunctional display enhance operator efficiency, making complex tasks simpler and more manageable.
Engineered for sustainability, the DH16 meets the latest emission standards, minimizing its environmental footprint. Its impressive fuel efficiency and easy maintenance further contribute to reduced operating costs. Whether for construction, landscaping, or utility work, the Shantui DH16 Bulldozer is a reliable choice for superior performance and operational excellence.
Discover the perfect balance of power, precision, and efficiency with the Shantui DH16 Bulldozer, built to meet and exceed your project requirements.
ENGINE
| Engine | Weichai WD10 |
| Emission | Tier II |
| Rated revolution | 1800rpm |
| Gross power | 140 kW(188hp) |
| Net power | 127 kW(170hp) |
| Number of cylinder-bore × stroke |
6-126mm*130mm |
| Displacement | 9.7L |
| Max. torque | 900Nm/1400-160000rpm |
| Min. fuel consumption | – |
| Cooling system | Mechanic fan |
DRIVE SYSTEM
| Drive system | Independent dual-circuit electric control hydrostatic drive, intelligent matching of speed load, “stepless” variable speed, mono-lever control of travel, speed and steering; steering with load, pivot steering, work flexibly, high efficiency, easy for maintenance |
| System overflow pressure | 44500 kPa |
| Traveling speed- Forward |
0~10km/h |
| Traveling speed- Backward |
0~10km/h |
| Max. theoretical traction force | 288.8kN |
| Steering | Independent drive of track at both sides to ensure the full power output for pivot steering and steering with load |
| Brake | Regular closed multi-disk brake |
| Final drive | Primary spur gear + primary planetary reduction |
CHASSIS SYSTEM
| Chassis System | XL | LGP |
| Type | Pivot, equalizing beam suspended type, semirigid structure | |
| Track shoe type | Single grouser | |
| Track gauge | 2040mm | 2350mm |
| Width of track shoe | 560mm | 850mm |
| Track grounding length | 3075mm | 3075mm |
| Track grounding area | 34440cm² | 52275cm² |
| Number of track shoe | 43 pcs/side | 43 pcs/side |
| Grounding pressure (standard configuration) |
52kPa | 35.6kPa |
| Number of carrier roller | 2 pcs/side | 2 pcs/side |
| Number of track roller | 8pcs/side | 8pcs/side |
| Pitch | 203mm | 203mm |
REFILL CAPACITY
| Refill | XL | LGP |
| Fuel capacity | 432L | 432L |
| Coolant liquid capacity | 22L | 22L |
| Engine oil capacity | 24L | 24L |
| Hydraulic oil tank | 165L | 165L |
| Final drive | 38L/side | 38L/side |
OPERATING WEIGHT
| Operating Weight | XL | LGP |
| Standard | 17622kg | 18933kg |
| Standard | 19176kg | – |
BLADE
| Blade | XL | LGP |
| Blade type | PAT | PAT |
| Blade capacity | 3.22m³ | 4.01m³ |
DIMENSION
| Dimension | XL | LGP |
| Machine height (without ROPS) | 3275mm | 3275mm |
| Track grouser height | 65mm | 65mm |
| Ground clearance | 370mm | 370mm |
| Machine length (with draw bar) | 5782mm | 5782mm |
| Machine length (with ripper) | 6998mm | – |
| Max. lifting height of blade | 1028mm | 1028mm |
| Max. digging depth of blade | 642mm | 642mm |
| Digging angle of blade | 55°±3° | 55°±3° |
| Blade width | 3300mm | 4011mm |
| Blade height | 1388mm | 1388mm |
| Width from end of left track shoe to end of right track shoe (standard) |
2600mm | 2600mm |
| Min turning radius | 3879mm | 4012mm |
RIPPER
| Ripper | XL | LGP |
| Type | Three-shank ripper | – |
| Weight | 1035kg | – |
| Max. ripping depth | 600mm | – |
| Max. lifting height | 500mm | – |
| Ripper length (at deepest ripping) | 1530mm | – |
| Ripper length (at highest ripping) | 1230mm | – |
| Width | 1759mm | – |
| Tilt angle(at highest point) | 43° | – |
| Ripping width | 1696mm | – |
| Distance between ripper teeth | 800mm | – |
