DH13 BULLDOZER
$6.00
Overall Weight
XL: 13,400 Kg | LGP:14,000 Kg
Engine Model
Cummins QSB6.7
Engine Power
116kW(155hp)
DOWNLOAD PRODUCT PDF
CLOSE
DH13 BULLDOZER
Overall Weight
XL: 13,400 Kg | LGP:14,000 Kg
Engine Model
Cummins QSB6.7
Engine Power
116kW(155hp)
CLOSE
REQUEST QUOTE
DH13 BULLDOZER
Overall Weight
XL: 13,400 Kg | LGP:14,000 Kg
Engine Model
Cummins QSB6.7
Engine Power
116kW(155hp)

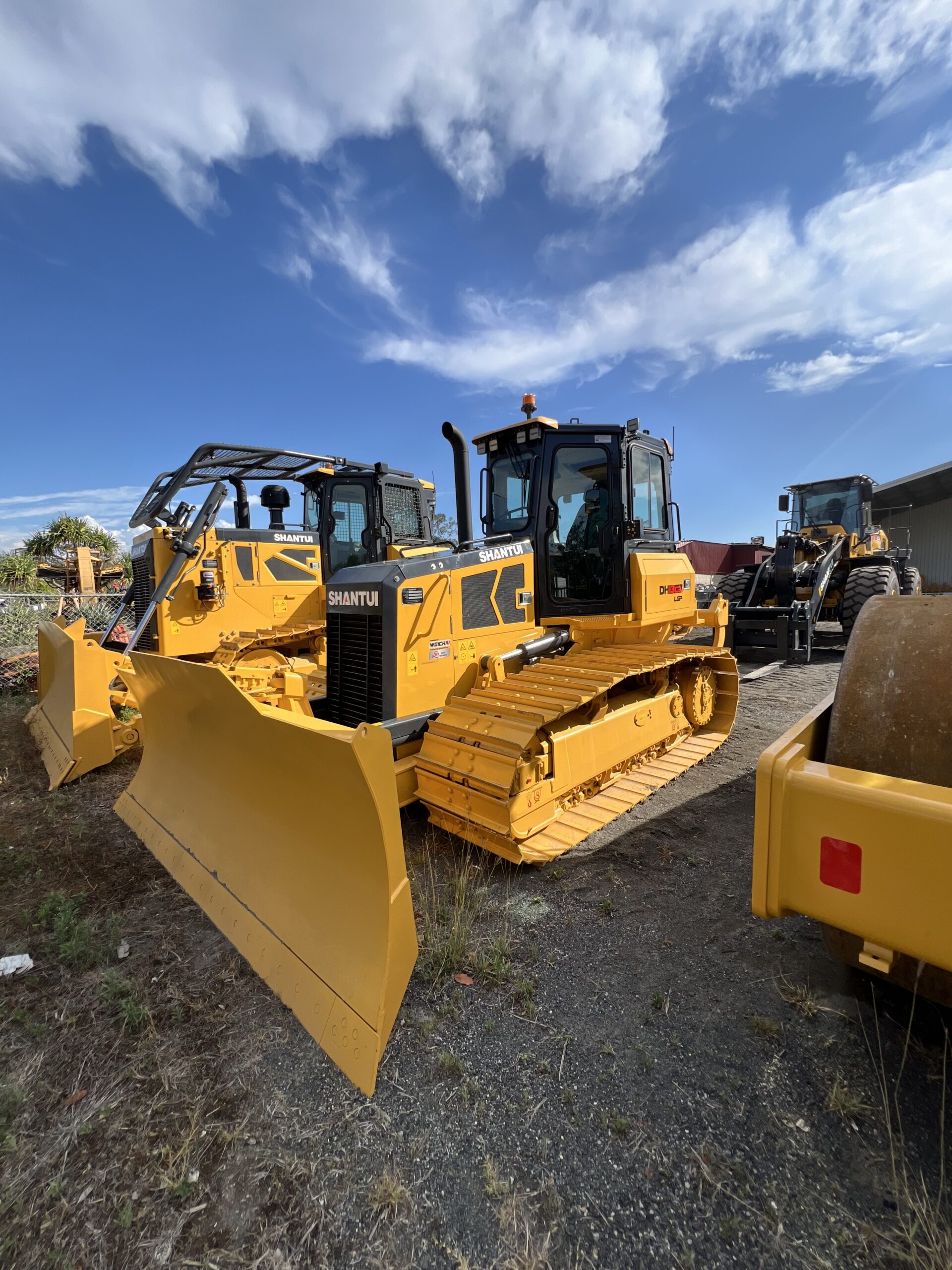

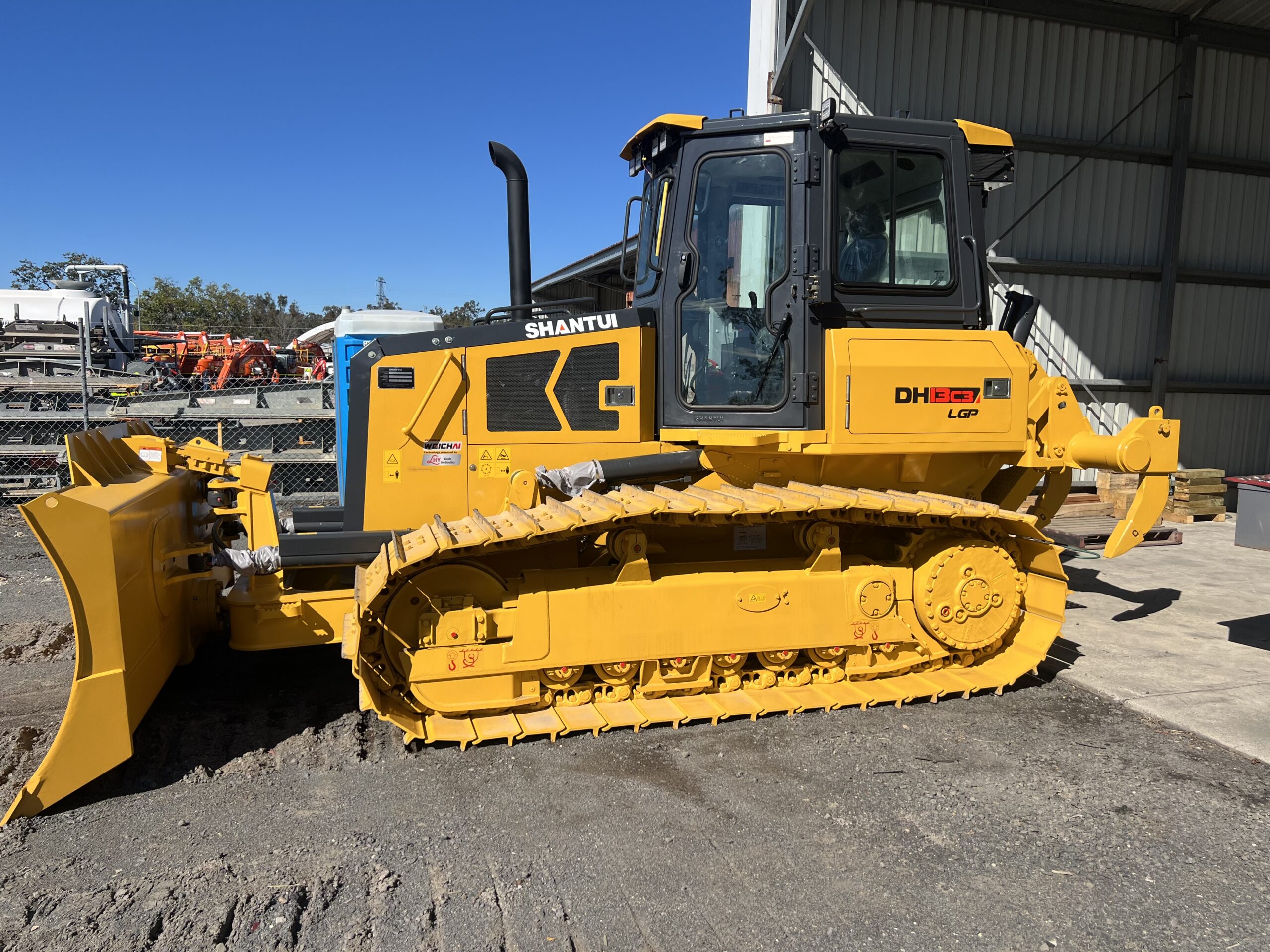

Overview of the Shantui DH13 Dozer
The Shantui DH13 Crawler Dozer combines raw power and advanced technology to deliver superior performance in demanding construction and earthmoving applications. With a Cummins QSB6.7 engine providing 116 kW (155 hp) of gross power, the DH13 offers excellent fuel efficiency and torque. The dozer is equipped with an independent dual-circuit hydrostatic drive system that ensures intelligent load-speed matching, making it highly efficient for various tasks, from grading to heavy ripping.
Key Features:
- High-Performance Engine: Powered by the Cummins QSB6.7 engine, delivering 116 kW (155 hp) gross power and 622 Nm (459 lb.-ft.) of torque for optimal performance.
- Hydrostatic Drive System: Features independent dual-circuit electric control for efficient power distribution, with a max theoretical traction force of 200 kN (44,992 lb.).
- Advanced Chassis: Available in XL and LGP configurations, offering low ground pressure for better stability and traction on soft terrain.
- Versatile Blade Capacity: The standard Power Angle Tilt (PAT) blade has a capacity of 3.07 m³ (4.0 cu. yd.) for the XL and 3.39 m³ (4.4 cu. yd.) for the LGP version.
- Ripper Option: The optional three-shank ripper is designed for maximum ripping depth of 500 mm (20 in.), making it ideal for tough soil conditions.
Technical Specifications:
- Engine: Cummins QSB6.7, 116 kW (155 hp) gross power
- Hydrostatic Drive: Independent dual-circuit system with intelligent load-speed matching
- Track Shoe Width: 560 mm (22 in.) for XL, 760 mm (30 in.)/700 mm (27.6 in.) for LGP
- Blade Capacity: 3.07 m³ (4.0 cu. yd.) for XL, 3.39 m³ (4.4 cu. yd.) for LGP
- Fuel Capacity: 275 L (72.6 gal.)
- Operating Weight: 13,400 kg (29,542 lb.) for XL, 14,000 kg (30,865 lb.) for LGP
- Machine Length: 5,190 mm (194 in.)
- Ground Clearance: 360 mm (14.2 in.)
- Max. Lifting Height of Blade: 950 mm (37.4 in.)
- Max. Digging Depth of Blade: 460 mm (18.1 in.)
- Max Blade Turning Angle: 25°
- Ripper: Three-shank ripper, 500 mm (20 in.) max ripping depth
Why Choose the Shantui DH13 Dozer?
The Shantui DH13 is designed to meet the tough demands of various heavy-duty applications. Its robust engine and hydrostatic drive system provide unmatched power and efficiency. The dozer’s low ground pressure, high blade capacity, and optional ripper make it a versatile choice for any terrain and task, from earthmoving to grading and ripping.
About Evcore
Evcore is the exclusive dealer for Shantui Construction Machinery in Australia, offering comprehensive parts and service support for all our machines. For more information on the Shantui DH13 Dozer, contact us today.
Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
Email: sales@evcore.com.au
Website: shantuiaustralia.com.au
ENGINE
| Engine | Cummins QSB6.7 |
| Emission | Stage III |
| Rated revolution | 2000rpm |
| Gross power | 116kW (155hp) |
| Net power | 103kW (138hp) |
| Displacement | 6.7L (409cu.in) |
| Max. torque | 622Nm (459lb.-ft.)/1500rpm |
| Min. fuel consumption | 195 g/kw.h |
DRIVE SYSTEM
| Drive system | Independent dual-circuit electric control hydrostatic drive, intelligent matching of speed-load |
| System overflow pressure | 43500KPa(6309psi) |
| Traveling speed- Forward |
0~10km/h(5.6mph) |
| Traveling speed- Backward |
0~10km/h(5.6mph) |
| Max. theoretical traction force | 200kN(44992lb.) |
| Steering | Independent drive of track at both sides to ensure the full power output for pivot steering and steering with load |
| Brake | Regular closed multi-disk brake |
| Final drive | Primary spur gear + primary planetary reduction |

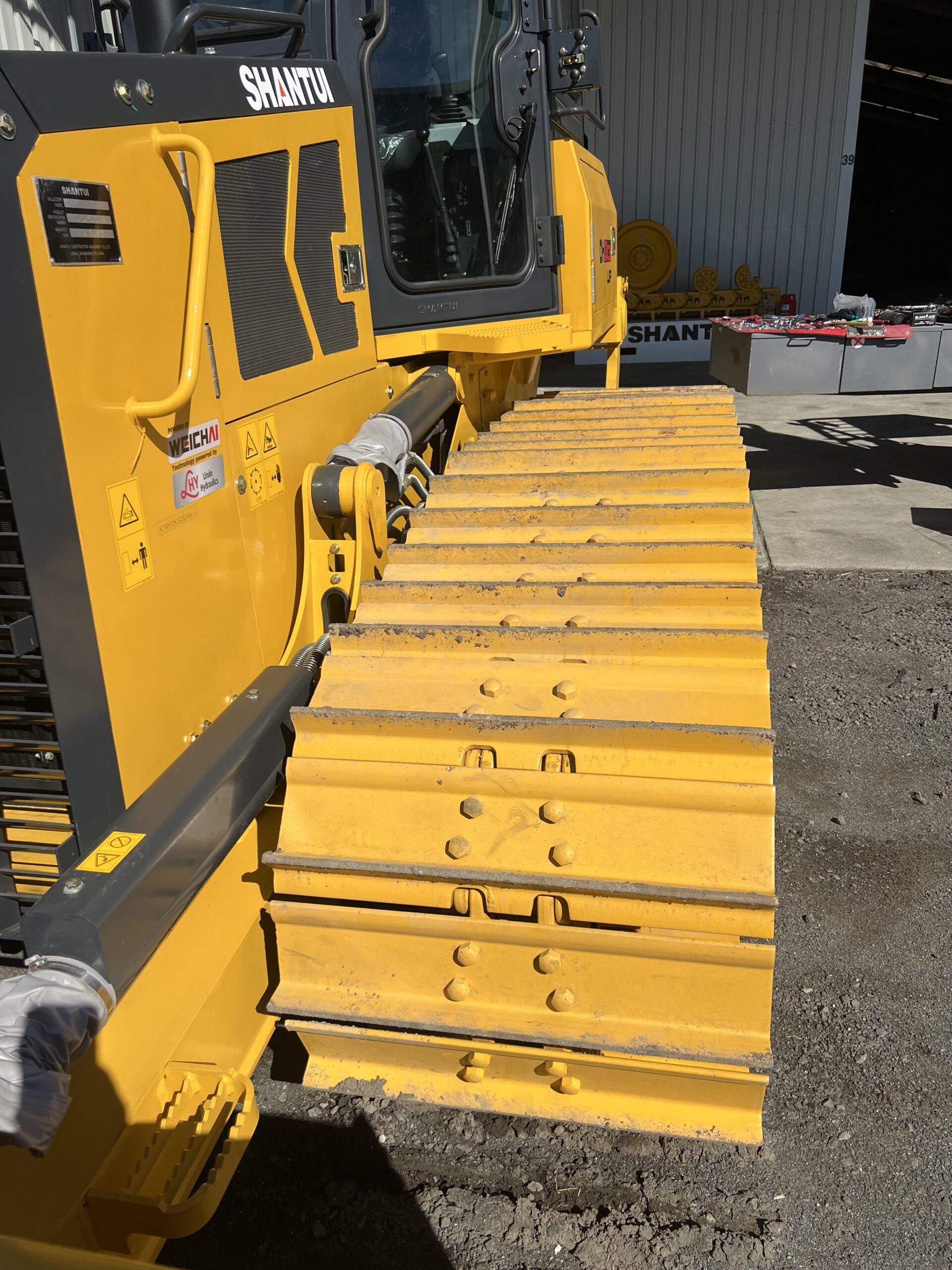

CHASSIS SYSTEM
| Chassis System | XL | LGP |
| Type | Semi-rigid type suspension |
Semi-rigid type suspension |
| Track shoe type | Single grouser | Single grouser |
| Track gauge | 1780mm(70in.) | 2000mm(79in.) |
| Width of track shoe | 560mm(22in. | 760mm(30in.)/700mm(27.6in.) |
| Track grounding length | 2640mm(104in.) | 2640mm(104in.) |
| Track grounding area | 29568cm²(4583sq.in.) | 40128cm²(6220sq. in.)/36960cm²(5729sq.in.) |
| Number of track shoe | 40 pcs/single side | 40 pcs/single side |
| Grounding pressure (standard configuration) |
45.3kPa(6.57psi) | 34.9kPa(5.06psi) |
| Number of carrier roller | 2pcs/single side | 2pcs/single side |
| Number of track roller | 7pcs/single side | 7pcs/single side |
| Pitch | 190mm(7.48in.) | 190mm(7.48in.) |
REFILL CAPACITY
| Fuel capacity | 275L(72.6gal.) |
| Coolant liquid capacity | 26L(6.9gal.) |
| Engine oil capacity | 16.5L(4.4gal.) |
| Hydraulic oil tank | 66L(17.4gal.) |
| Final drive | 19L(5.2gal.)/Single side |
OPERATING WEIGHT
| Operating Weight | XL | LGP |
| Operating weight (Traction frame) | 13400kg (29542lb.) | 14000kg (30865lb.) |
| Operating weight (Ripper) | 14600kg (32187lb.) | – |
| Operating weight (Winch) | – | 15000kg (33069lb.) |

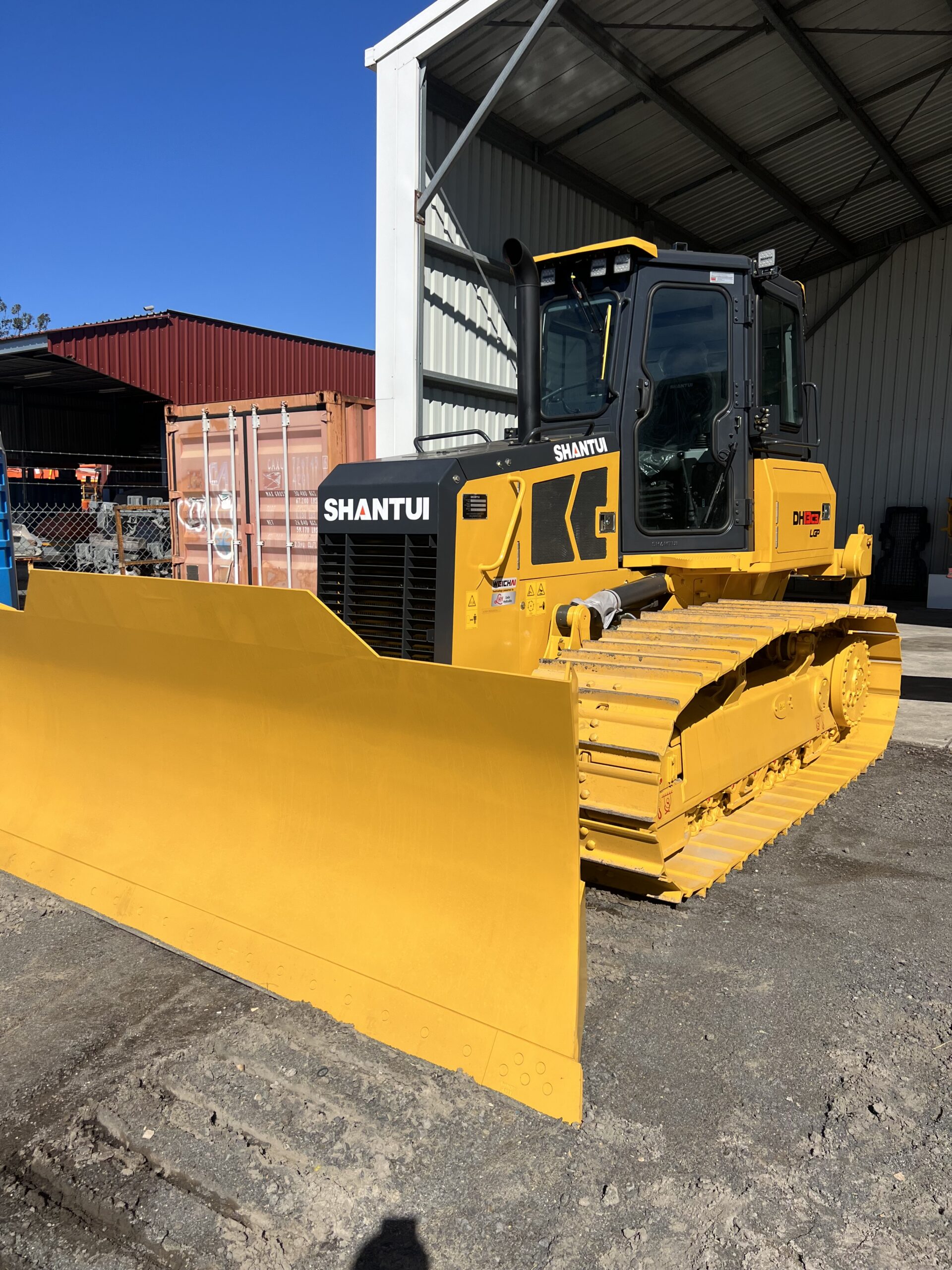

BLADE
| Blade | XL | LGP |
| Blade type | PAT | PAT |
| Blade capacity | 3.07 m³(4.0cu.yd.) | 3.39m³(4.4cu.yd.) |
DIMENSION
| Dimension | XL | LGP |
| Machine height | 2988mm(118in.) | 2988mm(118in.) |
| Track grouser height | 50mm(2.0in.) | 50mm(2.0in.) |
| Ground clearance | 360mm(14.2in.) | 360mm(14.2in.) |
| Machine length (with draw bar) | 5190mm(194in.) | 5190mm(194in.) |
| Max. lifting height of blade | 950mm(37.4in.) | 950mm(37.4in.) |
| Max. digging depth of blade | 460mm(18.1in.) | 460mm(18.1in.) |
| Digging angle of blade | 55°±3°(deg.) | 55°±3°(deg.) |
| Blade width | 3060mm(120.5in.) | 3530mm(139in.) |
| Blade height | 1300mm(51.2in.) | 1300mm(51.2in.) |
| Max blade turning angle on ground | 25°(deg.) | 25°(deg.) |
| Machine length when blade in max turning angle |
2783mm(110in.) | 3200mm(126in.) |
| Max tilt height of blade | 460mm(18in.) | 510mm(20in.) |
| Vertical distance from left track shoe outside to blade outside when blade in max turning angle |
16mm(0.6in.) | 14mm(0.6in.) |
| Track shoes outside width | 2340mm(92in.) | 2760mm(109in) |
| Vertical distance from right track shoe outside to blade outside when blade in max turning angle |
427mm(17in.) | 424mm(14in.) |
| Min turning radius | 3324mm(131in.) | 3400mm(134in. |
RIPPER
| Type | Three-shank ripper |
| Weight | 1035kg(2282lb.) |
| Max. ripping depth | 500mm(20in.) |
| Max. lifting height | 600 mm(23.6 in.) |
| Ripper length (at deepest ripping) | 1600mm(63in.) |
| Ripper length (at highest ripping) | 1230mm(48in.) |
| Ripper width | 1759mm(69in.) |
| Tilt angle (at highest point) | 28°(deg.) |
| Ripping width | 1696mm(66.7in.) |
| Distance between ripper teeth | 800mm(31.5in.) |
