  • Bulldozer DH10

DH10 BULLDOZER

$7.00

Overall Weight

XL:9,200kg | LGP:9,500kg‍

Engine Model

Cummins QSF3.8

Engine Power

86kW(115hp)

DOWNLOAD PRODUCT PDF
CLOSE

DOWNLOAD BROCHURE

DH10 BULLDOZER

Featured Image

Overall Weight

XL:9,200kg | LGP:9,500kg‍

Engine Model

Cummins QSF3.8

Engine Power

86kW(115hp)

    Categories: ,
    Product Info
    Product Description
    Videos

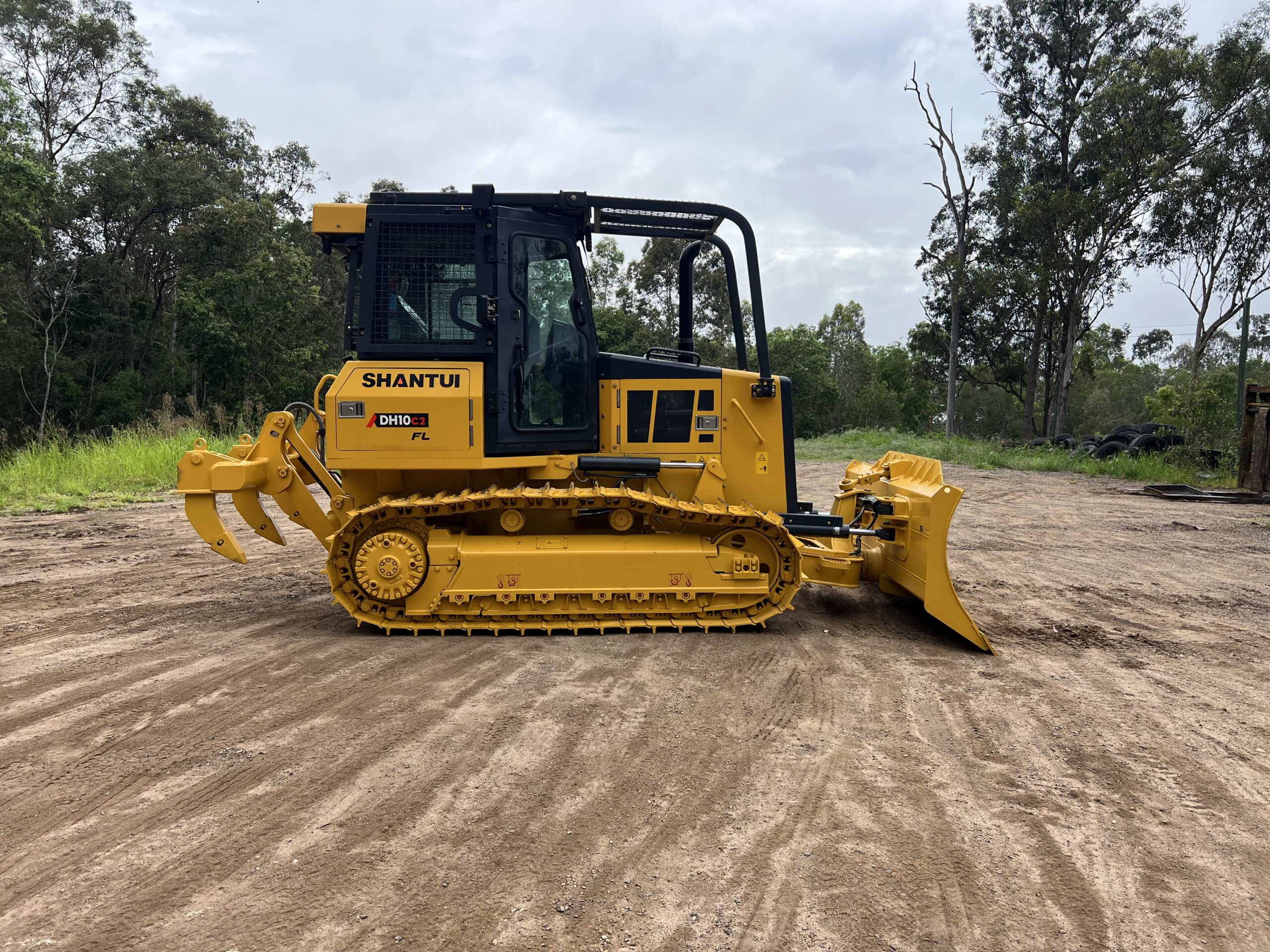

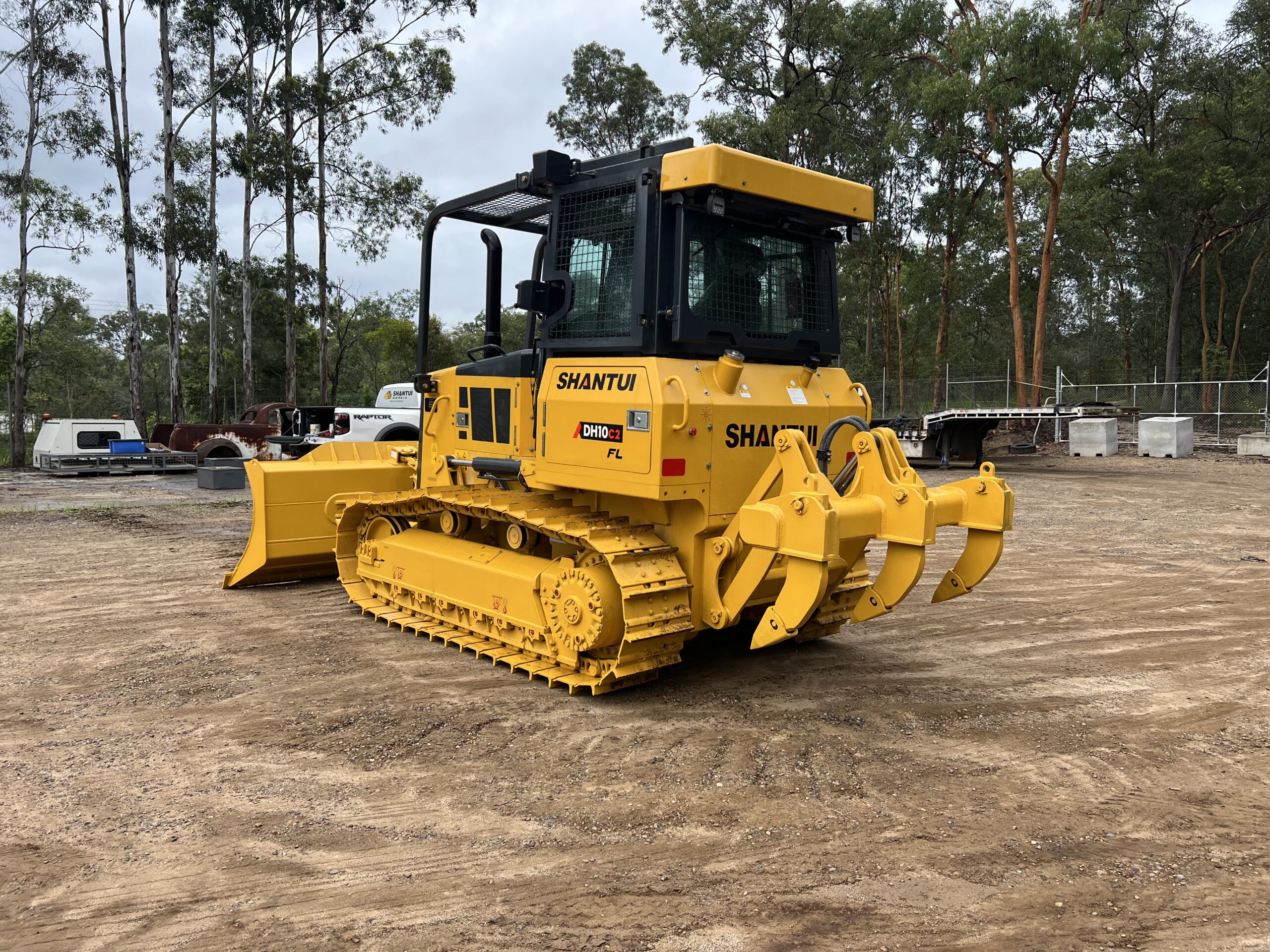

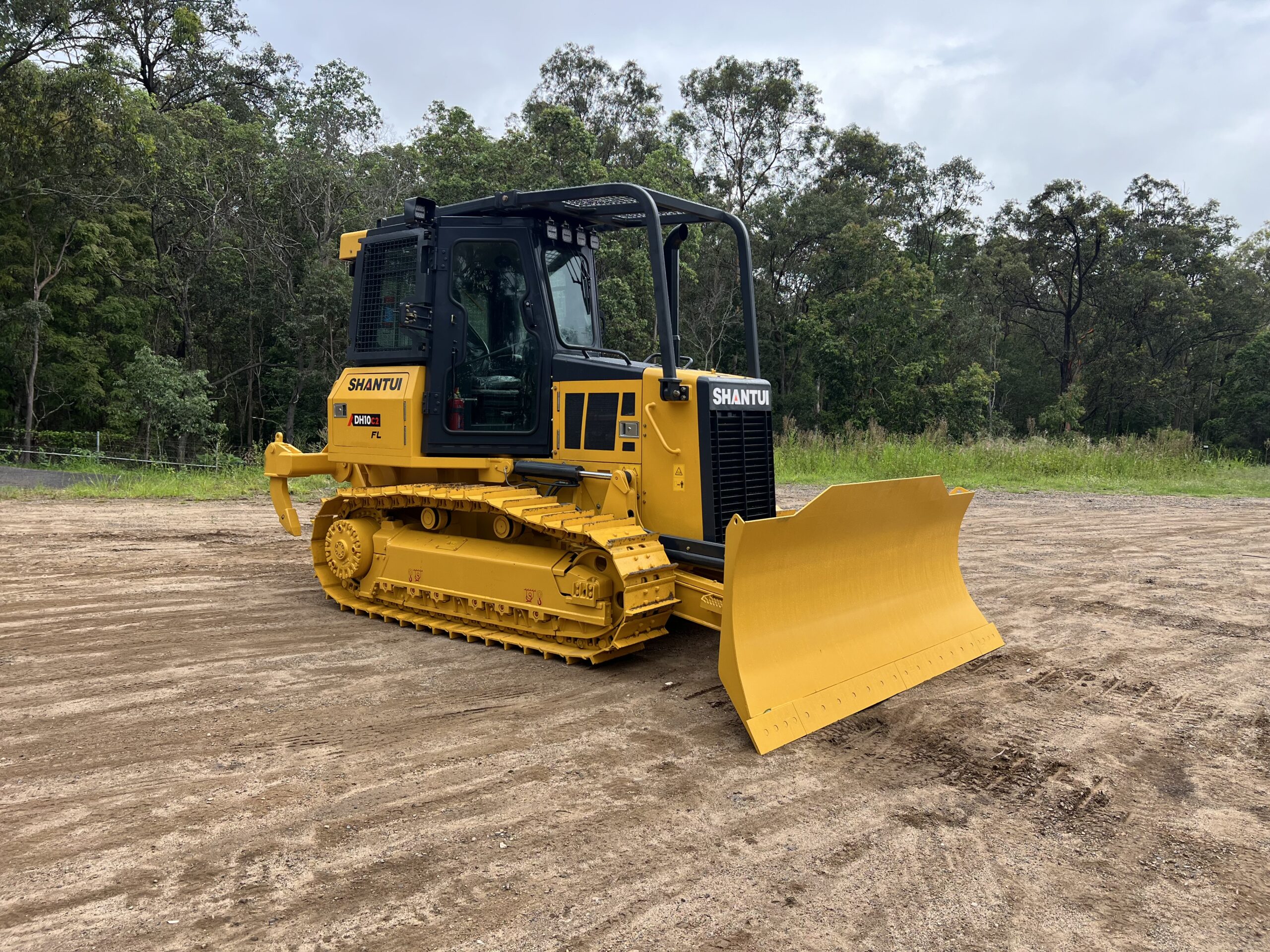

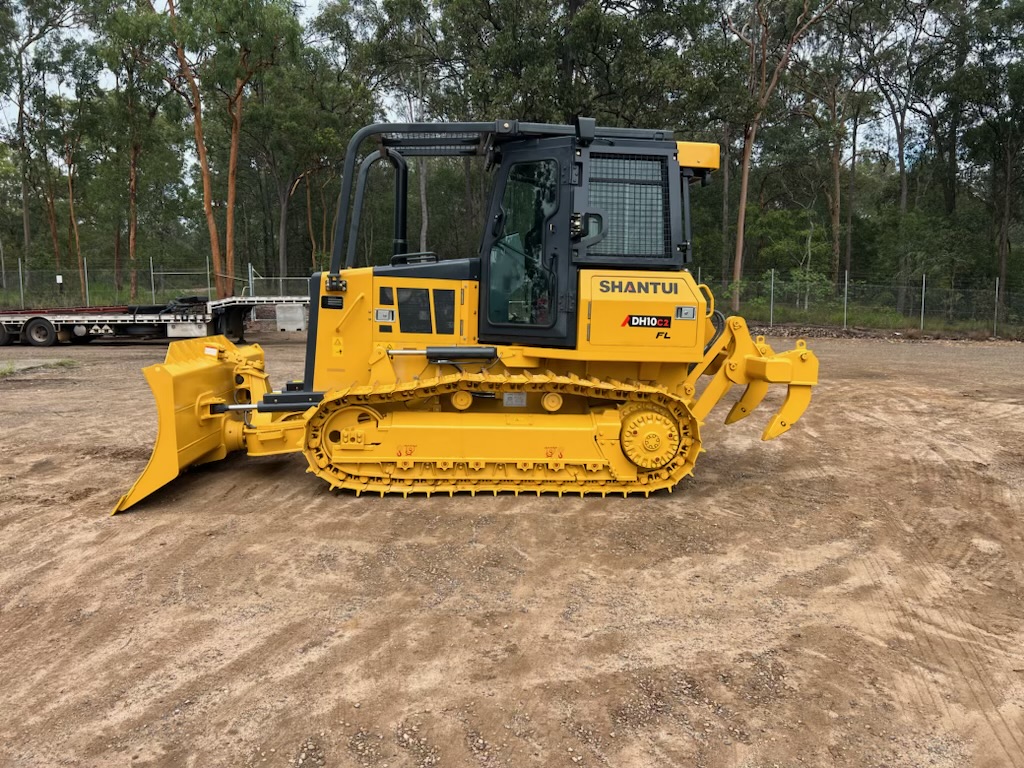

    Overview of the Shantui DH10 Dozer

    The Shantui DH10 is a highly efficient and durable crawler dozer designed to excel in a variety of construction, mining, and earthmoving applications. Powered by a Cummins QSF3.8 engine, the DH10 delivers 86 kW (115 hp) of gross power, making it ideal for tough terrain and heavy workloads. Its advanced dual-circuit hydrostatic drive system ensures intelligent load matching for optimal performance, while the rugged chassis system and large tracks offer excellent ground clearance and stability.

    Key Features:

    • Reliable Engine: Cummins QSF3.8 engine with 86 kW (115 hp) power output, providing excellent fuel efficiency and durability.
    • Hydrostatic Drive System: Dual-circuit electric control system with intelligent load matching for efficient power use.
    • Durable Chassis System: Available in XL and LGP configurations, with tracks optimized for low ground pressure, offering superior stability and traction.
    • Impressive Blade Capacity: The standard PAT (Power Angle Tilt) blade comes in two configurations, offering 2.32 m³ (3.03 cu. yd.) capacity for XL and 2.6 m³ (3.4 cu. yd.) capacity for LGP.
    • Excellent Maneuverability: The dozer features a maximum traveling speed of 9 km/h (5.6 mph) in both forward and backward directions.

    Technical Specifications:

    • Engine: Cummins QSF3.8, 86 kW (115 hp) gross power
    • Hydrostatic Drive: Dual-circuit electric control system
    • Track Shoe Width: 460 mm (18 in.) for XL, 630 mm (25 in.) for LGP
    • Blade Capacity: 2.32 m³ (3.03 cu. yd.) for XL, 2.6 m³ (3.4 cu. yd.) for LGP
    • Fuel Capacity: 197 L (52 gal.)
    • Operating Weight: 9,200 kg (20,283 lb.) for XL, 9,500 kg (20,944 lb.) for LGP
    • Machine Length: 4,442 mm (175 in.)
    • Ground Clearance: 390 mm (15.4 in.)
    • Max. Lifting Height of Blade: 900 mm (35 in.)
    • Max. Digging Depth of Blade: 450 mm (17.7 in.)
    • Max Blade Turning Angle: 25°

    Why Choose the Shantui DH10 Dozer?

    The Shantui DH10 is engineered to perform reliably in challenging environments. Its advanced hydrostatic drive system and durable chassis make it an excellent choice for jobs requiring powerful traction and efficient blade operation. With configurations that reduce ground pressure and increase efficiency, the DH10 is ideal for applications ranging from construction site preparation to heavy earthmoving operations.

    About Evcore

    Evcore is the exclusive dealer for Shantui Construction Machinery in Australia, offering comprehensive parts and service support for all our machines. For more information on the Shantui DH10 Dozer, contact us today.

    Phone: 0400 459 097 (SA) | 0409 874 144 (WA)
    Email: sales@evcore.com.au
    Website: shantuiaustralia.com.au

    ENGINE
    Engine Cummins QSF3.8
    Emission US EPA Tier3, EU Stage IIIA
    Rated revolution 2200rpm
    Gross power 86kW(115hp)
    Net power 80kW(107hp)
    Displacement 3.8L(232cu.in)
    Max. torque 470Nm(347lb.-ft.)/1320rpm
    DRIVE SYSTEM
    Drive system Dual-circuit electric control hydrostatic drive, intelligent
    matching of load changes
    System overflow pressure 42500KPa(6162.5psi)
    Traveling
    speed- Forward    		 0~9 km/h(5.6 mph)
    Traveling
    speed- Backward    		 0~9 km/h(5.6 mph)
    Max. theoretical traction force 155.2kN(34914lb.)
    Steering Hydraulic motor differential steering, pivot steering,
    steering with load
    Brake Regular closed brake
    Final drive Two-stage planetary gear reduction
    CHASSIS SYSTEM
    Chassis System XL LGP
    Type Rigid type suspension Rigid type suspension
    Track shoe type Single grouser dry type Single grouser dry type
    Track gauge 1650mm(65in.) 1790mm(70in.)
    Width of track shoe 460mm(18in.) 630mm(25in.)
    Track grounding length 2360mm(93in.) 2360mm(93in.)
    Track grounding area 21712cm²(3365sq.in.) 29736cm²(4929sq.in.)
    Number of track shoe 39pcs/single side 39pcs/single side
    Grounding pressure
    (standard configuration)    		 43.9kPa(6.21psi) 33.6kPa(4.81psi)
    Number of carrier roller 2pcs/single side 2pcs/single side
    Number of track roller 6pcs/single side 6pcs/single side
    Pitch 171.45mm(6.75in.) 171.45mm(6.75in.)
    Min. turning radius – –
    REFILL CAPACITY
    Fuel capacity 197L(52gal.)
    Coolant liquid capacity 19L(5.0gal.)
    Engine oil capacity 15L(4gal.)
    Hydraulic oil tank 53L(14gal.)
    Final drive 5L(1.32gal.)/single side
    OPERATING WEIGHT
    Operating Weight XL LGP
    With Cabin+ draw bar 9200kg(20283lb.) 9500kg(20944b.)
    Cabin+ ripper 9917kg(21863lb.) 10217kg(22525lb.)
    BLADE
    Blade XL LGP
    Blade type PAT PAT
    Blade capacity 2.32m³(3.03cu.yd.) 2.6m³(3.4cu.yd.)
    DIMENSION
    Dimension XL LGP
    Machine height (without ROPS) 2885mm(114in.) 2885mm(114in.)
    Track grouser height 50mm(2.0in.) 50mm(2.0in.
    Ground clearance 390mm(15.4in.) 390mm(15.4in.)
    Machine length (with draw bar) 4442mm(175in.) 4442mm(175in.)
    Machine length (without draw bar) – –
    Max. lifting height of blade 900mm(35in.) 900mm(35in.)
    Max. digging depth of blade 450mm(17.7in.) 450mm(17.7in.)
    Digging angle of blade 55°±3°(deg.) 55°±3°(deg.)
    Blade width 2860mm(113in.) 3200mm(126in.)
    Blade height 1151mm(45.3in.) 1151mm(45.3in.)
    Max blade turning angle on ground 25°(deg. 25°(deg.)
    Machine length when blade
    in max turning angle    		 2633mm(104in.) 2941mm(116in.)
    Max tilt height of blade 415mm(16in.) 458mm(18in.)
    Vertical distance from left track
    shoe outside to blade outside when
    blade in max turning angle    		 70mm(2.8in.) 70mm(2.8in.)
    Track shoes outside width 2110mm(83in.) 2420mm(95in.)
    Vertical distance from right track shoe
    outside to blade outside when blade in
    max turning angle    		 453mm(18in.) 453mm(18in.)
